- Page 1 VGA/Stereo Audio Matrix Switcher 8x8 USER MANUAL MVG88A PTN VGA/Stereo Audio Matrix Switcher 8x8 Version: MVG88A2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
VGA/Stereo Audio Matrix Switcher 8x8 Table of Contents 1. Introduction ....................... 1 1.1. Introduction of MVG88A ................... 1 1.2. Package Contents .................... 1 2. Features ........................1 3. Specification ......................1 4. Operations of the Control panel and the Remote Controller ........3 4.1. -
Page 4: Introduction

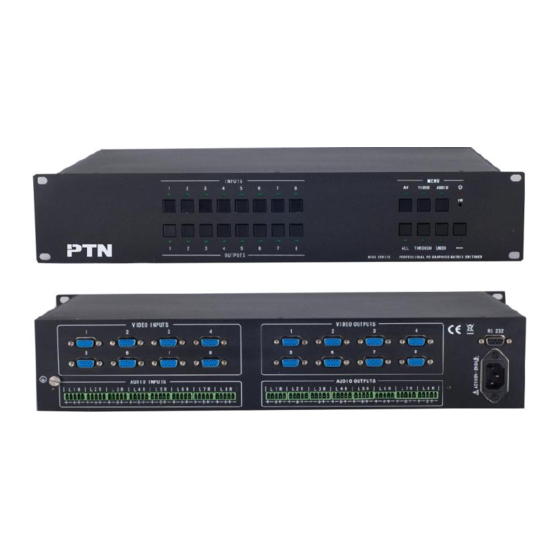

1. Introduction 1.1. Introduction of MVG88A MVG88A is an 8x8 VGA matrix switcher following with stereo audio, it supports audio follow and audio breakaway switching. With bandwidth up to 350MHz(-3db), it supports crosspoint switching. It shows a good application in broadcast room, television teaching room, commanding center etc. - Page 5 2 = TX, 3 = RX, 5 = Control Port D connector Configurations Front Panel IR Remote Default IR remote Buttons Control Options TCP/IP control by PTNET(PTN's programmable interface) General Power 100VAC ~ 240VAC, Power Supply 50/60Hz Consumption Temperature -20 ~ +70℃...
-
Page 6: Operations Of The Control Panel And The Remote Controller
Operation: Press buttons in this order “7”, “ALL”. Example2: To transfer all input signals to the corresponding output channels respectively. In another word, to switch to this status: 1->1, 2->2, 3->3, 4->4……8->8. Operation: Press buttons in this order “ALL”, “THROUGH”. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Usage Of The Remote Controller
Because the function buttons on the remote controller are the same with the ones on the front control panel, the remote controller shares the same control operation and command format with the control panel. Operations of the remote controller are showed as follows. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: External Connection
The outputs channels, from 0~9, and plusing “10+” for more. F4-2 Panel of the Remote Controller 5. External Connection 5.1. Introduction of the Input and Output Connectors ① ② ③ ④ ⑤ ⑥ F5-1 Rear panel PTN Electronics Limited www.PTN-electronics.com... -
Page 9: How To Connect With The Input And Output Terminals
If the RGB device doesn’t with VGA output terminals, please convert the signals with an RGB to VGA switcher for getting high quality VGA output effects. Please use the special VGA signal cord to connect the input and output devices and connect the 15-Pin HD connectors carefully. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Connection With Rs232 Communication Port
Therefore, as an anti-interference connection, it is mostly used in audio connection of special device. The unbalanced connection transmits signals only with a signal cord. Without PTN Electronics Limited www.PTN-electronics.com... -
Page 11: System Diagram
But if in a standard one, the converter must be used to switch the signals as the same, balanced or unbalanced. 6. System Diagram F6-1 MVG88A system connection PTN Electronics Limited www.PTN-electronics.com... -
Page 12: Communication Protocol And Command Codes
[x1] to the output channel [x2]. [x1] Transfer both the video and the audio signals from B[x2],[x3],[x4]. the input channel [x1] to the output channels [x2], [x3] and [x4]. Status[x1]. Inquire the input channel to the output channel [x1]. PTN Electronics Limited www.PTN-electronics.com... - Page 13 Example: “4$.” to switch off the output channel No.4. 9、Switch both video and audio signals synchronously: [x1] B[x2]. Example: “2B2,3,4.” to transfer signal from the input channel No.2 to the output channel No.2,3,4. 10、Inquire the input channel to the output channel [x]: Status[x]. PTN Electronics Limited www.PTN-electronics.com...
-
Page 14: Safety Operation Guide
5) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 6) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 15: Troubleshooting & Maintenance
7) If the Matrix cannot be controlled by the keys on the front panel, RS232 port or remote controller, the unit may has already been broken. Please send it to the dealer for fixing. PTN Electronics Limited www.PTN-electronics.com... -
Page 16: After-Sales Service
Damage caused by force majeure. Remarks: For any more questions or problems, please try to get help from your local distributor, or email PTN at support@PTN-electronics.com. PTN Electronics Limited www.PTN-electronics.com...
