Security Camera King OD-LX700IR50-W User Manual

Specification
OD-LX700IR50-W
Model
Pick up Element
1/3" Sony Super HAD II CCD / Effio-E DSP
Effective Picture Elements
NTSC:976(H)×494(V) PAL:976(H)x582(V)
(H×V)
Horizontal Resolution 700 TV Line
Minimum Illumination 0.01 Lux/F2.0
More than 52dB
S/N Ratio
Scanning System 2:1 interface
Synchronous System Internal, Negative sync.
Auto Electronic Shutter NTSC: 1/60s~1/100,000s, PAL: 1/50s~1/100,000s
0.45
Gama Characteristic
50 Feet (with￠5x 24 PCS Infrared LED
IR Distance
1Vpp, 75Ω
Video Output
Auto
Auto Gain Control
DC12V(+/-10%)/350mA
Power/Current
Lens Board Lens 3.6mm/F2.0
Dimension (mm) ￠94x 69(H)
Weight (g) 450
Storage Temperature -30~+60℃ RH95% MAX
Operating Temperature -10~+50℃ RH95% MAX

Packing List

No
Name
1.

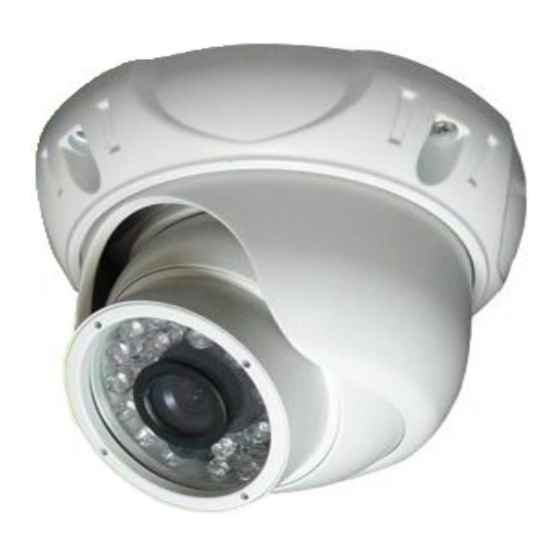

Vandalproof IR Dome Color Camera OD-LX700IR50-W
2.
OD-LX700IR50-W
User Guide
)
Franchiser：
Model Number
1
1
OD-LX700IR50-W Color
Vandalproof IR Dome Color Camera
Notes:
Before providing power for the
camera, please read this User Guide in
detail!
Do not attempt to disassemble the camera.
If the camera can not work, please contact
local franchiser or our company.
