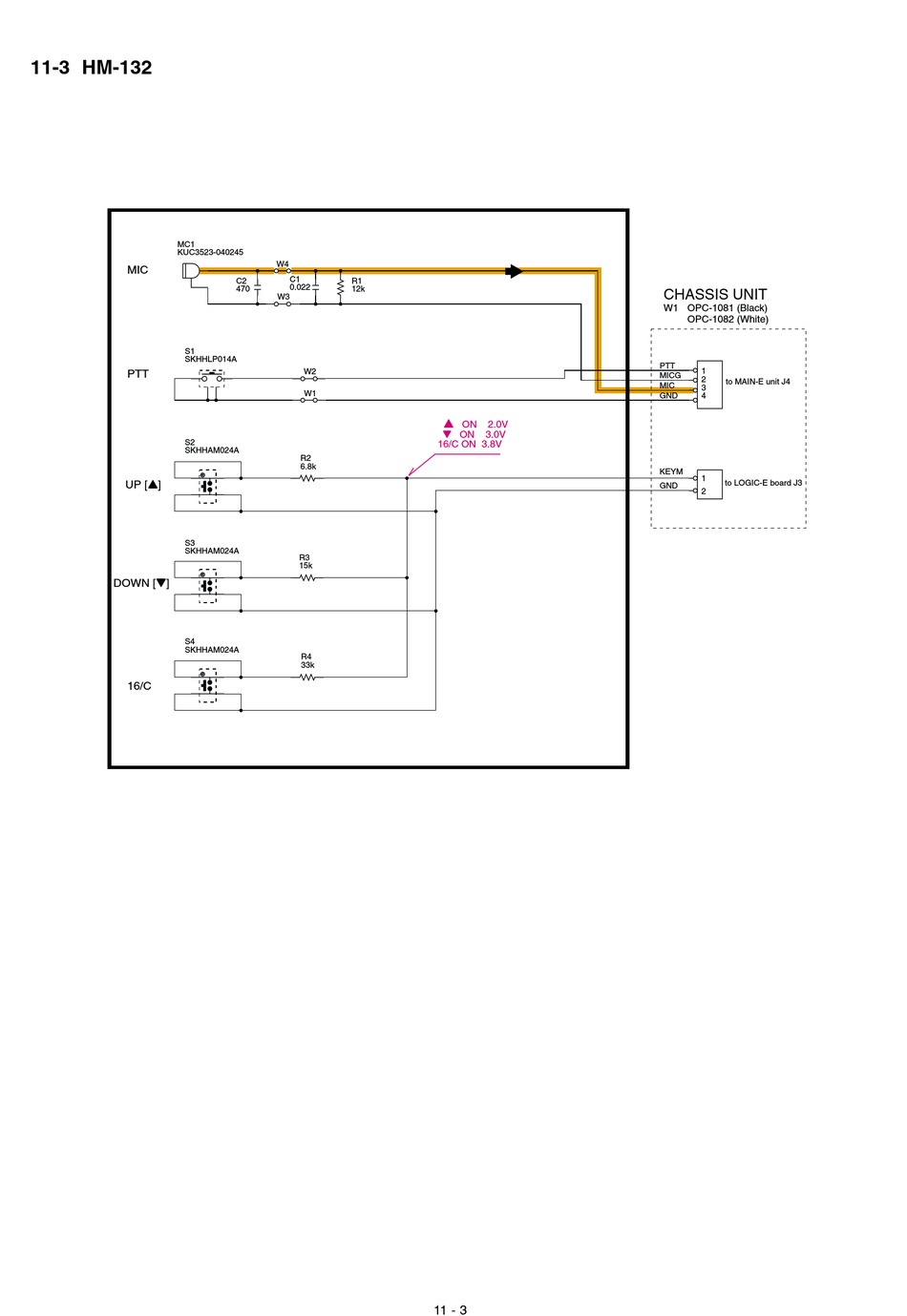

11-3 HM-132
MC1
KUC3523-040245
MIC
S1
SKHHLP014A
PTT
S2
SKHHAM024A
UP [Y]
S3
SKHHAM024A
DOWN [Z]
S4
SKHHAM024A
16/C
W4
C1
C2
R1
0.022
470
12k
W3
W2
W1
R2
6.8k
R3
15k
R4
33k
Y
ON
2.0V
Z ON
3.0V
16/C ON 3.8V
11 - 3
CHASSIS UNIT
W1 OPC-1081 (Black)
OPC-1082 (White)
PTT
1
MICG
2
to MAIN-E unit J4
MIC
3
GND
4
KEYM
1
to LOGIC-E board J3
GND
2
