Hm-132; Main Unit - Icom IC-M401E Service Manual

7-2 HM-132

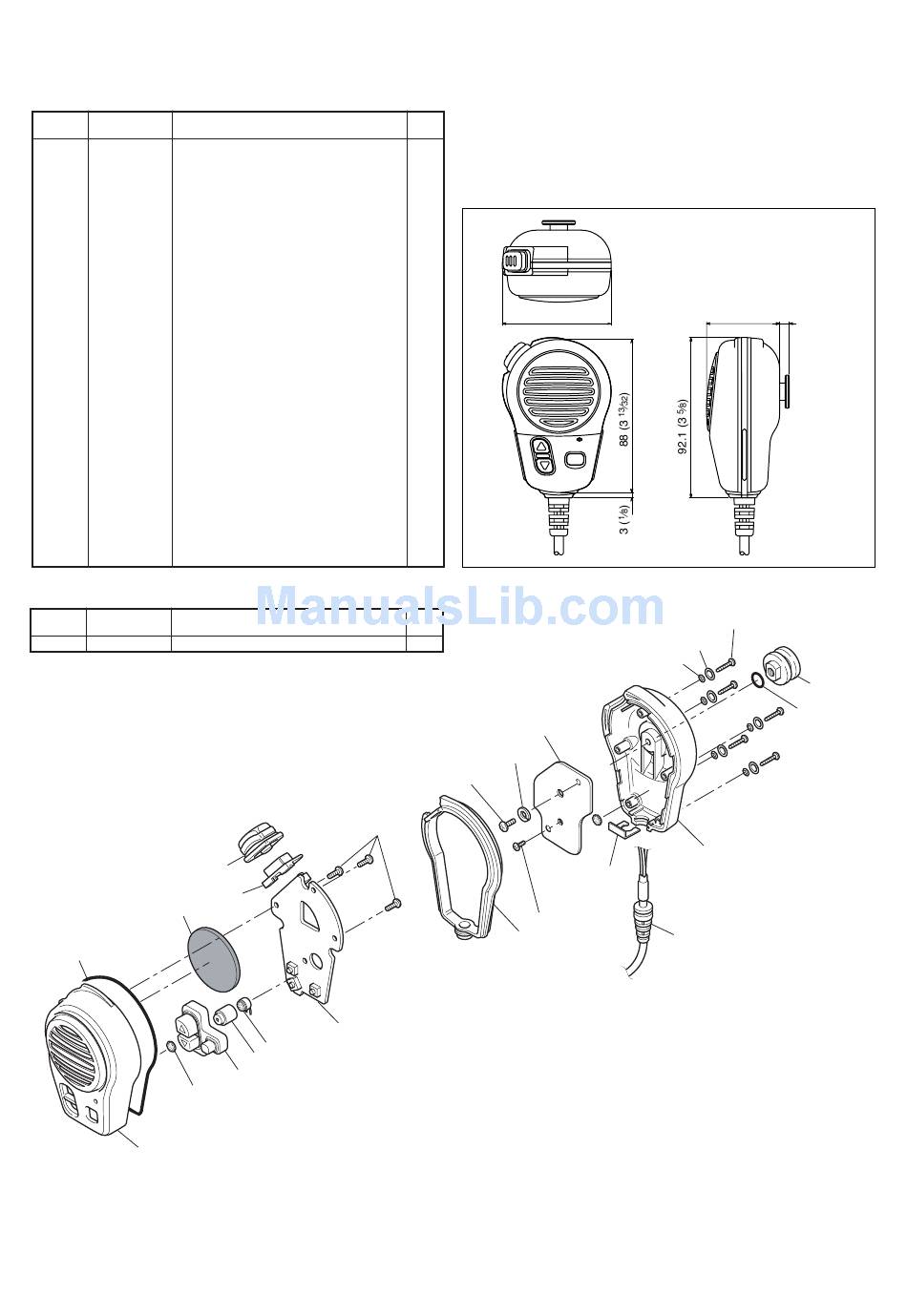

[CHASSIS PARTS]
REF. NO. ORDER NO.
W1 8900010610 Cable OPC-1081
8900010620 Cable OPC-1082
MP1 8210017950 2352 front panel (D)-1
8210017960 2352 front panel (E)-1
MP2 8210016850 2352 rear panel
8210017110 2352 rear panel (A)
MP3 8930052160 2352 key
MP4 8930052150 2352 PTT rubber
MP5 8930052140 2352 PTT holder
MP6 8930052690 2352 MIC rubber
MP7 8930052120 2352 rubber
MP8 8930052110 2352 main seal
MP9 8610010870 2352 hanger knob
MP10 8310048760 2352 R-plate
MP11 8310048780 2352 MIC plate
MP12 8820001150 2352 screw
MP13 8850001850 ICOM washer (Y)
MP14 8930052340 O-ring (AE)
MP15 8930052350 O-ring (AF)
MP16 8930056460 2449 MIC sheet
MP17 8930054910 2449 SP Rubber
MP18 8850001610 Spring washer M4 SUS
Screw PH B0 2 × 6 NI (BT)
MP19 8810009260
Screw BiH M4 × 10 ZK
MP21 8810009240
Screw PH M3 × 6 NI
MP23 8810008900

[MAIN UNIT]

REF. NO. ORDER NO.
MC1 7700002500 Microphone KUC3523-040245
Screw and washer abbreviations
B0, BT: Self-Tapping PH: Pan head
NI: Nickel
ZK: Black
MP4 (C)
MP5 (C)
MP6 (C)
MP17 (C)
MP16 (C)
MP1 (C)
DESCRIPTION
[black]
[white]
[black]
[white]
[black]
[white]
DESCRIPTION
SUS: Stainless
BiH: Bind head
MP19 (C)
MAIN UNIT
MC1 (M)
MP8 (C)
MP3 (C)
HM-132
UNIT abbreviations
QTY.
1
1
1
1
1
1
1
1
1
1
13
62.5 (2 ⁄
32
1
1
1
1
1
5
5
5
1
1
1
1
3
1
1
QTY
1
MP10 (C)
MP18 (C)
MP21 (C)
MP23 (C)
MP7 (C)
(C): CHASSIS PARTS, (M): MAIN UNIT
7 - 3
Unit: mm (inch)
21
) 42 (1 ⁄
32
MP12 (C)
MP13 (C)
MP14 (C)
MP2 (C)
MP11 (C)
W1 (C)
.
)
7
5.5 ( ⁄ )
32
MP9 (C)
MP15 (C)
