Telstra ELITE Pre-Paid User Manual

Pre-paid mobile wi-fi
Hide thumbs
Table of Contents

Advertisement

Quick Links

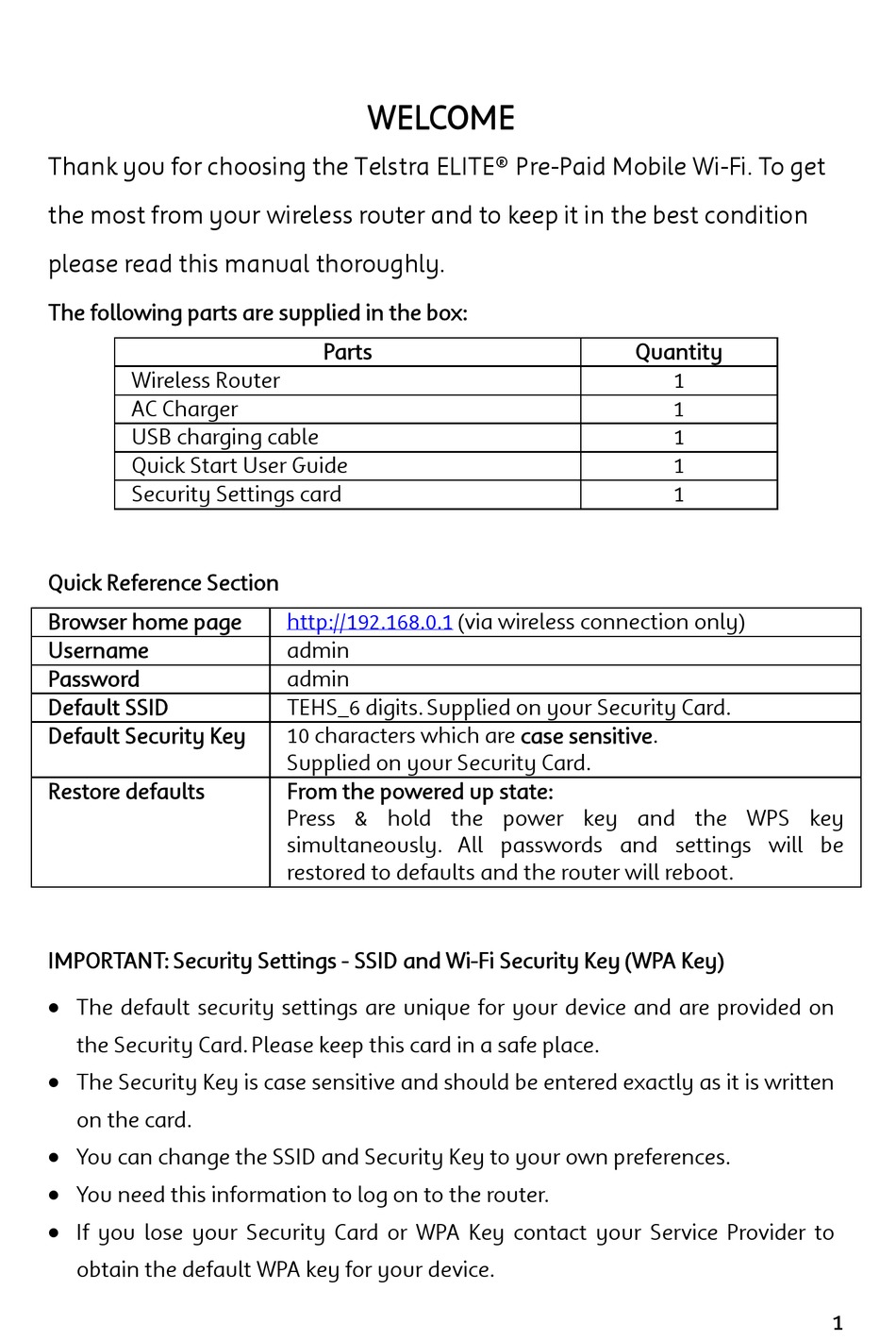

Thank you for choosing the Telstra ELITE® Pre-Paid Mobile Wi-Fi. To get
the most from your wireless router and to keep it in the best condition
please read this manual thoroughly.
The following parts are supplied in the box:
Wireless Router
AC Charger
USB charging cable
Quick Start User Guide
Security Settings card
Quick Reference Section
Browser home page
Username
Password
Default SSID
Default Security Key
Restore defaults
IMPORTANT: Security Settings - SSID and Wi-Fi Security Key (WPA Key)
 The default security settings are unique for your device and are provided on
the Security Card. Please keep this card in a safe place.
 The Security Key is case sensitive and should be entered exactly as it is written
on the card.
 You can change the SSID and Security Key to your own preferences.
 You need this information to log on to the router.
 If you lose your Security Card or WPA Key contact your Service Provider to
obtain the default WPA key for your device.
WELCOME
Parts
http://192.168.0.1
admin
admin
TEHS_6 digits. Supplied on your Security Card.
10 characters which are case sensitive.
Supplied on your Security Card.
From the powered up state:
Press & hold the power key and the WPS key
simultaneously. All passwords and settings will be
restored to defaults and the router will reboot.
(via wireless connection only)
Quantity
1
1
1
1
1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELITE Pre-Paid and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telstra ELITE Pre-Paid

Summary of Contents for Telstra ELITE Pre-Paid

  • Page 1 WELCOME Thank you for choosing the Telstra ELITE® Pre-Paid Mobile Wi-Fi. To get the most from your wireless router and to keep it in the best condition please read this manual thoroughly. The following parts are supplied in the box:...

  • Page 2: Table Of Contents

    Contents 1 General Information ............3 2 Getting started ..............5 2.1 Insert your USIM................6 2.2 Charge your Wireless Router.............. 7 2.3 Insert a microSD™ memory card (Optional Accessory) ......7 2.4 Low Power Mode (Standby Mode) ............8 2.5 Network Lock ..................

  • Page 3: General Information

    1 General Information Computer Requirements The router will operate with any PC, MAC or other device that supports Wi-Fi and has a standard internet browser installed. ZTE cannot guarantee that third party hardware or software is compatible with this product. Warnings and Safety Notices Please read all the safety notices before using this device.

  • Page 4: Radio Frequency Energy

    Radio Frequency Energy Your wireless router is a low-power radio transmitter and receiver. When switched on it intermittently transmits radio frequency (RF) energy (radio waves). The transmit power level is optimized for best performance and automatically reduces when there is good quality reception.

  • Page 5: Getting Started

    2 Getting started 1. Power Key - Press and hold the for three seconds to switch the router on or off. 2. microSD™ slot for expandable memory up to 32GB 3. WPS – Press to enable Wi-Fi Protected Setup authentication process. 4.

  • Page 6: Insert Your Usim

    2.1 Insert your USIM 1. Open the back cover using the thumb catch at the base of the device. 2. Insert the (U)SIM card with the gold contacts facing down and the beveled edge on the left hand side as shown: 3.

  • Page 7: Charge Your Wireless Router

    2.2 Charge your Wireless Router 1. Insert the charger lead carefully into the socket at the base of the router. 2. The plug only fits one way. Do not use excessive force to insert the plug. 3. Check the plug is the right way round and insert it gently. 4.

  • Page 8: Low Power Mode (Standby Mode)

    2.5 Network Lock  Your wireless router is locked to the Telstra network.  When you insert a non-Telstra SIM card you are presented with unlock instructions.  Contact Telstra to obtain your 16 digit unlock code.

  • Page 9: Using The Wireless Router

    3 Using the Wireless Router 3.1 Preparation Before using the wireless router, make sure that:  The (U)SIM card is inserted.  The device is On and the display is visible.  Search for available Wireless Networks on your computer and connect. Example for Windows XP: Start >...

  • Page 10: Login To The Web Based User Interface

    3.2 Login to the Web based User Interface The router configuration pages are accessed using a standard web browser and are only available after connecting to the router by Wi-Fi connection.  Use your computer to Search and Connect to the TEHS Wireless Network. ...

  • Page 11: General Settings

    3.3 General Settings Login Settings Change the administrator password if required Restore Restore to factory default settings PIN Management Change you SIM PIN if required Status View device information. 3.4 Internet Connection Settings Configure auto or manual Connection mode. The default mode is auto connect.

  • Page 12: Settings

    Select from 3G or GSM Networks. Default is Automatic. Manually select from available networks. APN Setting The default APN is set for Telstra. There is no need to make any changes to these settings. 3.6 Router Configure the LAN and DHCP Settings DHCP Clients View DHCP assigned addresses for connected computers.

  • Page 13: Wi-Fi Setting

    3.7 Wi-Fi Setting Station List View the status of connected Wi-Fi devices (computers). Basic Configure the basic Wi-Fi parameters. Security Configure your security details, change your wireless access password (WPA Key) if required. Enable WPS Security if required. Basic Configuration ...
  • Page 14  Country Code: Choose your country code.  Frequency (Channel): Choose the appropriate channel to optimize the performance and coverage of your wireless network.  Rate: Choose the speed rate.  MAX Station Number: Choose the maximum number of stations which can connect to the wireless router.

  • Page 15: Firewall

     WPA Algorithm: TKIP, AES or AUTO.  Pass phrase: You can input a pass phrase encryption key format (8~64 bytes).  Click Apply to save your configuration. 3.8 Firewall You can add firewall rules to protect against malicious or intrusive software. Note: You can set a maximum of 10 filter items for MAC/IP/Port Filtering and Port Forwarding.

  • Page 16: Port Forwarding

    Note：Filtering rules are matched one by one, if a provision is met it will not continue to match against the other rules set. 3.8.2 Port Forwarding Select Firewall > Port Forwarding > Enable to configure the Virtual Server Settings.  IP Address: Set the IP address for the virtual server.

  • Page 17: Troubleshooting And Warranty Information

     All calls and support for PIN numbers, SIM card registration, account and billing information, network services and other general enquiries should be directed to your Service Provider.  See your warranty card for warranty and service information.  View Frequently Asked Questions on line at http://www.zte.com.au/telstra...

  • Page 18: Technical Specifications

    5 Technical Specifications  Network & Frequency Band: HSUPA/HSDPA/WCDMA: 850/1900/2100MHz GSM/GPRS/EDGE 850/900/1800/1900MHz  Data Services: HSDPA Downlink: up to 21.6Mb/s* HSUPA Uplink: up to 5.76Mb/s*  Wi-Fi working range: approx 25m radius in free space  Wi-Fi Connections: supports up to 8 users ...

  • Page 19: Safety Precautions

    6 Safety Precautions Some electronic devices may be susceptible to electromagnetic interference. Locate the router away from electronic equipment to avoid interference. The router may interfere with medical devices like hearing aids and pacemakers. Please keep yourself at least 20 centimeters away from router. 1.
