Summary of Contents for Sena ProBee-ZS10
-
Page 1: User Guide

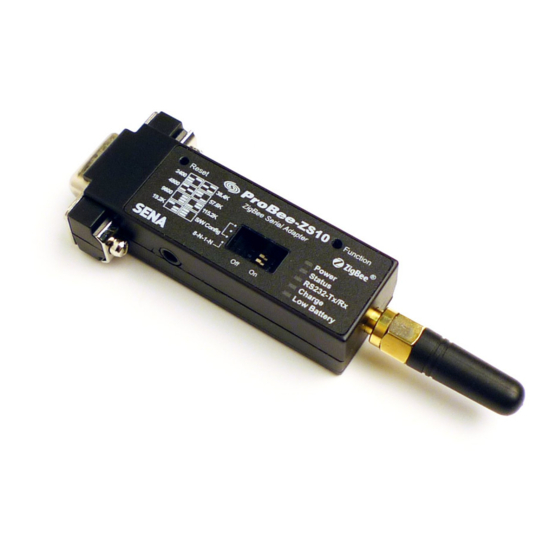

ProBee-ZS10 User Guide Rev.1.2.0 ZigBee Serial Adapter ProBee-ZS10 User Guide Sena Technologies, Inc. Rev 1.2.0... - Page 2 This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device.
-
Page 3: Revision History
ProBee-ZS10 User Guide Rev.1.2.0 Revision History Revision Date Name Description V1.0.0 2010-09-30 KS Choi Initial Writing V1.1.0 2010-10-27 KS Choi Modification for ZS10 PTv1.2 V1.2.0 2011-08-22 HR Zo Modification for ZS10 PTv1.3... -
Page 4: Table Of Contents
ProBee-ZS10 User Guide Rev.1.2.0 Contents INTRODUCTION....................... 9 About This Document ........................ 9 Overview ........................... 9 GETTING STARTED....................11 Hardware Installation ....................... 11 2.1.1 Panel Layout ........................11 2.1.2 Connecting the panel ......................12 2.1.3 Powering the panel ......................12 2.1.4 Attaching Battery Pack to ZS10 .................. - Page 5 ProBee-ZS10 User Guide Rev.1.2.0 3.5.2 Link Key ........................... 30 3.5.3 Network Key ........................30 3.5.4 Update Key........................30 DATA TRANSMISSION ..................31 Command Mode ........................31 4.1.1 Unicast ..........................31 4.1.2 Multicast ........................... 31 4.1.3 Broadcast ......................... 32 4.1.4 Sending Binary Data......................33 4.1.5...
- Page 6 ProBee-ZS10 User Guide Rev.1.2.0 5.4.1 AT+CHMASK or AT+CM ....................44 5.4.2 AT+PANID or AT+PI......................45 5.4.3 AT+EPID or AT+EI ......................45 5.4.4 AT+GROUPID or AT+GI....................45 5.4.5 AT+POWER or AT+PW..................... 45 5.4.6 AT+STACK or AT+ZS......................46 5.4.7 AT+NODENAME or AT+NN ....................46 Network Formation and Join ....................
- Page 7 ProBee-ZS10 User Guide Rev.1.2.0 5.10 Firmware Upload and Help ...................... 52 5.10.1 AT+BOOTLOAD or AT+BL....................52 5.10.2 AT+HELP or AT+HP......................52 AT COMMAND EXAMPLES ................... 53 Network configuration ......................53 6.1.1 Coordinator........................53 6.1.2 Router ..........................53 6.1.3 End-device ........................53 6.1.4...
- Page 8 Sink ............................64 7.5.1 S61........................... 64 7.5.2 S62........................... 64 MECHANICAL DRAWINGS..................66 ProBee-ZS10 mechanical drawing (mm) .................. 66 Battery pack mechanical drawing (mm)..................67 WARRANTY ......................68 GENERAL WARRANTY POLICY..................... 68 LIMITATION OF LIABILITY ...................... 68 HARDWARE PRODUCT WARRANTY DETAILS..............68 SOFTWARE PRODUCT WARRANTY DETAILS ..............
-
Page 9: Introduction
Introduction About This Document This document provides an introduction on configuration and operation of the ProBee-ZS10 ZigBee Serial Adapter. This document assumes the user is using the ZS10 adapter for evaluation hence the pictures and configuration examples shown in this document are all based on the ZS10 adapter. - Page 10 ProBee-ZS10 User Guide Rev.1.2.0 Applications Advanced Metering Infrastructure Home Area Networks (HAN) Neighborhood Area Networks (NAN) Home Automation Advanced lighting, entertainment, and climate control systems Service-based monitoring, security, and awareness systems Commercial Building Automation ...
-
Page 11: Getting Started
ProBee-ZS10 User Guide Rev.1.2.0 Getting Started Creating a ZigBee network using the ZS10 adapters consists of the following steps: Connect a power source to the ZS10 adapter Create a ZigBee network by configuring a ZS10 adapter as the coordinator ... -
Page 12: Connecting The Panel
ProBee-ZS10 User Guide Rev.1.2.0 2.1.2 Connecting the panel Please connect the device to your computer directly or using serial cable so AT commands can be sent from the computer to the ZS10 adapter. The serial port of the panel is DB9 female as a DTE terminal. -
Page 13: Attaching Battery Pack To Zs10
ProBee-ZS10 User Guide Rev.1.2.0 2.1.4 Attaching Battery Pack to ZS10 The ZS10 also supports optional standard battery pack (240mAh) and extended battery pack (900mAh). Attach the battery pack to the ZS10 as shown below to power the ZS10 using the battery pack. To recharge the battery pack, connect the external DC power adaptor as described in Section 2.1.3. -
Page 14: Configuration
ProBee-ZS10 User Guide Rev.1.2.0 Step2. Slide the battery pack into the ZS10 slot. Figure 2-6 Attach the battery pack Step3. Fasten the battery pack to the ZS10. Figure 2-7 Fasten the battery pack Configuration 2.2.1 RS232-Tx and RS232-Rx LED will flash accordingly when data is transmitted. For small data transmissions, it may be hard to recognize the quick flashing action of the LED. -
Page 15: Button
ProBee-ZS10 User Guide Rev.1.2.0 Table 2-1 The ProBee-ZS10 LED Indicators Description Power Power LED turns ON when power is supplied. If the node is set to an end-device, it will blink periodically. Please refer to 7 S-Registers for S14 regarding the management of the LED status. -
Page 16: Using Terminal Software For At Commands
ProBee-ZS10 User Guide Rev.1.2.0 Upper 3 dipswitches are used for setting the baud rate, and bottom dipswitch is used for setting data bit, parity, stop bit and flow control option. If the baud rate needs to a baud rate not shown below, ProBee Manager or terminal program should be used to set these speeds. - Page 17 ProBee-ZS10 User Guide Rev.1.2.0 Figure 2-9 HyperTerminal Serial Settings To display the AT commands that are being typed, you need to enable the local echo option on the HyperTerminal. To enable this option, Go to File->Properties->Settings->ASCII setup and select the “Echo typed characters locally”...
-
Page 18: Using Probee Manager For Configuration
ProBee-ZS10 User Guide Rev.1.2.0 Using ProBee Manager for Configuration It is possible to set or get the configurations of the ZS10 using ProBee Manager. This PC utility helps that a user can configure several setting values of local node and remote node easily without a terminal program. -
Page 19: Configuration
ProBee-ZS10 User Guide Rev.1.2.0 Clicking ‘Reboot’ button reboots the local node. Users can reload and refresh the recent configuration of the local node at ProBee manager by clicking ‘Reload’ button. ‘Configuration’ tab and ‘Firmware Update’ tab can help move to the ‘Configuration’ screen and the ‘Firmware Upgrade’ screen. -
Page 20: Firmware Update
ProBee-ZS10 User Guide Rev.1.2.0 To connect to local node through serial port, please follow the steps as below: Click the ‘…’ button at ‘Remote Configuration’ section. Scan the remote nodes joining the network and select the remote node to configure, that results in displaying the remote node in the ‘Address’... - Page 21 ProBee-ZS10 User Guide Rev.1.2.0 The Firmware Update Pane appears when the ‘Firmware Update’ tab is selected. The ‘Message’ section displays informative message about the progress of updating firmware. To update firmware at local node, please follow the steps as below: ...
-
Page 22: Zigbee Network Configuration
ProBee-ZS10 User Guide Rev.1.2.0 ZigBee Network Configuration A ZigBee Network consists of a coordinator, routers and end-devices. A minimal ZigBee network consists of one coordinator and multiple end-devices which directly connect to the coordinator. For larger ZigBee networks, routers are required to provide redundant routings to form mesh networks. -
Page 23: Node Type Selection For Coordinator
ProBee-ZS10 User Guide Rev.1.2.0 Configure the ZS10 node type as the coordinator Optionally, select the channel mask. Otherwise, the ZS10 will use the default channel mask. Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZS10 will generate the PAN ID and/or the extended PAN ID automatically. -
Page 24: Pan Id Configuration For Coordinator
ProBee-ZS10 User Guide Rev.1.2.0 Table 3-2 Channel Bitmask Channel Bit mask 00001000 00002000 00004000 00008000 00010000 00020000 00040000 Channel Bit mask 00080000 00100000 00200000 00400000 00800000 01000000 02000000 3.1.3 PAN ID Configuration for Coordinator Every ZigBee network should be assigned a PAN ID to identify the network. If the PAN ID is 0000, the ZS10 will generate a random 16-bit PAN ID to start the ZigBee network. -
Page 25: Setting Up Zs10 As A Router
ProBee-ZS10 User Guide Rev.1.2.0 AT+PERMIT=255 or AT+PJ=255 The user can permit joining for a moment at need. The AT command to permit joining is AT+PERMIT=n or AT+PJ=n , where n is the duration to permit in seconds ranging 1~254 seconds. -
Page 26: Channel Mask Configuration For Router
ProBee-ZS10 User Guide Rev.1.2.0 Example) AT+NODETYPE=2<CR> # Select router mode OK<CR> # Response ATZ<CR> # Apply the change OK<CR> # Response 3.2.2 Channel Mask Configuration for Router When the ZS10 as a ZigBee router or a ZigBee end-device tries to join, it scans all the channels configured by channel mask to find the ZigBee network to join. -
Page 27: Setting Up Zs10 As A Sleepy End-Device
ProBee-ZS10 User Guide Rev.1.2.0 Configure the ZS10 node type as an end-device Optionally, select the channel mask. Otherwise, the ZS10 will use the default channel mask. Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZS10 will scan and join the ZigBee network found automatically. - Page 28 ProBee-ZS10 User Guide Rev.1.2.0 Configure the ZS10 node as a sleepy end-device. Optionally, select the channel mask. Otherwise, the ZS10 will use the default channel mask. Optionally, set up the PAN ID and/or the extended PAN ID. Otherwise, the ZS10 will scan and join the ZigBee network found automatically.
-
Page 29: Zigbee Security
ProBee-ZS10 User Guide Rev.1.2.0 Parent Node Sleep Sleep Wake-Up Sleepy End-Device Poll Request Data Exchange Figure 3-1 Sleep Interval and Wake-up Timing The sleepy end-device can also wake up from the sleep mode by function button interrupt or incoming serial data. Once it wakes up, it also polls with the parent node at S52 interval and goes into sleep mode after S54 time elapses after the last data exchange. -
Page 30: Security Level
ProBee-ZS10 User Guide Rev.1.2.0 3.5.1 Security Level In order to use security in the application, a user should set security level using the AT command below. Set 1 defines both Authentication and Encryption at the network layer. Set 0 defines no security. Disabling security in the application is not ZigBee compliant. -
Page 31: Data Transmission
ProBee-ZS10 User Guide Rev.1.2.0 Data Transmission The ZS10 supports three different types of data transmissions: unicast, multicast and broadcast. Unicast is to transmit data to a specific ZigBee device. Multicast is to transmit data to a group of ZigBee devices that are assigned a specific group ID. -
Page 32: Broadcast
ProBee-ZS10 User Guide Rev.1.2.0 AT+MULTICAST=<group_id>,<MSG><CR> or AT+MC=<group_id>,<MSG><CR> , where <group_id> = group ID, <MSG> = data to transmit The data transmission range can be set using the AT commands below. Please refer to the 7 S-Registers for more details. ATS36=n, where n is the radius. -
Page 33: Sending Binary Data
ProBee-ZS10 User Guide Rev.1.2.0 the same rules. 4.1.4 Sending Binary Data Because some characters like carriage return, line feed and back space collides with AT commands in command mode and back slash(‘\’) is used for control character for binary encoding, they cannot be transmitted as they are. -
Page 34: Data Mode
ProBee-ZS10 User Guide Rev.1.2.0 +0001950000000001| abc\0D<CR> Note: In PTv1.2 or earlier version, only the characters mentioned at Table 4-1 are encode. In PTv1.3 or later version, back slash(‘\’) and the characters out of range between 0x20(Space) and 0x7E(‘~’) in hexadecimal are encoded. - Page 35 ProBee-ZS10 User Guide Rev.1.2.0 ATD<value><CR> Set unicast data mode to <value> device and <value> can be either 16-bit node ID or 64-bit IEEE address of remote node. AT+TRANSMITMODE=1<CR> or AT+TM=1<CR> Set the transmission mode to unicast to a destination IEEE address. The device should be reset to apply the transmission mode.
- Page 36 ProBee-ZS10 User Guide Rev.1.2.0 OK<CR> # Response Send unicast msg # Put the unicast message # Leave data mode OK<CR> # Response ATD0000<CR> # Enter the unicast mode using 16-bit node ID OK<CR> # Response Send unicast msg # Put the unicast message # Leave data mode OK<CR>...
-
Page 37: Multicast Data Mode
ProBee-ZS10 User Guide Rev.1.2.0 4.2.2 Multicast Data Mode Multicast data mode can be used for continuous data transmission to a particular group of multiple devices. Every ZS10 belongs to a certain group by predetermined group ID when forming or joining the network. -
Page 38: Broadcast Data Mode
ProBee-ZS10 User Guide Rev.1.2.0 broadcast one packet over 2 seconds for safe transmission. Broadcast transmission failure also causes retransmission which is affected by transmission timeout(S33) and transmission retries(S32). Because frequent retransmissions may cause to break the broadcast limitation, it is recommended to set more than 1000 for transmission timeout(S33) and set as small as possible for transmission retries(S32). - Page 39 ProBee-ZS10 User Guide Rev.1.2.0 Broadcast data mode can be entered using either ATB or AT+TRANSMITMODE=3. If ATB command is used, the device will enter the broadcast data mode immediately and keep it until escaped using “+++” or reset by ATZ. If the device is reset, it will not enter the broadcast data mode but command mode in this case.
- Page 40 ProBee-ZS10 User Guide Rev.1.2.0 # Leave data mode OK<CR> # Response AT+TRANSMITMODE=3<CR> # Set transmission mode to current network OK<CR> # Response ATZ<CR> # Apply to change OK<CR> # Response Send broadcast msg # Put the broadcast message # Leave data mode OK<CR>...
-
Page 41: At Command Reference
ProBee-ZS10 User Guide Rev.1.2.0 AT Command Reference Command Line Format Each command line is composed of a prefix, body and terminator. Only “AT” can be used for the prefix. The body is a string of characters. The terminator is <CR> or <NL>. A command can be one of the followings: ... -
Page 42: Ate
ProBee-ZS10 User Guide Rev.1.2.0 5.2.4 Description Echo(1) or No Echo(0). Execute ATE<number><CR> Response OK<CR> 5.2.5 Enter the multicast mode. If there’s no argument after the command, it will connect to Description the preconfigured destination group ID(AT+DESTGROUPID). Every data is packetized at intervals of inter character timeout(S12). -
Page 43: Node Specific Information
ProBee-ZS10 User Guide Rev.1.2.0 5.2.11 +++ Description Interrupt data mode. “+++” must be entered within 500ms. Execute Response OK<CR> Node Specific Information 5.3.1 AT+LONGADDR or AT+LA Get the 64-bit IEEE address. (EUI address, long address) The IEEE address is a Description unique device address assigned during manufacturing. -
Page 44: At+Oppanid Or At+Oi
ProBee-ZS10 User Guide Rev.1.2.0 5.3.5 AT+OPPANID or AT+OI Get the operating 16-bit PAN ID. If PAN ID is set specific value not 0s, operating PAN Description ID will equal designated PAN ID. A value of “FFFF” means the device is not joined a network. -
Page 45: At+Panid Or At+Pi
ProBee-ZS10 User Guide Rev.1.2.0 Range 00001000 - 03FFF000 5.4.2 AT+PANID or AT+PI Get/Set the 16-bit PAN ID. If it is set to 0s at a coordinator, the coordinator will select a Description random 16-bit hexadecimal number as PAN ID. If it is set to 0s at a router/end-device, the router/end-device will try to join any existing network regardless of PAN ID. -
Page 46: At+Stack Or At+Zs
ProBee-ZS10 User Guide Rev.1.2.0 5.4.6 AT+STACK or AT+ZS Get/Set the ZigBee stack profile value. This value must be set the same on all devices Description that should join the same network. (0: Network specific, 1: ZigBee, 2: ZigBee Pro) Execute AT+STACK?<CR>... -
Page 47: At+Nodetype Or At+Nt
ProBee-ZS10 User Guide Rev.1.2.0 some conditions such as scan duration, node type and node name in order. The information of local node is presented by “*”. (CAUTION: A ProBee-Z*10 with PTv1.2 or earlier cannot receive the response of AT+DSCAN from any ProBee-Z*10 with PTv1.3 or later. -
Page 48: At+Parentla Or At+Pl
ProBee-ZS10 User Guide Rev.1.2.0 Execute AT+SLEEP<CR> Response OK<CR> 5.6.2 AT+PARENTLA or AT+PL Description Get the 64-bit IEEE address of the parent node. Execute AT+PARENTLA?<CR> <IEEE address><CR> Response OK<CR> 5.6.3 AT+PARENTSA or AT+PS Description Get the 16-bit Node ID of the parent node. -
Page 49: At+Sinkinfo Or At+Si
ProBee-ZS10 User Guide Rev.1.2.0 5.7.3 AT+SINKINFO or AT+SI Get the long and short addresses of sink node. If there is no sink node in the network, Description the addresses will be “FFFFFFFFFFFFFFFF” and “FFFF”. Execute AT+SINKINFO?<CR> <IEEE address>,<nodeID><CR> Response OK<CR>... -
Page 50: At+Remote Or At+Rc
ProBee-ZS10 User Guide Rev.1.2.0 Execute AT+BROADCAST=<data><CR> Response OK<CR> 5.7.9 AT+REMOTE or AT+RC Get/Set the configuration values of remote node using long or short address. Description AT+REMOTE<CR> shows the list of available commands. Execute AT+REMOTE=<addr>,<cmd>?<CR> AT+REMOTE=<addr>,<cmd>=<value><CR> <value><CR> Response OK<CR> OK<CR> Security 5.8.1... -
Page 51: Uart
ProBee-ZS10 User Guide Rev.1.2.0 will be unable to change to the new network key. Execute AT+UPDATEKEY<CR> Response OK<CR> or ERROR<CR> UART 5.9.1 AT+BAUDRATE or AT+UB Get/Set the serial port speed for communication between the module serial port and Description host. -
Page 52: At+Flowctrl Or At+Uf
ProBee-ZS10 User Guide Rev.1.2.0 5.9.5 AT+FLOWCTRL or AT+UF Description Get/Set flow control status. (0: none, 1: software, 2: hardware flow control) Execute AT+FLOWCTRL?<CR> AT+FLOWCTRL=<value><CR> <value><CR> Response OK<CR> or ERROR<CR> OK<CR> Default Range 0 - 2 5.10 Firmware Upload and Help 5.10.1 AT+BOOTLOAD or AT+BL... -
Page 53: At Command Examples
ProBee-ZS10 User Guide Rev.1.2.0 AT Command Examples Network configuration 6.1.1 Coordinator AT+NODETYPE=1<CR> # set node type (coordinator) # Response ATZ<CR> # Apply the change # Response 6.1.2 Router AT+NODETYPE=2<CR> # set node type (router) # Response ATZ<CR> # Apply the change # Response 6.1.3... -
Page 54: Data Transmission
ProBee-ZS10 User Guide Rev.1.2.0 00019500002FDC15 # Response AT+REMOTE=1FEF,AT+LONGADDR<CR> # get 64-bit address of remote node (1FEF) 00019500002FDC15 # Response AT+DSCAN<CR> # get the information of other nodes in the network # (Response from Node with PTv1.2 or earlier) ZC |00019500002FDC40|0000|PTv1.0|ZE10|ZE10_COM3 ZR |00019500002FDC15|1FEF|PTv1.0|ZE10|ZE10_COM4... -
Page 55: Data Mode
ProBee-ZS10 User Guide Rev.1.2.0 # Response # send broadcast message(MSG04) to current network and the range is determined by S35. AT+BROADCAST=MSG04<CR> # Response 6.2.2 Data Mode ATD<CR> # enter the unicast mode using destination long address # Response MSG05+++ # send data(MSG05) and leave data mode ATD0000<CR>... -
Page 56: Uart Settings
ProBee-ZS10 User Guide Rev.1.2.0 ATZ<CR> # Apply the change # Response AT+NWKKEY=0<CR> # set the 128-bit network key (random key) # Response AT+UPDATEKEY<CR> # update the changed network key # Response UART Settings AT+BAUDRATE=115200<CR> # set baud rate (115,200bps) # Response AT+DATABIT=8<CR>... -
Page 57: Remote Node
ProBee-ZS10 User Guide Rev.1.2.0 6.5.2 Remote Node # upload firmware to a remote node using 64-bit long address. Note that UART of local node should be set to 115200-8-N-1-N. AT+BOOTLOAD=1,00019500002FDC40<CR> Please start .ebl upload image ... CCCCCCCCCCCCC # upload ebl file by X-modem... -
Page 58: Registers
ProBee-ZS10 User Guide Rev.1.2.0 S-Registers Register number Descriptions Display incoming message in command mode Display command echo Display command responses Manage LED status Inter character timeout Permit joining timeout TX power mode Enable application-ACK Transmission retries Transmission timeout Indirect transmission timeout... -
Page 59: S12
ProBee-ZS10 User Guide Rev.1.2.0 7.1.2 Description Get/Set the command echo mode. Execute ATS12?<CR> ATS12=<value><CR> <value><CR> Response OK<CR> OK<CR> Default Range 0 – 1 7.1.3 Description Get/Set the command responses mode. Execute ATS13?<CR> ATS13=<value><CR> <value><CR> Response OK<CR> OK<CR> Default Range 0 - 1 7.1.4... -
Page 60: S22
ProBee-ZS10 User Guide Rev.1.2.0 7.2.2 Get/Set the timeout to permit joining. It determines the time in seconds that the device Description will allow other devices to join to it when it starts network but an end-device cannot perform it. If set to 255, the device will always permit joining. -
Page 61: S33
ProBee-ZS10 User Guide Rev.1.2.0 Range 0 – 99 7.3.3 Get/Set the transmission timeout in milliseconds. A sender retransmits data packet Description after this time when transmission fails. (CAUTION: It is recommended to set this value more than 1000 in broadcast/multicast data transmission.) Execute ATS33?<CR>... -
Page 62: S37
ProBee-ZS10 User Guide Rev.1.2.0 be delivered to all nodes within this number of hops of the sender. A value of zero is converted to maximum value(30). It is used to multicast/broadcast. Execute ATS36?<CR> ATS36=<value><CR> <value><CR> Response OK<CR> OK<CR> Default Range 0 –... -
Page 63: End-Device
ProBee-ZS10 User Guide Rev.1.2.0 End-Device 7.4.1 Get/Set the poll timeout for a parent node in seconds. If an end-device or a sleepy Description end-device does not send a poll request to its parent coordinator or router within the poll timeout, the end-device is removed from the child table. -
Page 64: S55
ProBee-ZS10 User Guide Rev.1.2.0 Range 0 – 10000 7.4.5 Get/Set the rejoin timeout. If it is enabled, an end-device tries to rejoin the current network when contact with the network has been lost for setting value in seconds. The Description most common usage case is when an end-device can no longer communicate with its parent and wishes to find a new one. - Page 65 ProBee-ZS10 User Guide Rev.1.2.0 OK<CR> Default Range 0 – 10000...
-
Page 66: Mechanical Drawings
ProBee-ZS10 User Guide Rev.1.2.0 Mechanical Drawings ProBee-ZS10 mechanical drawing (mm) 99.8 with stub antenna 73.9 without antenna 14.9 30.8... -
Page 67: Battery Pack Mechanical Drawing (Mm)
ProBee-ZS10 User Guide Rev.1.2.0 Battery pack mechanical drawing (mm) Standard Battery Pack Extended Battery Pack... -
Page 68: Warranty
Warranty GENERAL WARRANTY POLICY Sena Technologies, Inc. (hereinafter referred to as SENA) warrants that the Product shall conform to and perform in accordance with published technical specifications and the accompanying written materials, and shall be free of defects in materials and workmanship, for the period of time herein indicated, such warranty period commencing upon receipt of the Product. -
Page 69: Software Product Warranty Details
ProBee-ZS10 User Guide Rev.1.2.0 external hardware Product for a period of three (3) or five (5) years according to the Product type. WARRANTY PROCEDURE: Upon return of the hardware Product SENA will, at its option, repair or replace Product at no additional charge, freight prepaid, except as set forth below. Repair parts and replacement Product will be furnished on an exchange basis and will be either reconditioned or new. -
Page 70: Regulatory Information
ProBee-ZS10 User Guide Rev.1.2.0 Regulatory Information 10.1 FCC Rule: Part 15 Subpart C Section 15.247 FCCID: S7AZBLINXZS10 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and... -
Page 71: Telec
ProBee-ZS10 User Guide Rev.1.2.0 10.2 CE1177(!) We, Sena Technologies, Inc., declare that the product(s): ProBee-ZS10 ZigBee Serial Adapter to which this declaration relates is in conformity with the following standard(s) or other normative document(s) EN 60950-1 ETSI EN 301 489-1 ... -
Page 72: Rf Information
ProBee-ZS10 User Guide Rev.1.2.0 RF Information Radio Frequency Range 2.410~2.475GHz Number of Frequency Channel 14 channels Transmission Method DSSS (Direct Sequence Spread Spectrum) Modulation Method O-QPSK (Offset Quadrate Phase Shift Keying) Radio Output Power +18dBm Receiving Sensitivity -102dBm Power Supply...
