  • Page 1 Bluetooth USB Adapter Parani-UD100A User Guide Version 2.0.1...
  • Page 2 The user agrees that protection against consequences resulting from system failure is the user's responsibility. This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device. Precautions and Safety Do not drop or subject the device to impact.

  • Page 3: Table Of Contents

    Contents 1. Introduction   1.1. Overview ............................. 4   1.2. Package Check List ........................4   1.3. Product Specification ........................5   2. Installing the Bluetooth Software   3. Using the Bluetooth Adapter   3.1. Starting Bluetooth Adapter ......................10  ...

  • Page 4: Introduction

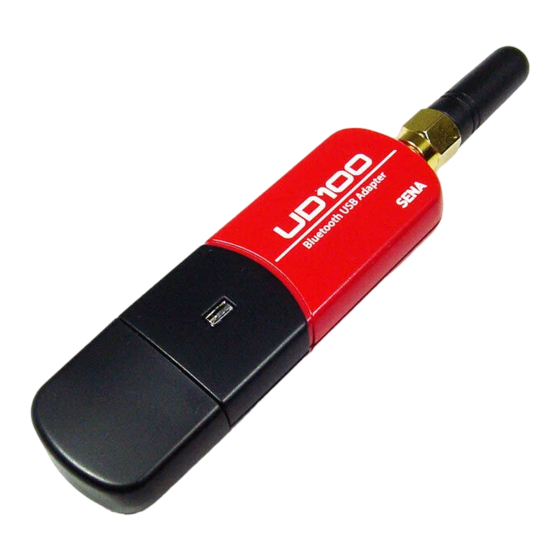

    Bluetooth 2.0+EDR class 1 with working distance up to 300 meters. In addition, working distance can be further extended using optional dipole or patch antennas. Parani-UD100A supports USB 2.0 for the computer interface and can be used with Windows using Bluetooth stack driver included in the CD or MAC OS X using MAC OS X Bluetooth stack driver.

  • Page 5: Product Specification

    1.3. Product Specification Bluetooth 4.0 + LE + BDR + EDR + Class 1 (Dual mode) Standards USB 2.0 Max Transfer Rate 3 Mbps (EDR) Frequency Range 2.402 ~ 2.480GHz Transmit Output Power Typical +8dBm (+4dBm EDR) E.I.R.P Basic 1Mbps: -88 dBm Receive Sensitivity EDR 2Mbps: -87dBm EDR 3Mbps: -82dBm...

  • Page 6: Installing The Bluetooth Software

    This chapter describes how to install and set up the Bluetooth software on your computer. Before connecting the Parani-UD100A, you must install the Bluetooth software. You should also uninstall any kind of Bluetooth driver or utility already installed on your computer such as Widcomm BTW or Toshiba, if any.
  • Page 7 e. Read the License and click the “I accept the terms in the license agreement” radio button. Then click the Next button. (Figure 2.3) Click the Next button. If you want to change the destination folder, click Browse and select the destination folder of your choice. (Figure 2.4) Figure 2.3: License Agreement Figure 2.4: Destination folder...
  • Page 8 g. Click the Install button to begin the installation. (Figure 2.5) (Figure 2.6) Installation is completed. Click the Finish button. Figure 2.5: Ready to install Figure 2.6: InstallShield wizard complete...
  • Page 9 Click the Yes button to restart your PC. Figure 2.7: restart your PC Note Latest BlueSoleil Device Driver http://www.bluesoleil.com/products/S0001201008080001.html...

  • Page 10: Using The Bluetooth Adapter

    3. Using the Bluetooth Adapter This chapter describes how you can use Parani-UD100A to make use of SPP, DUN, stereo headset and other Bluetooth services. 3.1. Starting Bluetooth Adapter a. Plug in the Parani-UD100A to USB port. b. Right-click on the Bluetooth icon on the tray, and then click on “Turn on Bluetooth” (Figure 3.1).

  • Page 11: Searching For Bluetooth Devices

    3.2. Searching for Bluetooth Devices To establish a Bluetooth connection, you need to find the Bluetooth devices first. a. Make the remote device discoverable. b. Double-click on the Bluetooth icon on the tray, then BlueSoleil window pops up. (Figure 3.2). c.

  • Page 12: Using Bluetooth Serial Port

    3.3. Using Bluetooth Serial Port This section describes how to use the Bluetooth serial port. The Bluetooth Serial Port (SPP) provides a virtual serial port via Bluetooth. Any program that uses a standard serial port can use the Bluetooth serial port. A Bluetooth passkey (PIN code) is required for to connect to. Please confirm your Bluetooth PIN code.
  • Page 13 c. Right-click on your device icon, and then click on “Connect Bluetooth Serial Port” (Figure 3.6) d. The connection is established successfully. You can use Bluetooth Serial Port. (Figure 3.7) Figure 3.6: Connect Bluetooth Serial Port Figure 3.7: Complete the Connection...
  • Page 14 e. To disconnect the connection, right-click on your device icon. And then click “Disconnect Bluetooth Serial Port” (Figure 3.8) Figure 3.8: Disconnect the Connection...

  • Page 15: Using Dial-Up Network (Dun)

    3.4. Using Dial-up Network (DUN) This section describes how to connect to the Internet using a mobile telephone. You need to have already signed up with a provider and obtained a connection ID and password. Please ensure you have confirmed the ID, password and telephone number of your provider's access point before you begin the set-up process.
  • Page 16 c. Right-click on your device icon, and then click on “Connect Bluetooth Dial-Up Networking” (Figure 3.11) d. Type the Bluetooth Passkey (PIN Code). And then click the “OK” button (Figure 3.12) Figure 3.11: Connect Dial-Up Networking Figure 3.12: Type the PIN Code...
  • Page 17 e. Click the Dial-up Connection icon on your taskbar then pop up the window. (Figure 3.13) Type your ID and password according to the arrangement with your provider. And then click the “Dial” button. (Figure 3.14) Figure 3.13: Dial-Up Connection icon Figure 3.14: Type your ID and Password...
  • Page 18 g. The connection is established successfully. You can use Bluetooth Dial-Up network. (Figure 3.15) h. To disconnect the connection, right-click on your device icon. And then click “Disconnect Bluetooth Dial-Up Networking”.(Figure 3.16) Figure 3.16: Disconnect Dial-Up Connection Figure 3.15: Dial-Up Connection...

  • Page 19: Using Bluetooth Stereo Headset

    3.5. Using Bluetooth Stereo Headset This section describes how to use the Bluetooth stereo headset to listen to your stereo music. A Bluetooth passkey (PIN code) is required for to connect to. Please confirm your headset PIN code. a. To search for your device, double-click on the My Device icon, namely, the orange ball in the center of the window. (Figure 3.17) b.
  • Page 20 d. Right-click on your device icon, and then click on “Connect Bluetooth Advanced Audio” (Figure 3.19) e. If you are connecting to the stereo headset for the first time, type the Bluetooth Passkey (PIN Code). And then click the “OK” button (Figure 3.20) Figure 3.20: Type the Passkey Figure 3.19: Connect Advanced Audio...
  • Page 21 The connection is established successfully. You can listen to your stereo music. (Figure 3.21) g. To disconnect the connection, right-click on your device icon. And then click “Disconnect Bluetooth Advanced Audio”.(Figure 3.22) Figure 3.21: Bluetooth Stereo Headset Connection Figure 3.22: Disconnection Bluetooth Advanced Audio...

  • Page 22: Using Other Bluetooth Services

    3.6. Using Other Bluetooth Services For more information on other Bluetooth services, please refer to the online Help provided by the Bluetooth Manager software. To open the Bluetooth Manager Help, Double click "Bluetooth Places" icon on the desktop, and then click the Show Menu button-> Help -> BlueSoleil Online Help (Figure 3.23). Figure 3.23: Getting Online Help...

  • Page 23: Appendix A. Mechanical Drawing

    Appendix A. Mechanical Drawing...

  • Page 24: Appendix B. Warranty

    (5) years according to the Product type. WARRANTY PROCEDURE: Upon return of the ha rdware Product SENA will, at it s option, repair or r eplace Product at no additional ch arge, freight prepaid, except as set forth below. Repair parts and replacement Product will be furnished on an exchange basis and will be either reconditioned or new.

  • Page 25: Software Product Warranty Details

    WARRANTY PERIOD: SENA warranties software Product for a period of one (1) year. WARRANTY COVERAGE: SENA warranty will be limited to providing a software bug fix or a software patch, at a reasonable time after the user notifies SENA of software non-conformance.

  • Page 26: Appendix C. Contact Information

    If you have any questions regarding the product, please contact your local dealer/distributor or contact us directly as contact information below: Contact Technical Support http://www.sena.com/support/contact_support/ Email support@sena.com Phone Toll Free (US/Canada): 1-8668-US-SENA (1-866-887-7362) Outside from US/Canada: +1 (408) 448-1997 Contact Sales http://www.sena.com/where_to_buy/contact_sales/ Email sales@sena.com...
  • Page 27 This product i s CE marke d according to the pr ovisions of the R&T TE Directive (99/5/EC). This device complies with part 15 of the F CC Rules. Operation is subject to the follo wing two Hereby, SENA declares that this product is in compliance with the essential requirements and conditions: other relevant provisions of Directive 1999/5/EC.
