Sena +MESH Quick Start Manual

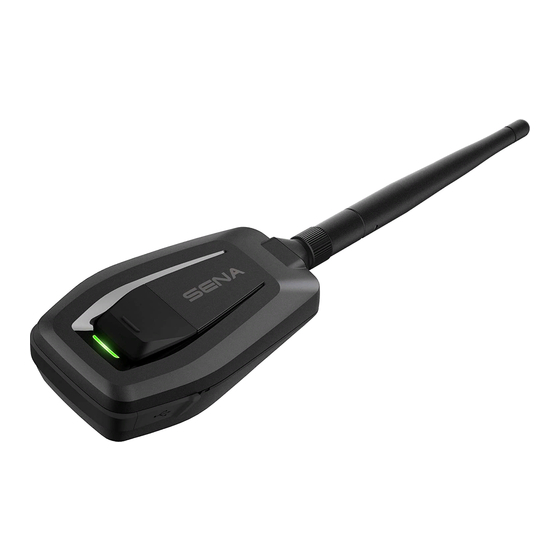

Bluetooth to intercom adapter
Hide thumbs Also See for +MESH:
Table of Contents

Advertisement

Quick Links

Download this manual
+ MESH
BLUETOOTH TO MESH INTERCOM ADAPTER
QUICK START GUIDE
2.4.1
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the +MESH and is the answer not in the manual?

Questions and answers

Related Manuals for Sena +MESH

Summary of Contents for Sena +MESH

  • Page 1 + MESH BLUETOOTH TO MESH INTERCOM ADAPTER QUICK START GUIDE 2.4.1 ENGLISH...
  • Page 2 The +Mesh features Sena’s Mesh Intercom technology allowing your group to seamlessly communicate, even if a rider falls out of range. Pair your headset or helmet from Sena to the +Mesh to start talking with other riders using Mesh Intercom. With built-in Bluetooth , HD ®...
  • Page 3 GETTING STARTED Update this product for free with the latest firmware to fully enjoy the new advanced features built into this product. Visit sena.com to see how to update your product. Users can follow Sena on Facebook, YouTube, Twitter and Instagram to receive the most up...

  • Page 4: Table Of Contents

    Sena +Mesh App 2.1.2 Running the Sena +Mesh App 2.1.3 Sena Device Manager 2.2 Powering On and Off 2.3 Charging 2.4 Checking the Battery Level MESH INTERCOM What is Mesh Intercom 3.2 SENA Products That Can Communicate with +Mesh via Mesh Intercom...
  • Page 5 3.3 Using the Mesh 3.3.1 Bluetooth Pairing with a Sena Headset or Helmet 3.3.2 Mesh Intercom On and Off 3.3.3 Mesh Intercom Reconnection 3.4 Using the Mesh in Open Mesh 3.4.1 Checking the Current Channel of the +Mesh 3.4.2 Channel Setting (Default: channel 1) 3.5 Muting the Microphone (Default: Unmute) 13...

  • Page 6: About The +Mesh

    1. ABOUT THE +MESH 1.1 Product Details Mesh Intercom Antenna Multi-function Button DC Power Charging & Status LED Firmware Upgrade Port 1.2 Package Contents Mesh Intercom Main Unit Antenna Handlebar Mounting Mounting Kit Cradle USB Power & Data Cable...

  • Page 7: Installing The +Mesh

    ABOUT THE +MESH 1.3 Installing the +Mesh Install the +Mesh where the antenna is not blocked by the human body as much as possible. When the human body is blocking the antenna, the Mesh intercom signal strength will be weakened. 1.3.1 Using the Handlebar Mounting Kit 1.

  • Page 8: Basic Operation

    2. BASIC OPERATION 2.1 Downloadable Sena Software 2.1.1 Sena +Mesh App You can use the Sena +Mesh App without pairing your Smartphone to the +Mesh. • Download – Android: Google Play Store > Sena +Mesh App – iOS: App Store > Sena +Mesh App 2.1.2 Running the Sena +Mesh App...

  • Page 9: Sena Device Manager

    BASIC OPERATION 2.1.3 Sena Device Manager The Sena Device Manager allows you to upgrade the firmware from your PC or Apple computer. Download the Sena Device Manager from sena.com. 2.2 Powering On and Off To power on the +Mesh, press and hold the Multi-function Button for 1 second.

  • Page 10: Mesh Intercom

    3. MESH INTERCOM 3.1 What is Mesh Intercom Sena proposes using Mesh Intercom™, which provides instant and effortless bike-to-bike communication without a pre-grouping process. Mesh Intercom allows riders to connect and communicate with nearby users without the need to pair each headset together.

  • Page 11: Sena Products That Can Communicate With +Mesh Via Mesh Intercom

    3.3 Using the Mesh Before using Mesh Intercom, you will need to pair a compatible Sena headset or helmet for the first time. The Bluetooth pairing operation is only required once for each Sena headset or helmet. The +Mesh remains paired with...

  • Page 12: Mesh Intercom On And Off

    MESH INTERCOM 3.3.2 Mesh Intercom On and Off 1. To start the Mesh Intercom, tap the Multi-function Button. The LED flashes green and you will hear “Mesh intercom on, Open Mesh, channel 1” from the connected corresponding headset. 2. To terminate the Mesh Intercom, tap the Multi-function Button.

  • Page 13: Using The Mesh In Open Mesh

    If the Open Mesh communication experiences interference because other groups are also using channel 1 (default), change the channel. You can select from channels 1 to 9. • You can only change the channel through the Sena +Mesh App. 3.5 Muting the Microphone (Default: Unmute) 1.

  • Page 14: Mesh Intercom Repeater Mode

    In Mesh Intercom Repeater Mode, only the following features can be executed: – Power on/off – Factory Reset – Change the channel through the Sena +Mesh App. • If you want to pair with the Bluetooth headset, execute Factory Reset and proceed with Bluetooth pairing.

  • Page 15: Troubleshooting

    4. TROUBLESHOOTING 4.1 Firmware Upgrade The +Mesh supports firmware upgrades. You can update the firmware using the Sena Device Manager. 4.2 Fault Reset When the +Mesh is not working properly or is in faulty status for any reason, you may reset by pushing the Pin-hole Reset Button at the back of the main unit.

  • Page 16: Quick Reference

    QUICK REFERENCE Type Operation Button Command Basic Power Press and hold the Multi-function Function on/off Button for 1 second Press and hold the Multi-function Bluetooth Pairing Button for 5 seconds Mesh Intercom Tap the Multi-function Button on/off Mute/ Double tap the Multi-function Unmute Button Mesh...
  • Page 17 ® Bluetooth capabilities. The Bluetooth word mark and logos are owned by the Bluetooth SIG, ® Inc. and any use of such marks by Sena is under license. iPhone ® iPod touch are registered trademarks of Apple Inc. ® Address: 152 Technology Drive Irvine, CA 92618...
