Summary of Contents for Sena Parani-SD1000
- Page 1 Parani-SD1000 User Guide Version 1.0.0 2008-05-09...
- Page 2 This device is not approved for life-support or medical systems. Changes or modifications to this device not explicitly approved by Sena Technologies will void the user's authority to operate this device.
-
Page 3: Table Of Contents
Contents 1. Introduction 1.1. Overview ............................5 1.2. Product Specification........................6 2. Getting Started 2.1. Panel Layout ..........................7 2.2. Connecting the Hardware ......................7 2.2.1. Connecting Power to Parani-SD ..................8 2.2.2. Connecting Device to Parani-SD ..................8 오류! 책갈피가 정의되어 있지 않습니다. Appendix A: Connections A.1. - Page 4 B.3.29. AT+BTLPM,n ......................16 B.3.30. AT+BTRSSI,n ......................16 B.3.31. AT&V ..........................17 B.3.32. ATSnn? ........................17 B.3.33. ATSnn=mm ........................17...
-
Page 5: Introduction

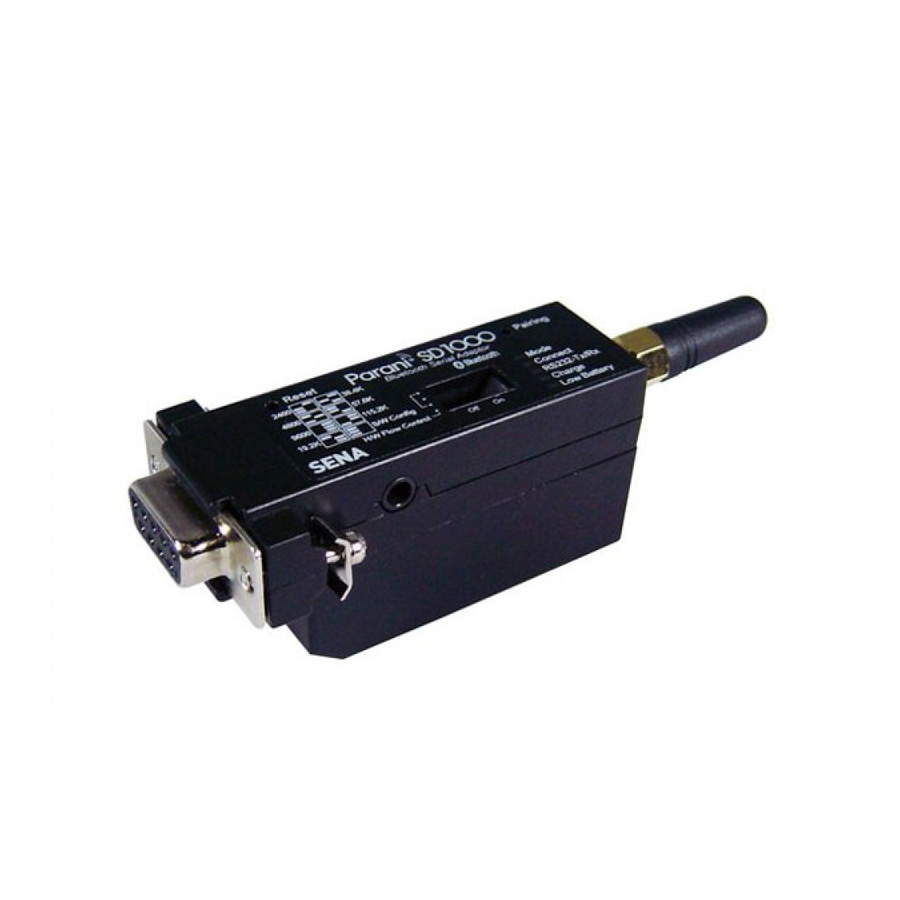

1. Introduction 1.1. Overview Parani-SD is a terminal device for wireless serial communication using Bluetooth technology that is an international standard of short range wireless communications. Parani-SD can communicate with other Bluetooth devices; user may connect other Bluetooth devices that support the Serial Port Profile. Parani-SD provides several models with different communication ranges, from 30m up to 100m for various applications. -
Page 6: Product Specification
1.2. Product Specification Parani-SD1000 Serial UART speed up to 921.6kbps Serial Interface CTS/RTS flow control, DTR/DSR for loop-back & full transfer Bluetooth Interface Bluetooth v2.0 + EDR Profile: Serial Port Profile Class 1 Working distance: 100 meters Configuration ParaniWIN, Modem AT command set... -
Page 7: Getting Started
2. Getting Started This chapter describes how to set up the Parani-SD Series for the first time. - 2.1 Panel Layout explains the panel layout. - 2.2 Connecting the Hardware describes how to connect the power, the serial device, and the battery pack to the Parani-SD Series. -
Page 8: Connecting Power To Parani-Sd
2.2.1. Connecting Power to Parani-SD Connect the power jack to the power connector of the Parani-SD Series using the DC power adapter, USB power cable or DC power cable that is included in the package. If power is properly supplied, the [Power] lamp will display a solid green color. -
Page 9: Appendix B: At Commands
Appendix A: AT Commands A.1.1. ATZ Response Purpose Software Reset Description This has the same effects as Powercycling the unit. This command disconnects any connected Bluetooth device, and stops ongoing tasks. After rebooting, the status will be decided by the preset operation mode. Some AT commands require the ATZ command be run so that the commands can take effect. -
Page 10: At+Usedip
A.1.5. AT+USEDIP? Response Purpose Check the Baud rate set by the dip switch Description m=0: Dip switches are set to ‘S/W Config’ m=1: Please view the dipswitches to view your baud rate. Reference AT, ATZ, AT&F, ATS A.1.6. AT+BTINFO? Response 112233445566,DeviceName,Mode,Status,Auth,Encryp,FlowControl Purpose Display Bluetooth settings... -
Page 11: At+Btver
A.1.9. AT+BTVER? Response SD1000v1.0.0 Purpose Display device firmware version Description Display device firmware version Reference AT+BTINFO? A.1.10. AT+BTMODE,n Response Purpose Set operation mode Parameters n=0: MODE0 (Default) n=1: MODE1 n=2: MODE2 n=3: MODE3 Description When the operation status is ‘Pending’ currently, change the status to ‘Standby’ with AT+BTCANCEL prior to this command. -
Page 12: Ato
Reference +++, ATO Example AT+SETESC,42 A.1.13. ATO Response None Purpose Convert the operation status of ‘Standby’ to ‘Connect’ Description You can convert the operation status of ‘Standby’ to ‘Connect’ ready to transmit data. Reference +++, AT+SETESC A.1.14. AT+BTCANCEL Response Purpose Terminate the current task Description This terminates a current executing task, such as Inquiry scan and Page scan, then... -
Page 13: At+Btscan112233445566,To
Description For the given to, Parani-SD is waiting for the inquiry and connection from other Bluetooth devices. If the parameter of to is 0, it will wait forever. When connection is made with other Bluetooth device, response will be ‘CONNECT’ with its BD address. -
Page 14: Ata
Description Parani-SD attempts to connect to the Bluetooth device with the given BD address. To make successful connection, the Bluetooth device must be in Page scan mode. This attempt continues for 5 minutes. If it fails to make connection, response is ‘ERROR ’. Reference AT+BTINQ?, AT+BTSCAN Example... -
Page 15: At+Btsd
Description Pin code is a string, which allows up to 16 alpha-numeric characters. Based on this pin code, Parani-SD generates a link key which is used in actual authentication process Reference AT+BTCSD, AT+BTFP, AT+BTSD?, AT+BTSEC, ATZ, AT&F Example AT+BTKEY=”apple” A.1.24. AT+BTSD? Response 112233445566 Purpose... -
Page 16: At+Btname=$String
Description If the authentication is activated, the pin code must be set by AT+BTKEY command. Data encryption cannot be used when authentication is not enabled, i.e. Authentication=0 and Encryption=1 will not work properly. Reference AT+BTCSD, AT+BTFP, AT+BTSD?, AT+BTSD?, ATZ, AT&F A.1.28. - Page 17 A.1.31. AT&V S0:m0;S1:m1; …Sn:mn Response Purpose Display all the S-registers Description All parameters are stored at S-register in flash memory. These values are sustained until a hardware reset. Reference A.1.32. ATSnn? Response value Purpose Display a given S-register Parameters nn= Address of S-register Description A specific S-register will be displayed.
- Page 18 3. Approval Information 3.1 FCC 3.1.1 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, Including interference that may cause undesired operation Information to User This equipment has been tested and found to comply with the limits for a Class B digital device,...
