7. Plug in the male connectors on the PGHFD1 harness into the 24-pin port and 16-pin
port on the back of the radio. Next, connect the factory 24-pin and 16-pin harness (if
present) into the female connectors on the PGHFD1 harness. Be sure to make a firm
connection but do not force it. If you are using the PGHFD1A harness, the 4 pin plug on
this harness will connect to the 4-Pin plug on the PGHFD1 harness. The 12 pin plug
on this harness will replace the current 12-pin harness connected to the LCD screen
mounted above the radio. Disconnect the factory 12-Pin harness and do not reconnect.
Plug the 12-Pin connector of the PGHFD1A harness into the LCD display. Again make
a firm connection, but do not force. Plug the black micro-fit 24-pin connector on the
PGHFD1 harness into the PXAMG Media Gateway box.
8. To complete the installation secure the Media Gateway (PXAMG) and HD Radio
tuner (HDRT) into the cavity in the dash behind the radio. Be sure that the cables
and interface modules are not near moving parts or sharp metal edges as they may
damage the cables. To prevent rattling noises inside the dash, use zip ties, or electrical
tape, or other fasteners to mount the interfaces to the factory wiring or installed audio
components (for example under the factory Satellite tuner (if present).
9. With all connections made, reconnect the vehicle's battery, insert the key into the
ignition, and turn the vehicle on. Check for proper operation of the Media Gateway and
HD Radio tuner before reinstalling the factory dash panels.
10. NOTE: The first time you access the media gateway, the radio may display "DEV
INIT" while the device is initializing. If this is displayed, wait one minute or 60 seconds,
cycle the ignition off and on. Now press the AUX button to access the Gateway and
begin normal operation.

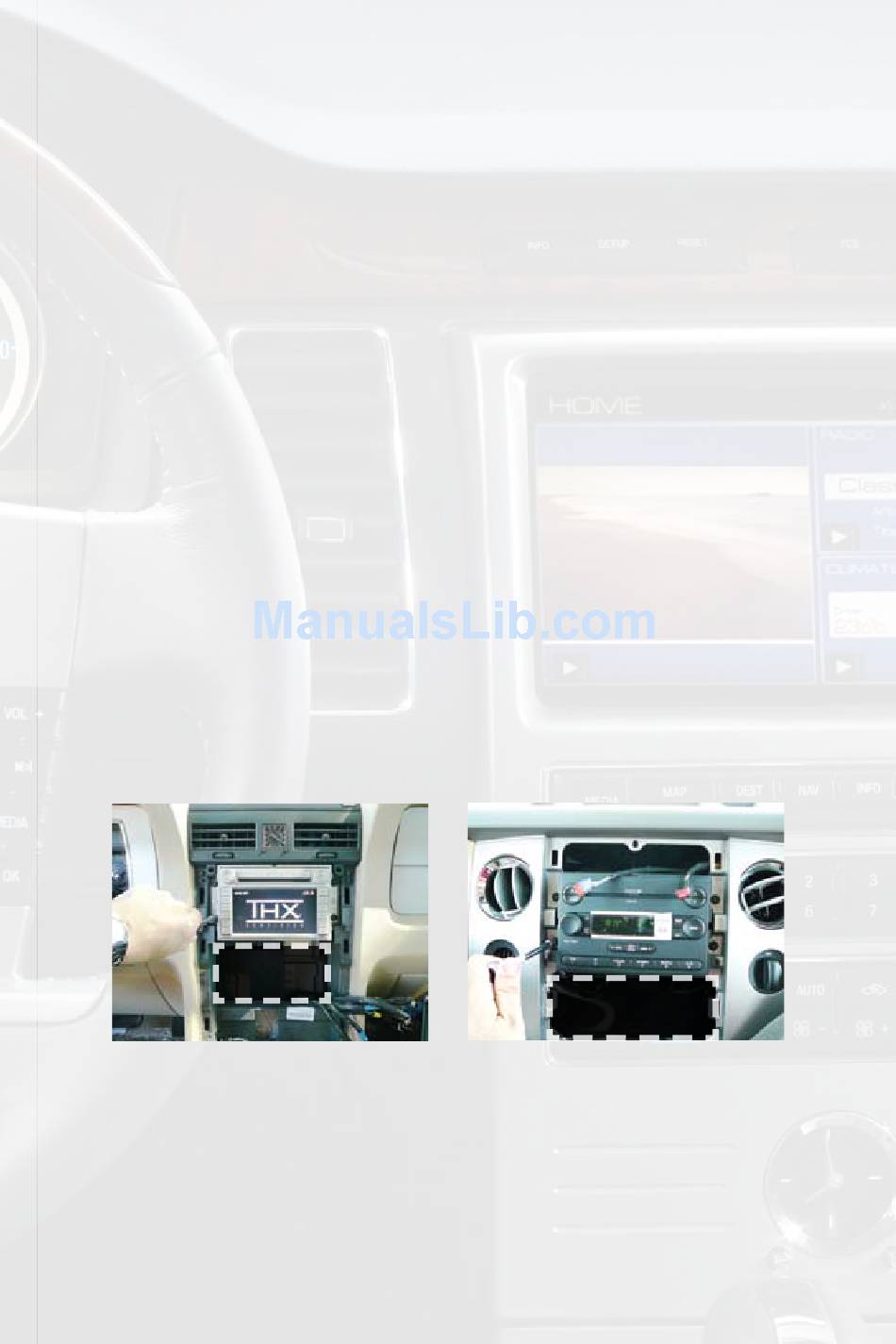

Sample Mounting Locations: You can Secure your Media
Gateway and HD Radio tuner in the shaded areas shown below.
Mounting location for Media Mounting location for Media
Gateway or HD Radio tuner Gateway or HD Radio tuner
