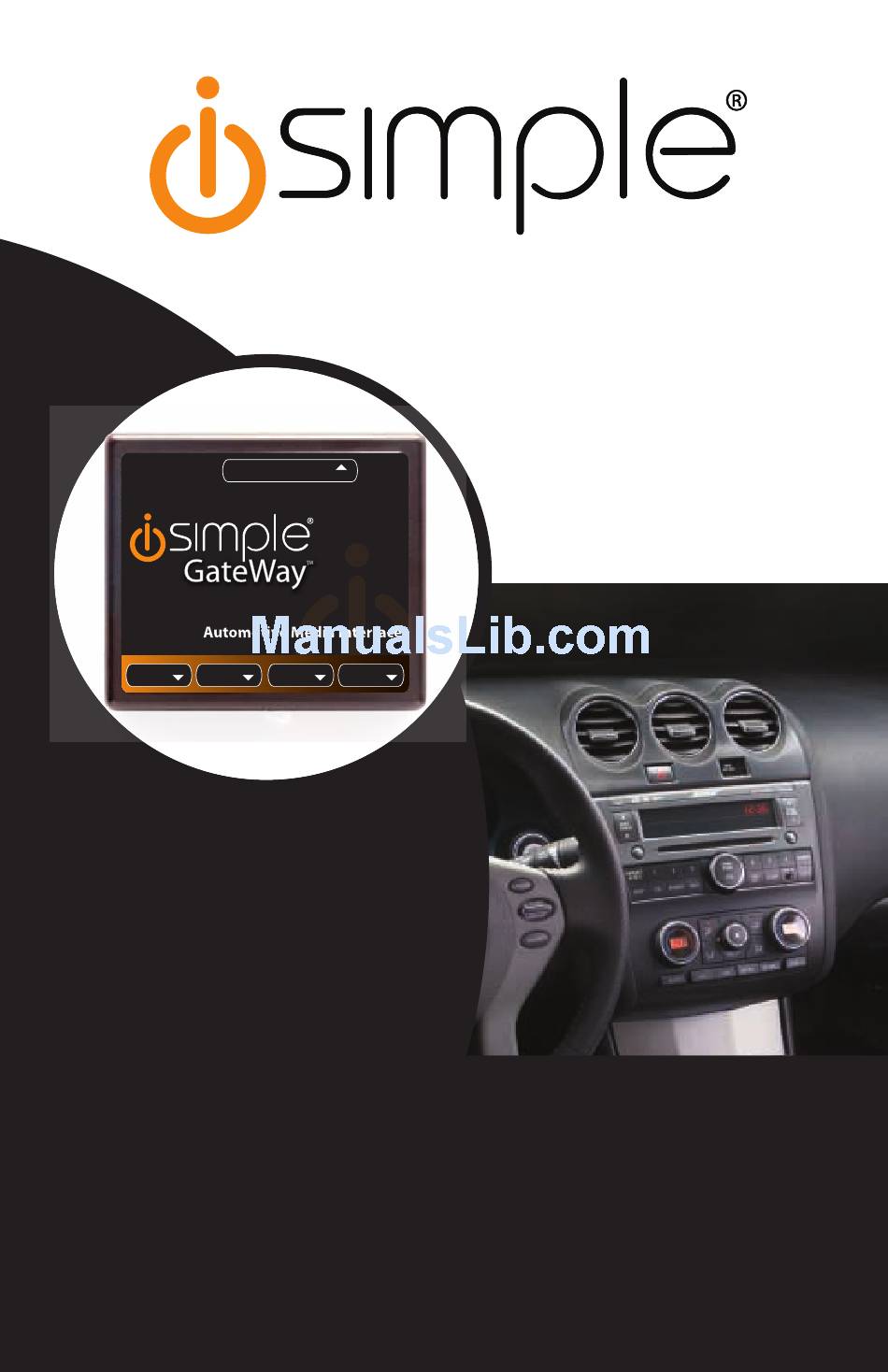

iSimple PGHNI2 Owner's Manual

Expand your factory radio add satellite radio nissan/infiniti
Hide thumbs Also See for PGHNI2:
Table of Contents

Advertisement

Quick Links

Download this manual
Expand Your Factory Radio
Harness Connection
Port 1
Port 2
NISSAN/INFINITI
370z • Cube
Pathfinder • Armada
Sentra • Maxima
Altima • Rouge
Versa • G35
M35/45 • QX56
Owner's Manual
Media Gateway
ISNI11
PGHNI2
iSimple®
A Division of AAMP of America™
13190 56th Court Clearwater, FL 33760
Ph. 866-788-4237
support@isimplesolutions.com
©2009 AAMP of Florida, Inc.
www.isimplesolutions.com
Dip Switches
USB
(See Manual)
add
Satellite
Radio
Rev. 10-05-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PGHNI2 and is the answer not in the manual?

Questions and answers

Related Manuals for iSimple PGHNI2

Summary of Contents for iSimple PGHNI2

  • Page 1 Sentra • Maxima Altima • Rouge Versa • G35 M35/45 • QX56 Owner’s Manual Media Gateway ISNI11 PGHNI2 iSimple® A Division of AAMP of America™ 13190 56th Court Clearwater, FL 33760 Ph. 866-788-4237 support@isimplesolutions.com ©2009 AAMP of Florida, Inc. www.isimplesolutions.com...

  • Page 2: Table Of Contents

    Table of Contents Pages 1. Introduction 2. Precautions 3. Compatibility Notes 4. Dipswitch Settings 5. Installation Nissan Vehicles 6. 370z/Cube Operation 7. Pathfinder/Armada Operation 8. Sentra/Maxima Operation 9. 2009-2010 Maxima Operation 10. Altima/Rouge Operation 11. Versa Operation 10-11 Infiniti Vehicles 12.
  • Page 3 Media Gateway & Optional Add-ons *The Media Gateway Factory Radio will only support 2 Not Included inputs. Media Gateway Harness Part #: PGHNI2 Media Gateway DVD Player Part #: PXAMG (not included)  Harness Connection  Harness Connection  Harness Connection...

  • Page 4: Introduction

    1. Introduction ® Thank you for purchasing the iSimple Media Gateway. The Media Gateway is designed to provide endless hours of listening pleasure from your factory radio. To ensure that your SCC1 satellite radio tuner performs correctly with your radio, we recommend that you read this entire manual before attempting installation of the Media Gateway.

  • Page 5: Dipswitch Settings

    4. Dipswitch Settings For the 2007-2008 Armada, 2007-2008 G35, 2007-2008 Maxima Non-Navigation, 2007-2008 Pathfinder, 2007-2008 Sentra and the 2007-2008 QX56 all dipswitches must be off (Fig. A). 2007-2008 Armada 2007-2008 G35/G37 Fig. A 2007-2008 Maxima Non-Navigation 2007-2008 Pathfinder 2007-2008 Sentra 2007 QX56 For the 2007-2008 Altima, 2007-2008 Rouge and the 2007-2008 Versa dipswitch...

  • Page 6: Installation

    PXAMG location. 6. Plug in the male connectors on the PGHNI2 harness into the 20-pin and 12- pin ports on the back of the radio. Next, connect the factory 20-pin and 12-pin harnesses into the female connectors on the PGHNI2 harness.

  • Page 7: Sirius Satellite Radio Operation

    6. 370z & CUBE Sirius Satellite Radio Operation Entering Mode Select Menu Press the “AM/FM” button and then the “AUX” button. Immediately press the “SEEK ▲” button to scroll through the available sources. Once “SIRIUS” is displayed, press the “TUNE ▼” button to select it. Channel Up Press the “TUNE ▲”...

  • Page 8: Pathfinder/Armada Operation

    7. Pathfinder & Armada Sirius Satellite Radio Operation Entering Mode Select Menu Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once “SIRIUS” is displayed, press the “<<SEEK” button to select it. Channel Up Turn the TUNE KNOB clockwise to move up through the channels.

  • Page 9: Sentra/Maxima Operation

    8. Sentra & Maxima Important Configuration Process To ensure proper functionality of your PXAMG interface, you must first set the “TUNE” and “SEEK” buttons to the proper configuration. To do this you must first enter the Mode Select Menu. Press the “RADIO” button a few times until “SAT” is displayed on the screen.

  • Page 10: 09-2010 Maxima Operation

    Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK>>” button to scroll through the available sources. Once “AUX” is displayed, press the “<<TUNE” button to select it. 9.

  • Page 11: Altima/Rouge Operation

    10. Altima & Rouge Sirius Satellite Radio Operation Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK ▲” button to scroll through the available sources. Once “SIRIUS” is displayed, press the “TUNE ▼” button to select it. Channel Up Press the “TUNE ▲”...

  • Page 12: Infiniti Vehicles

    11. Versa Important Configuration Process To ensure proper functionality of your PXAMG iPod Interface, you must first set the “SEEK” button to the proper configuration. To do this you must first enter the Mode Select Menu. Press the “RADIO” button a few times until “SAT” is displayed on the screen.

  • Page 13: G35/G37 Operation

    Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately press the “SEEK ▲” button to scroll through the available sources. Once “AUX” is displayed, press the “TUNE ▼” button to select it. 12.

  • Page 14: M35/45 Operation

    Selecting AUX Input Entering Mode Select Menu Press the “RADIO” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary knob to scroll through the available sources. Once “AUX” is displayed, press the “▼ TRACK” button to select it. 13.

  • Page 15: Qx56 Operation

    14. QX56 Sirius Satellite Radio Operation Entering Mode Select Menu Press the “AM/FM/SAT” button a few times until “SAT” is displayed on the screen. Immediately turn the rotary TUNE KNOB to scroll through the available sources. Once “SIRIUS” is displayed, press the “<<SEEK” button to select it. Channel Up Turn the TUNE KNOB clockwise to move up through the channels.

  • Page 16: Troubleshooting

    15. Troubleshooting Symptom Cause Remedy Radio shows “DEV This only occurs the first time the Media Gateway INIT” device is initializing. Media Gateway is powered on. Wait a few minutes, cycle ignition off and on then enter SAT mode. The Seek or Tune The seek and tune Please see the Important Configuration Process in the operation...

  • Page 17: Warranty Info

    Within the first 12 months from date of purchase, subject to the conditions above, iSimple ® will repair or replace the product at their discretion, if it is defective in material ® or workmanship providing it is returned to an Authorized iSimple dealer, with PROOF OF PURCHASE from an authorized iSimple ® dealer.
  • Page 18 www.isimplesolutions.com For Best Performance Have It Professionally Installed.
