Owners and Installation Manual
MMD70
7" LCD MONITOR & DVD PLAYER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMD 70 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox MMD 70

Summary of Contents for Audiovox MMD 70

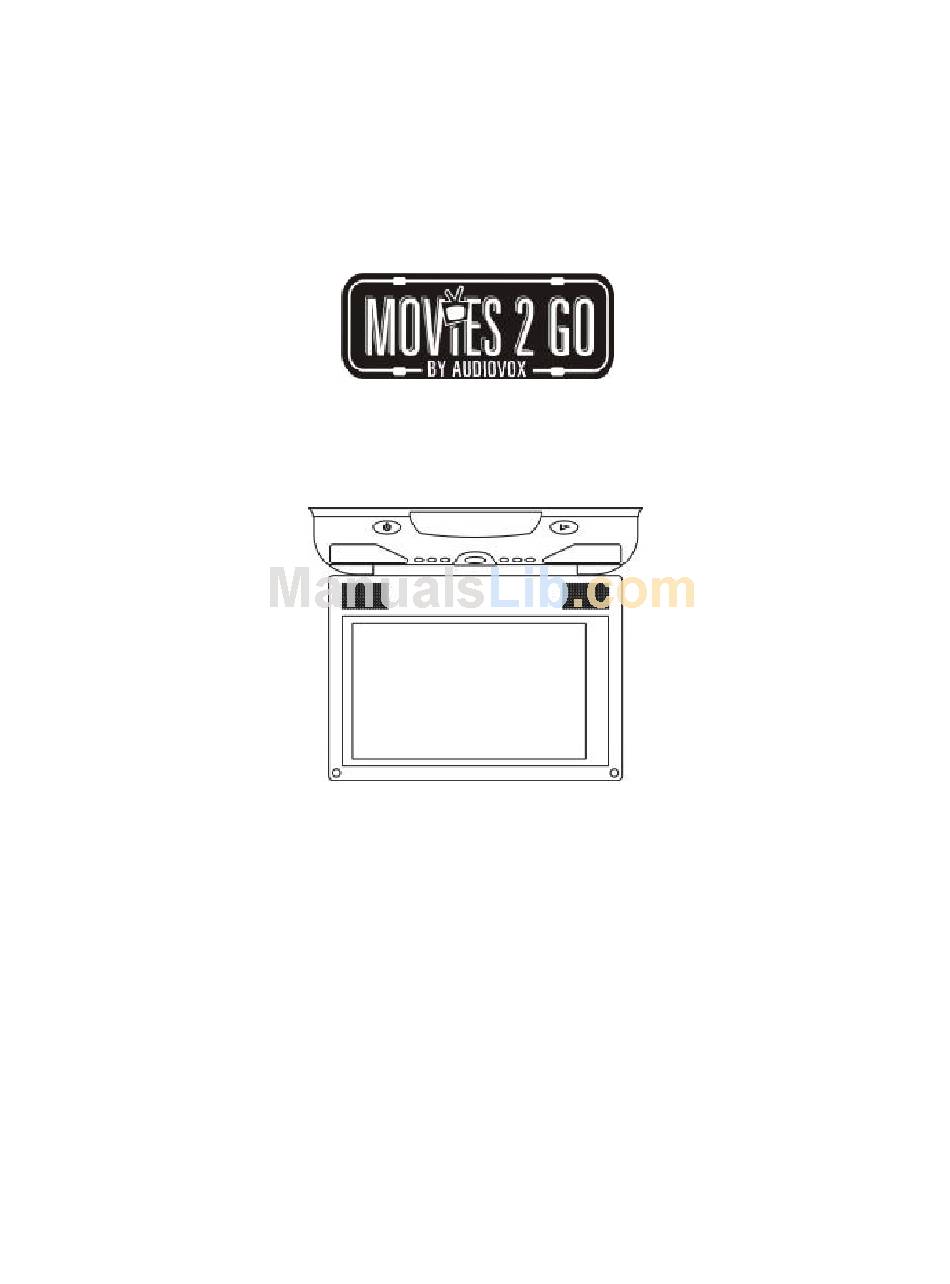

  • Page 1 Owners and Installation Manual MMD70 7" LCD MONITOR & DVD PLAYER...
  • Page 2 Note: This Product incorporates copyright protection technology that is pro- tected by method claims of certain patents and other intellectual prop- erty rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited view- ing uses only unless authorized by Macrovision Corporation.

  • Page 3: Important Notice

    Important Notice An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in “park”...
  • Page 4 A. Introduction Thank you for selecting the MMD70. The main features include a 7" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD) monitor and a built-in DVD player. The unit applies the latest state of the art electronics. The unit is constructed to provide years of reliable, trouble-free service.
  • Page 5 5. Disc Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction. Do not stick paper, tape or glue on the disc. Do not expose the disc to direct sunlight or heat sources such as hot air ducts.

  • Page 6: Installation And Powering

    D. INSTALLATION AND POWERING TOOLS REQUIRED: #2 Philips Screwdriver #1 Philips Screwdriver Utility or Razor Knife or Shears Wire Strippers Upholstery hook tool (for removal of panels as necessary) Electrical Tape Masking Tape Multimeter (to verify 12 volt DC and continuity: Do not use a test light or logic probe) Marker pen –...
  • Page 7 GENERAL INSTALLATION APPROACH: 1) Decide upon system configuration and options that will be installed (i.e.: what components, VCP, Tuner, RF Modulator/external amp, remote headphones, DVD, etc.). 2) Review all manuals to become familiar with electrical requirements and hook ups. 3) Decide upon mounting locations of all components and method of mounting.

  • Page 8: Vehicle Preparation

    Notes :The MMD70 video system is only intended for an overhead, drop down installation. It is not intended for seat back or any other type of mounting. The hinging mechanism is designed for horizontal, drop down use only. VEHICLE PREPARATION: 1) Locate an accessory power source (+12v when key is in the ACC.
  • Page 9 MOUNTING THE MMD70 Figure 2 NOTE: Two of the mounting holes are located under the domelight cov- ers.
  • Page 10 MMD70 1) Make the connections to the vehicle with the 5 pin wiring harness. 2) Connect the 5 pin harness to the mating connector on the Video Monitor. 3) Connect power harness to vehicle's electrical system by tapping into an accessory hot line. 4) Verify all functions of the system before final mounting of the finished assembly.

  • Page 11: Connecting The Dome Lights

    CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs.
  • Page 12 Positive Switched Dome lighting Red / black - Lamp on To 3 pin Black / red - Lamp common connector Violet / brown - Lamp Auto on Monitor Factory Dome light circuit constant +12vdc Negative Switched Dome lighting Red / black - Lamp on To 3 pin Black / red - Lamp common connector...
  • Page 13 E. Controls, Indicators, and Connectors 1. Unit View (Refer to Figure 5) 1) AV 2 In 2) Headphone Jack 3) Auto/Off/On(Dome Light) 4) Power and Dome Light Connector 5) AV1 RCA Jacks(red,white,yellow) 6) AV Output RCA Jacks (red,white,yellow) 7) Dome Lights 8) Power Button 9) Fast Reverse Button 10) STOP Button...
  • Page 14 2. Remote Control View (Refer to Figure 7) Power Button Display Button Angle Button Subtitle Button A-B Button Slow Button Pause Button Fast Reverse Button Stop Button 10) Picture Button 11) DVD /AV1 /AV2 12) Zoom Button 13) Eject Button 14) Numeric Buttons 15) Audio Button 16) Repeat Button...
  • Page 15 G. BASIC OPERATION Turn the unit on/off POWER PLAY Start Playback SLOW Play at 1/2,1/4,1/8, 1/16 times normal speed PAUSE Still Picture (1 time) Stop at the present playing point / STOP (2 times) Stop playing Scan forward at 2, 4, 8, 20 times normal FORWARD speed Scan backward at 2, 4, 8, 20 times normal...

  • Page 16: Display Mode

    H. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. Contents of the menu will vary depending on the disc content.
  • Page 17 4) ANGLE During playback press ANGLE to change the current angle of discs containing muti-angles. (You can see item 8 in Picture 1 change) ‘Angle’ in Display Mode ‘Angle’ Display 5) SUBTITLE During disc playback press SUBTITLE* to select the desired subtitle language.(You can see item 12 and 15 in Picture 1 change) 6) AUDIO During disc playback press AUDIO* to select the desired audio...
  • Page 18 7) ZOOM ‘Zoom’ in Display Mode During playback press ‘ZOOM’ to enlarge the picture by 2x or 3x with the current zoom multiple displayed. 8) REPEAT ‘Zoom’ Display ‘Repeat’ Display...

  • Page 19: Playing Audio Cds

    During playback press ‘REPEAT’ once to repeatedly play the current chapter, press a 2nd time to repeat the current title, press a 3rd time and the repeat function is cancelled and normal playback resumes. Repeat mode sequence:Repeat Chapter/Repeat Title/Off. J. PLAYING AUDIO CDS When playing an audio CD the display will automatically display the disc playback information.

  • Page 20: Using The Repeat Feature

    USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: • Repeat Single- repeats the track that is playing. • Repeat All- repeats the disc that is playing. • As you toggle through the options, the repeat option changes. The selected repeat option loops repeatedly until its turned off.

  • Page 21: Playing A Jpeg File

    4. Use the ( NEXT ) button to move to the next song. Press the (PREVIOUS) button to move to the beginning of the song. USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: •...
  • Page 22 M. SETUP Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit will resume it’s last playback mode. Main ‘SETUP’ Menu Screen 1) Select ‘LANGUAGE’ page using the LEFT/RIGHT button. ‘Language’...
  • Page 23 b. Select ‘Subtitle’ using the UP/DOWN button, then press ENTER to enter the submenu. Select the ‘Subtitle’ language you desire using the UP/DOWN button, then press ENTER/LEFT to confirm the setting and exit. ‘Subtitle’ Display c. Select “Audio” using the UP/DOWN button, then press ENTER to enter the submenu.
  • Page 24 2) Select ‘Video’ Page by using the LEFT/RIGHT button. ‘Video’ Display a. Select ‘TV Display’ using the UP/DOWN button, then press ENTER to enter the submenu. Select the TV display you desire using the UP/DOWN button, then press ENTER/LEFT to confirm the setting and exit.
  • Page 25 b. Select ‘TV Type’ using the UP/DOWN button, then press ENTER to enter the submenu. Select the TV type you desire using the UP/DOWN button, then press ENTER/LEFT to confirm the setting and exit . ‘TV Type’ Display c. Select ‘Angle Mark’ using the UP/DOWN button and then press ENTER to enter the submenu.
  • Page 26 d. Select ‘Last Memory’ using the UP/DOWN button and then press ENTER to enter the submenu. Choose Angle Mark on or off using the UP/DOWN button, then press ENTER/LEFT to confirm the setting and exit. ‘Last Memory’ Display *On: The unit will return to the last position on the disc. *Off: The unit will not return to the last position on the disc.
  • Page 27 3) Select ‘Rating’ by using the LEFT/RIGHT button. ‘Rating’ Display Select ‘Password’ using the UP/DOWN button. Input the password (For the first time use 3308)and press ENTER to unlock the unit. Se- lect ‘Rating’ using the UP/DOWN button and press ENTER repeat- edly to change the rating level you desire.
  • Page 28 N. Playing a Video Game (Refer to Figure 8) Change the source by pressing the DVD/AV1/AV2 button on the remote. AV2* is from the AV IN port on the side of the unit. AV1 is the RCA connectors on the top of the unit. Connect the A/V output from your game system to the RCA inputs (AV1) or the 1/8 (AV2)* input on the side .
  • Page 29 P. Specification Disc format: DVD/CD/MP3 Color system: NTSC/PAL Screen size: 7” Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4V /10kOhm Audio S/N: Better than 60 dB Dynamic range : Better than 85 dB Laser: Semiconductor Laser, Wave Length: 650 nm/790 nm Power source: DC 12V Power consumption: 30 W...

  • Page 30: 12 Month Limited Warranty

    12 MONTH LIMITED WARRANTY Applies to AEC Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12...
  • Page 31 © 2005 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-6985A...
