4 - Trunk Output Timing - Red/White Output: Control of the RED/WHITE trunk
release output wire when trunk release is activated from the transmitter.
Push and Hold - Output is continuously active until transmitter button is
released.
10 Seconds - Output stays active for 10 seconds regardless of length
button press on transmitter.
20 Seconds - Output stays active for 20 seconds regardless of length
button press on transmitter.
Latched until IGN ON - Output stays active until the ignition is turned on.
Latched ON until Button Press - Output stays active until deacvtivated by
transmitter.
5 - Horn Output Timing: Control the minimum horn pulse time in milli seconds,
some vehicle will require a longer pulse to activate the factory horn.
16mS

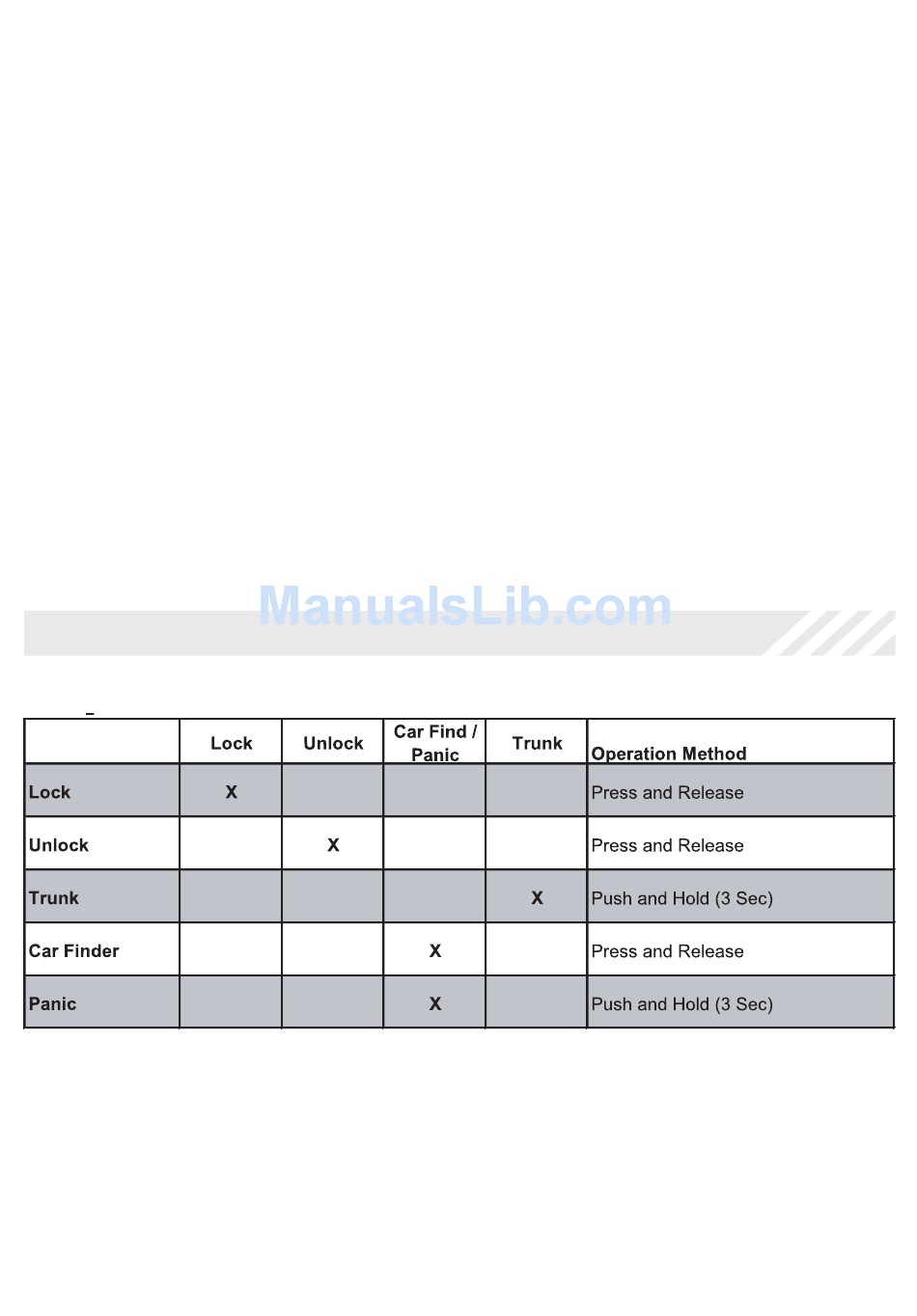

Transmitter Button Functions

ca2051 rev B. 2011 Audiovox Electronics Corporation. All rights reserved.
10mS 30mS 40mS 50mS
13
