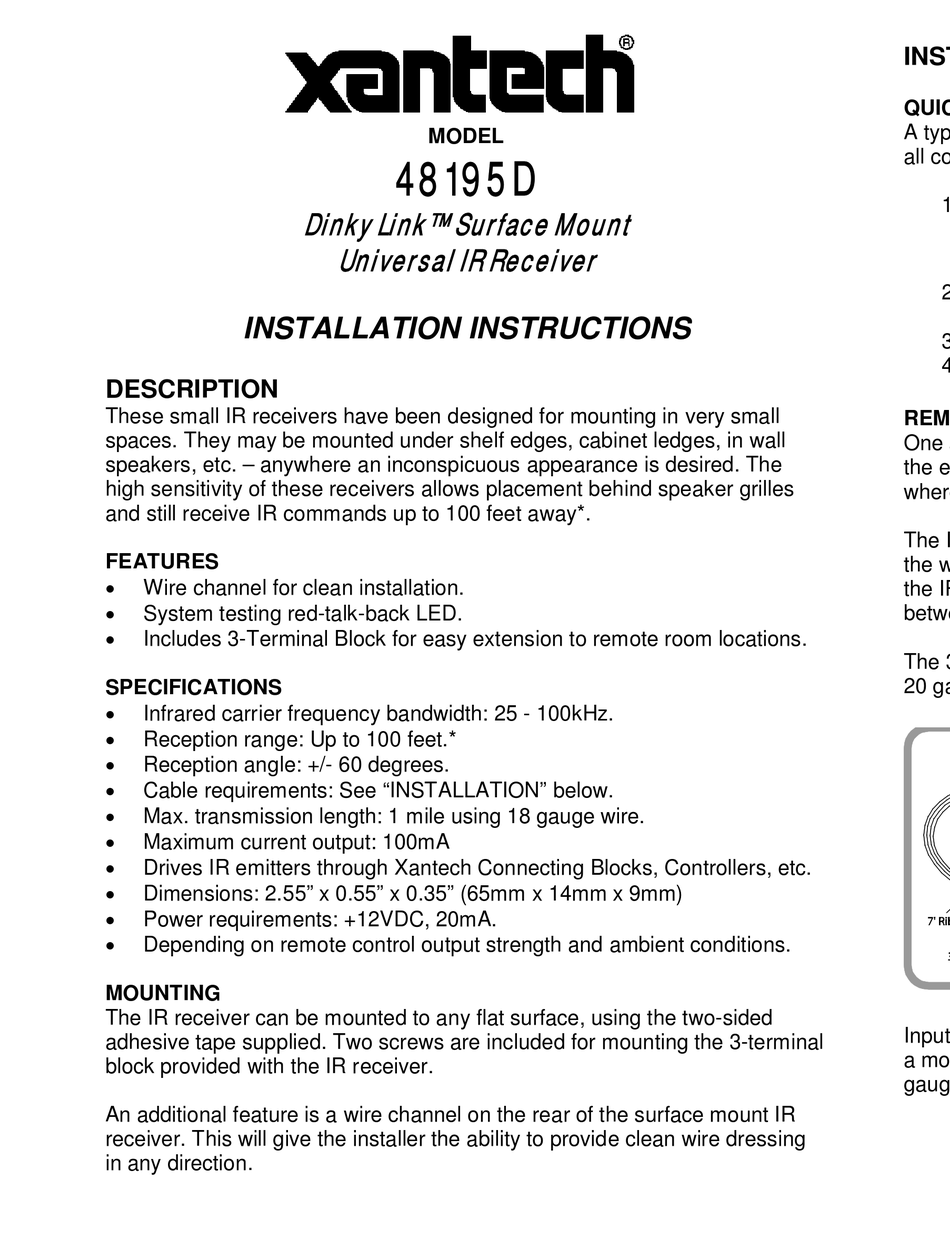

INSTALLATION INSTRUCTIONS
DESCRIPTION
These small IR receivers have been designed for mounting in very small
spaces. They may be mounted under shelf edges, cabinet ledges, in wall
speakers, etc. – anywhere an inconspicuous appearance is desired. The
high sensitivity of these receivers allows placement behind speaker grilles
and still receive IR commands up to 100 feet away*.
FEATURES
Wire channel for clean installation.
System testing red-talk-back LED.
Includes 3-Terminal Block for easy extension to remote room locations.
SPECIFICATIONS
Infrared carrier frequency bandwidth: 25 - 100kHz.
Reception range: Up to 100 feet.*
Reception angle: +/- 60 degrees.
Cable requirements: See "INSTALLATION" below.
Max. transmission length: 1 mile using 18 gauge wire.
Maximum current output: 100mA
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
Dimensions: 2.55" x 0.55" x 0.35" (65mm x 14mm x 9mm)
Power requirements: +12VDC, 20mA.
Depending on remote control output strength and ambient conditions.
MOUNTING
The IR receiver can be mounted to any flat surface, using the two-sided
adhesive tape supplied. Two screws are included for mounting the 3-terminal
block provided with the IR receiver.
An additional feature is a wire channel on the rear of the surface mount IR
receiver. This will give the installer the ability to provide clean wire dressing
in any direction.
MODEL
48195D
Dinky Link™ Surface Mount
Universal IR Receiver
Advertisement
Table of Contents
Related Manuals for Xantech 48195D
Summary of Contents for Xantech 48195D
-
Page 1: Installation Instructions
Max. transmission length: 1 mile using 18 gauge wire. Maximum current output: 100mA Drives IR emitters through Xantech Connecting Blocks, Controllers, etc. Dimensions: 2.55” x 0.55” x 0.35” (65mm x 14mm x 9mm) Power requirements: +12VDC, 20mA. -
Page 2: Sensitivity Adjustment
Counter-Clockwise – Decrease Sensitivity Limited Warranty Xantech® warrants its products to be free of defects in materials or workmanship. This is a Limited Lifetime warranty from the date of purchase by the original consumer. Any products returned to Xantech and found to be defective by Xantech within the warranty period will be repaired or replaced, at Xantech’s option, at no charge. - Page 3 7-foot cable. The 3.5mm stereo type mini plug is connected to the “IR RCVR” jack on the Xantech Connecting Block. IR RECEIVER CABLE WIRING...
- Page 4 INSTALLATION QUICK-START A typical system will use an IR receiver, several emitters, and a power supply all connected to a connecting block. 1. Connect the IR receiver to the “IR RCVR” port on the connecting block. The ‘red’ connector is installed to the ‘red’ plug. Note: In some extended distances, additional 3-conductor may be required and can be connected to the terminals on the connecting block.
