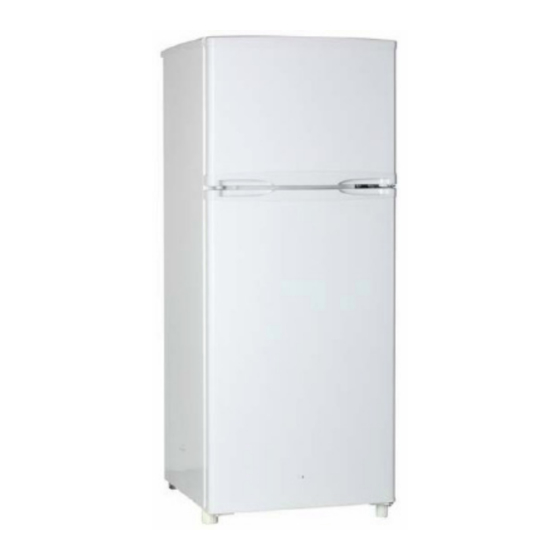

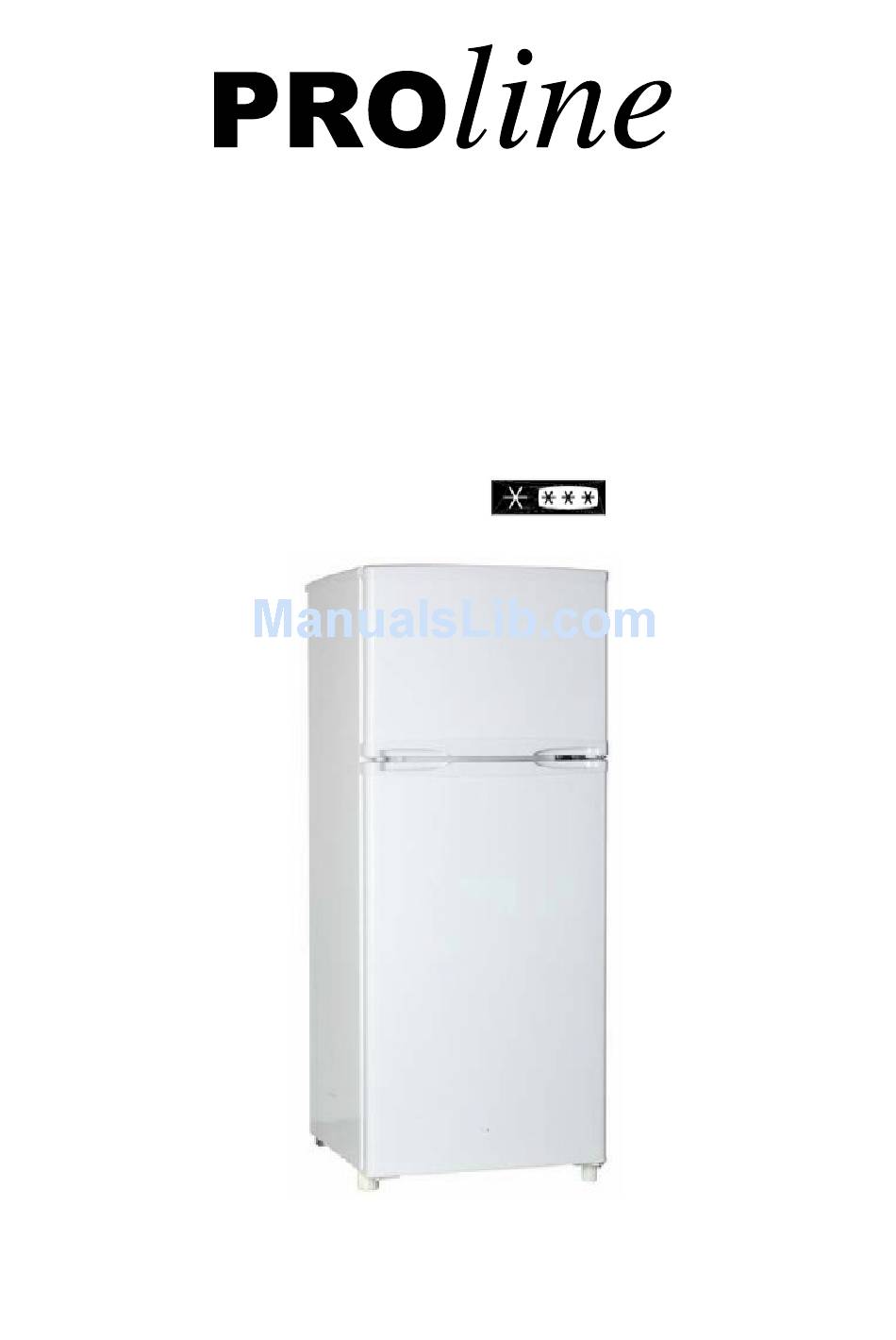

- Page 1 FRIDGE-FREEZER USER’S MANUAL TFP120A PLEASE READ THIS USER’S OPERATION MANUAL CAREFULLY BEFORE USING...
-
Page 2: Names Of Parts
NAMES OF PARTS Freezer Freezer compartment door Thermostat and lamp assembly Door racks Glass shelves Fridge door gasket Leveling feet Note: Compartment design may change due to product improvement, No prior notice will be given. - Page 3 THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.
-
Page 4: Important Safety Information
IMPORTANT SAFETY INFORMATION Make sure the voltage marked on the rating plate matches the supply in your area. The rating plate is located on the base of this appliance. Failure to use the correct voltage will render the guarantee VOID and may damage the appliance. This appliance is intended for domestic use only, any other use may invalidate the warranty and might be dangerous. -
Page 5: Electrical Connection (Uk Only)
ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information. Warning: This appliance must be earthed. The appliance must be connected to a 220 - 240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin plug fitted with a 13-amp fuse. - Page 6 Instructions for use Remove all packing materials and wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 liters (2 pints) of water. Do not use detergents or soaps as they may taint the food.
- Page 7 Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.
- Page 8 Refrigerator defrost process The refrigerator defrosting process is carried out automatically every time the compressor stops. The defrost water drains from the cabinet into a tray placed on the top of the compressor to the rear of the unit where it evaporates. Freezer defrost process Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture...
-
Page 9: Reversing The Doors
Reversing The Doors Before you reverse the refrigerator doors, you should ensure the refrigerator is unplugged and empty and have someone to help you. You will need a cross head screwdriver and adjustable spanner. Remove the four retaining screws Remove the retaining screws and on the rear and top of the top the top hinge, then remove the cover, then remove the top cover. - Page 10 Remove and re-fit the blanking plugs on Replace the central hinge after the middle steel plate from right side to left refitting the lower door, to assist side. Remove the door hinge cap in the top final adjustment, do not fully of the freezer door and insert it on the tighten the hinge screws.
- Page 11 Cleaning and maintenance Before any cleaning or maintenance is carried out you must disconnect the appliance from the mains supply by removing the plug, never remove the plug by pulling on the mains cord. Remove the plug by pulling on the plug itself. It is recommended that when cleaning the appliance, both the inside and outside, can be cleaned using warm water and a little bicarbonate of soda.
- Page 12 If the appliance is not operating correctly: Please check the following points. Is there a power failure? (Check by turning on a house light) Has the fuse blown or has the circuit breaker tripped? Has the door been closed correctly? Check the thermostat has been set correctly.
- Page 13 Do's and Don'ts Do- keep raw meat and poultry below cooked food and dairy products. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding As much air as possible.
- Page 14 Technical data Brand Proline Appliance type Fridge-Freezer Star rating Total gross volume 121L Total storage volume 118L Freezer storage volume Freezing capacity 2.0kg/24h Maximum rated wattage of lamp Rated power input 100W Rated current 0.6A Climate Class + Ambient Range N (+16℃...
-
Page 15: Important Disposal Instructions
IMPORTANT DISPOSAL INSTRUCTIONS As a responsible retailer we care about the environment. As such we urge you to follow the correct disposal procedure for your product and packaging materials. This will help conserve natural recourses and ensure that it is recycled in a manner that protects health and the environment.
