Proline TFP93AW Instruction Manual

Under counter fridge-freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Under Counter Fridge-Freezer
TFP93AW
MODEL:
TFP93ASL
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFP93AW and is the answer not in the manual?

Questions and answers

Related Manuals for Proline TFP93AW

Summary of Contents for Proline TFP93AW

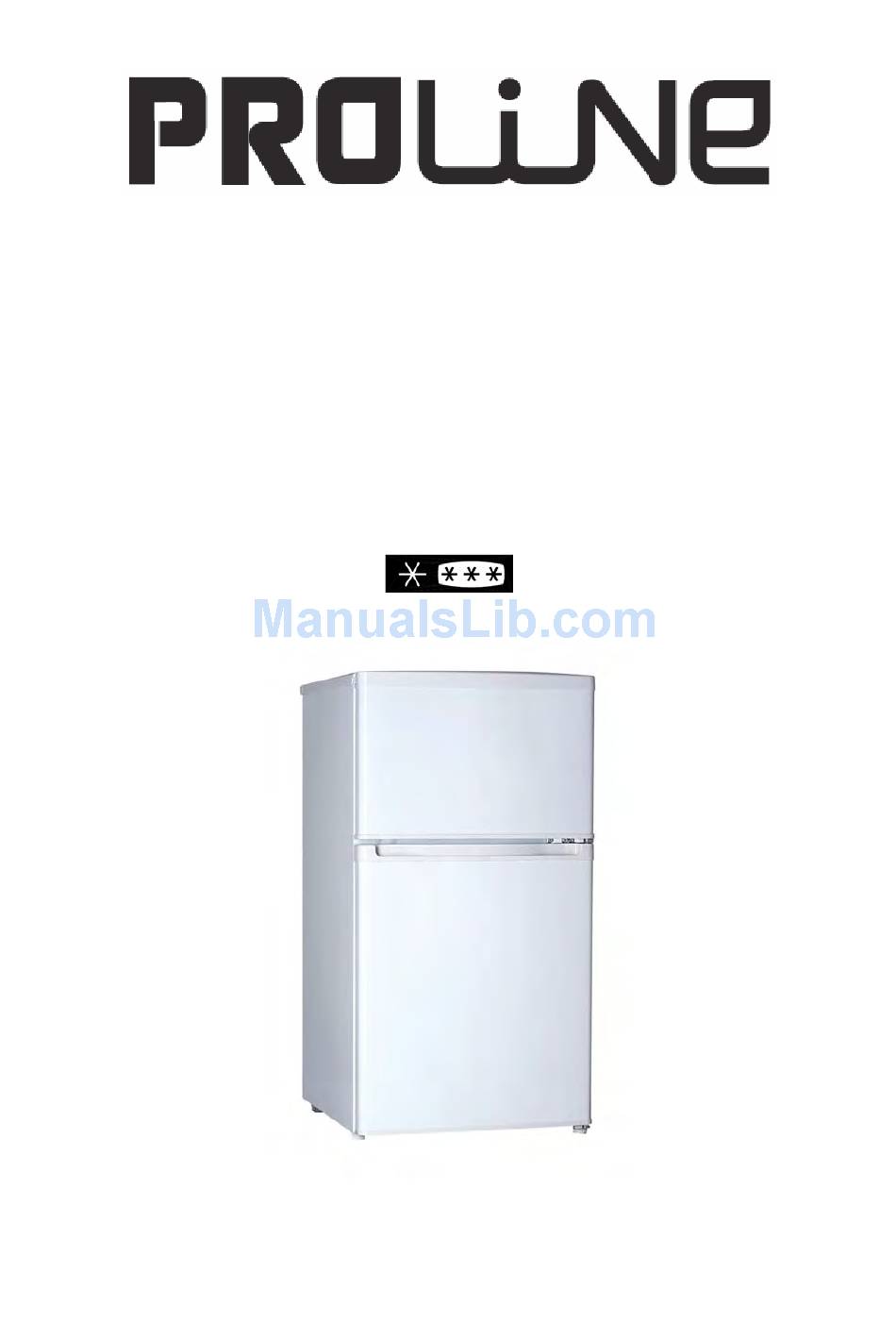

  • Page 1 Under Counter Fridge-Freezer TFP93AW MODEL: TFP93ASL INSTRUCTION MANUAL...
  • Page 2 General Description of Fridge-Freezer 1. Top Cover 2. Thermostat and lamp assembly 3. Glass Shelf 4. Crisper Cover 5. Crisper 6. Levelling Feet 7. Door Shelves 8. Freezer Door Gasket Note: Compartment design may change due to product improvement, NO prior notice will be given.

  • Page 3: Electrical Connection (Uk Only)

    THANK YOU FOR PURCHASING THIS PROLINE PRODUCT This booklet contains the information you will require to install and operate your new appliance. It is important and worthwhile spending time to fully read this booklet so you will understand how to operate the appliance safely and efficiently.
  • Page 4 REFRIGERATOR SAFETY INFORMATION Check that the voltage marked on the rating plate matches that of your local supply. Failure to use the correct voltage will render the guarantee VOID and may cause damage to the appliance. The manufacturer accepts NO responsibility for using any other voltage than that marked on the rating plate.
  • Page 5 This appliance is for refrigerating food and making ice cubes. REFRIGERANT The refrigerating gas contained in the circuit of this appliance is Isobutane (R600a); it causes a low level of pollution but is inflammable. CAUTION: Extreme caution must be used when moving the appliance. WARNINGS: Do not damage the refrigerant circuit.
  • Page 6 Instructions for use Remove all packing materials and check for damage, if the appliance is damaged, do not use the appliance, contact the store where you purchased the appliance. Wash the interior of the appliance using lukewarm water containing a little bicarbonate of soda in the proportion of 1 teaspoon to 1.2 litres (2 pints) of water.
  • Page 7 Storage of fresh food in the refrigerator Food should always be covered tightly with foil, plastic film, placed in bags or stored in airtight containers. This will prevent food from dehydrating and prevent the strong smell of some foods transferring to milder ones. To store raw meat wrap in polythene bags or airtight containers and place on the lowest shelf.
  • Page 8 Freezer defrost process Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal.
  • Page 9 Changing the light bulb Note: The light bulb is not covered by the warranty. 1. Before carrying out the bulb replacement always switch off and disconnect the electrical supply. 2. Use a small screwdriver to remove the screw holding the lamp cover onto the thermostat housing.

  • Page 10: Reversing The Doors

    REVERSING THE DOORS Reversing the doors may make installation more convenient. Ensure that the appliance is unplugged and empty. We recommend that you have someone to assist you. Tools required: Phillips style screwdriver Flat bladed screwdriver Note: to take the lower hinge off it is necessary to tilt the appliance backward. You should rest the refrigerator on something solid.
  • Page 11 5. Before Re-fitting the doors, remove the limiting pieces from the upper door and lower door, then insert the new limiting pieces on the opposite sides (provided by manufacturer and kept on the plastic bag for manual). Ensure the new limiting pieces are fixed securely.

  • Page 12: Maintenance

    Maintenance Wipe the inner and outer surface of the refrigerator and its accessories with a wet cloth. If they are too dirty, clean them with a mild detergent and water then dry them with clean cloth. After this, a small quantity of glass wax is recommended to polish the refrigerator surface with a flannel.
  • Page 13 Before calling for service Please check the following points: 1. The refrigerator is not working Check the plug is inserted correctly into the wall socket Check there is power to the wall socket by plugging in another appliance, if the other appliance works, check the fuse in the appliance plug.
  • Page 14 Do's and Don'ts Do- keep raw meat and poultry below cooked food and dairy products. Do- Leave lettuce, cabbage, parsley and cauliflower on the stem. Do- Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding As much air as possible.

  • Page 15: Technical Data

    Technical data Brand Proline Appliance type Fridge-Freezer Type Star rating Total gross volume Total storage volume Freezer storage volume Freezing capacity 2.0kg/24h Maximum rated wattage of lamp Rated power input 100W Rated current 0.7A Climate Class + Ambient Range N (+16℃ to +32℃)
  • Page 16 If something doesn't seem to work If there is something about your appliance which you do not understand and you live in the UK, you can phone our help line during normal office hours on: 0844 8009595 Calls are charged at standard rates. We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

This manual is also suitable for:

Tfp93asl
