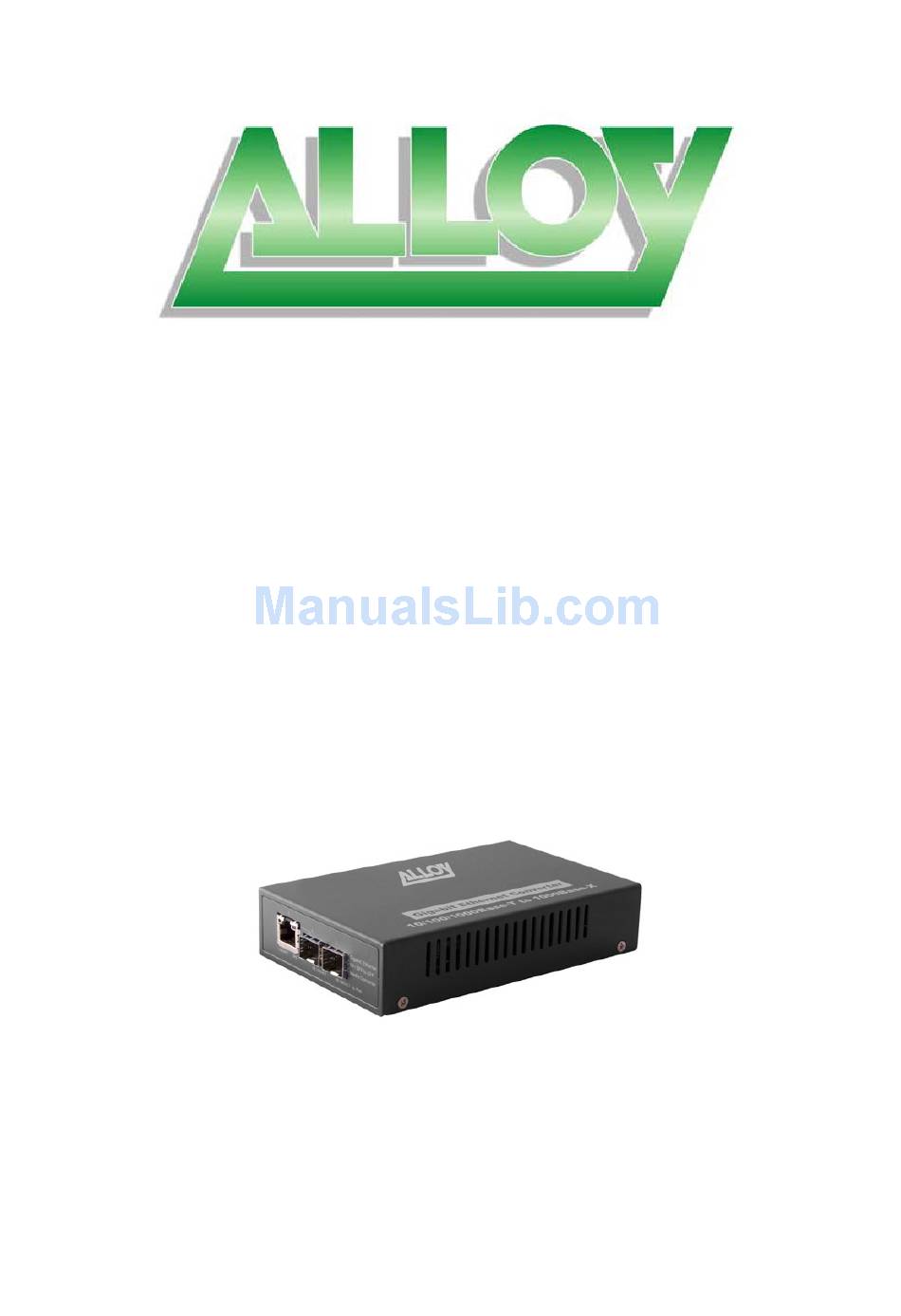

Page 1: User Manual
GMC1000 User Manual User Manual GMC1000 10/100/1000 Base-T/SFP to SFP Gigabit Media Converter Version 1.0 October 2008 Alloy Computer Products Pty Ltd Copyright ©2008... - Page 2 Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. European Community (CE) Electromagnetic Compatibility Directive This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN60555‐2 and the Generic European Immunity Standard EN50082‐1. EMC: EN55022(1988)/CISPR‐22(1985) class A EN60555‐2(1995) class A EN60555‐3 IEC1000‐4‐2(1995) 4K V CD, 8KV, AD IEC1000‐4‐3(1995) 3V/m IEC1000‐4‐4(1995) 1KV – (power line), 0.5KV – (signal line) Australian C‐Tick Compliance. This equipment is compliant with the required Australian C‐Tick standards Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 3 GMC1000 User Manual 1. Introduction The GMC1000 provides modular Gigabit Ethernet Media Conversion. With a 10/100/1000 Copper Interface, Paired with a Modular SFP interface, Converting to a second SFP Interface. This Flexible design provides for Media Conversion from Copper 10Mbps, 100Mbps and 1000Mbps to SFP in Multimode or Singlemode ‐ or ‐ Fibre to Fibre in Multimode or Singlemode. Fig 1. View of the GMC1000 2. Checklist Before you start installing your media converter, verify that the package contains the following: • The GMC1000 Media Converter • AC – DC Power Adapter • This Users Manual CD‐ROM Please notify your supplier immediately if any of the aforementioned items are missing or damaged. Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 4 MGBIC‐SLC70 Mini‐GBIC, Single Mode Fibre (LC), 1550nm. 70Km (ZX) MGBIC‐SLC120 Mini‐GBIC, Single Mode Fibre (LC), 1550nm. 120Km (EZX) MGBIC‐WDMS3.20 Mini‐GBIC, Single Mode Fibre WDM, 1310nm. 20Km MGBIC‐WDMS5.20 Mini‐GBIC, Single Mode Fibre WDM, 1550nm. 20Km MGBIC‐WDMS3.40 Mini‐GBIC, Single Mode Fibre WDM, 1310nm. 40Km MGBIC‐WDMS5.40 Mini‐GBIC, Single Mode Fibre WDM, 1550nm. 40Km MGBIC‐CWDM‐70 Mini‐GBIC, CWDM Single Mode Fibre (LC), 1470nm ‐ 1610nm. 70Km Note: 1000Mbps Single Fibre WDM transceiver is designed with Wavelength Division ⎯ Multiplexing (WDM) technology that transports bi‐directional full duplex signals over a single fibre simultaneously. and must be installed in pairs, i.e., MGBIC‐WDMS3.20 MGBIC‐WDMS5.20 MGBIC‐ ⎯ at one end and at the other. WDMS3.20 MGBIC‐WDMS5.20 Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 5 GMC1000 User Manual 4. LED Desciption LED Color Function PWR Green Lit when +5V power is present Lit when fibre connection is good P2 SFP LNK/ACT Green Blinks when any traffic is present Lit when fibre connection is good P1 SFP LNK/ACT Green Blinks when any traffic is present Green: Lit when 1000Base‐T is active Green/ P1 TP SPD Amber: Lit when 100Base‐TX is active Amber OFF: when 10Base‐T is active Lit when TP connection is good P1 TP LNK/ACT Green Blinks when any traffic is present Fig 2. Front and Rear Panel of the GMC1000 Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 6 AUTO TP FORCE Fig. 3 SW1—Bit 1, 2 Configuration and Setting SW1‐1 LFP function: LFP ON (default) or OFF SW1‐2 TP port mode: AUTO (default) or FORCE 1000SX/LX (P2 SFP) Fibre 1000Base-T Network Network (P1 SFP) TP/SFP- (P1 TP) Fig. 4 Basic Network Configuration Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 7 (P2 SFP) Fiber Network (P1 SFP-Bidi) TP/SFP- (P1 TP) (P2 SFP-Bidi) 1000SX/LX (P1 SFP) Fiber TP/SFP- Network (P1 TP) Fig. 4 LFP Diagram Alloy Computer Products Pty Ltd Copyright ©2008...
- Page 8 • Data Transfer Rate: Speed Forwarding Rate 1000Mbps 1,488,000 PPS 100Mbps 148,800 PPS 10Mbps 14,880 PPS • TP: 10/100/1000FDX/HDX with NWay auto‐negotiation Fibre: 1000FDX • Power Requirement: 0.9A up @+5VDC • Power Consumption: 3.6W • Ambient Temperature: 0° to 40°C • Humidity: 5% to 90% • Dimensions : 140.7(W) x 87.7(D) x 29.4(H) mm Alloy Computer Products Pty Ltd Copyright ©2008...
