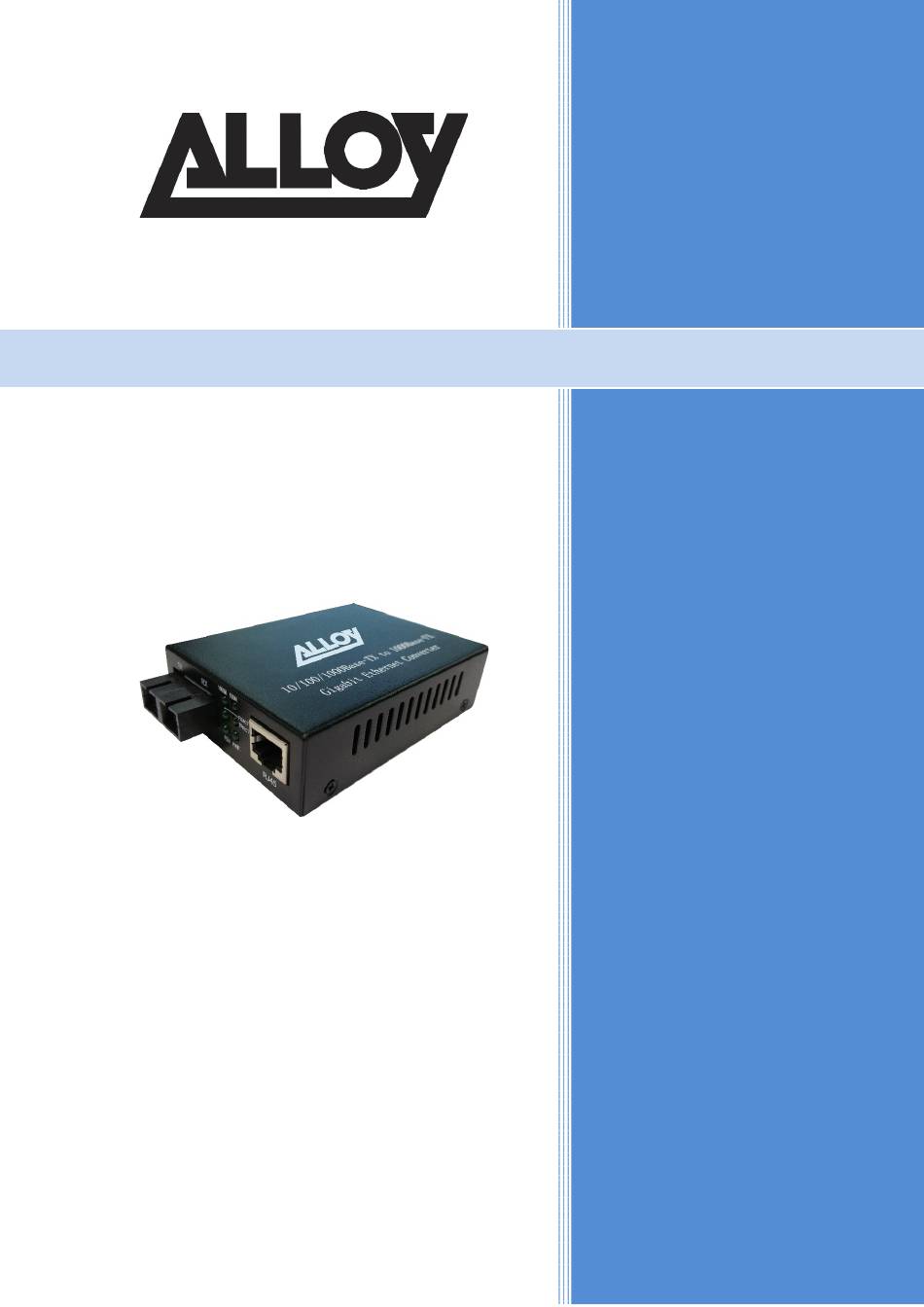

- Page 1 AC Series Gigabit Ethernet Media Converters AC1000SC AC1000SFP AC1000SC.20 AC1020SC.20 User Manual Version: 1.0.1 October 2016...
- Page 2 A EN60555-3 IEC1000-4-2(1995) 4K V CD, 8KV, AD IEC1000-4-3(1995) 3V/m IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line) Australian RCM Compliance. This equipment is compliant with the required Australian RCM standards Alloy Computer Products Pty Ltd Copyright ©2016...
- Page 3 AC1000xx User Manual Introduction Alloy’s AC1000 series are the latest edition to the Alloy media converter family. With a cut down feature set from the GCR2000 series, the AC1000 series is designed for price sensitive markets that do not require the added feature set found on the GCR2000 series.
- Page 4 For use in the ACC1400: ⇒ Slide the media converter into one of the spare slots on the ACC1400 chassis. 1000FX Fibre TP-to-1000FX Network Converter 10/100/1000Base-TX Network Fig. 1 Basic Network Connection Alloy Computer Products Pty Ltd Copyright ©2016...
- Page 5 (Converter DC Current Consumption: 2A when operation at full load) Fig. 4 DC+5V Input Jack and Dimension Keep the AC-DC adapter as spare parts when Media Converter is installed in a 19-inch Media Converter Rack. Alloy Computer Products Pty Ltd Copyright ©2016...
- Page 6 Power Requirement: Standalone: 1A@+5VDC from AC-DC Adapter • Rackmount: ACC1400 Chassis Ambient Temperature: • -10° to 55°C Humidity: 5% to 90% • • Dimensions: 26(H) × 70(W) × 94(D) mm Weight: • 225 grams Alloy Computer Products Pty Ltd Copyright ©2016...
