- Page 1 POE2000 Series 10/100/1000Base-TX to 1000Base-SX/LX and SFP Converter POE Power Provider Version 1.01 Date: October 2009...
- Page 2 Caution Electronic Circuit devices are sensitive to static electricity. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your switch, always: Touch the metal chassis of your computer to ground the static electrical charge before you handle the switch.
-
Page 3: Model Description
If the Copper or Fibre link fails, the converter forces the link status of the connecting device to also fail. The POE2000 Series of media converters are designed for applications where the supply of power to attached Ethernet devices needs to be via the network connection, rather than by a power cord. -
Page 4: Installing The Converter

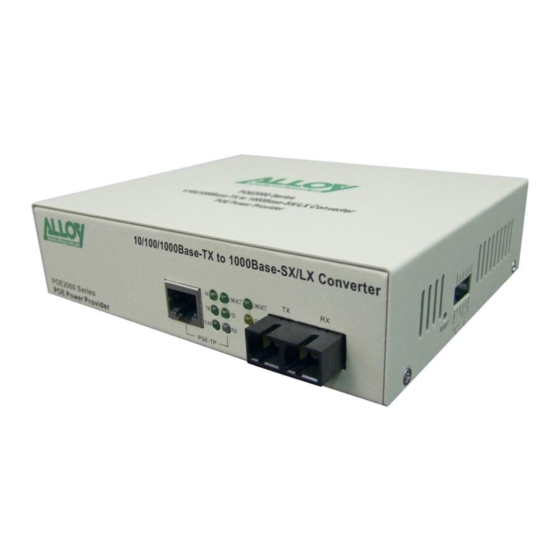

3. Checklist Before you start installing the POE converter, please verify that the package contains the following items. The POE2000 Series AC Power Cord CD containing this manual Please notify your sales representative if any of the above items are missing or damaged. - Page 5 Fig. 1 View of the POE2000 Series Media Converter Fig. 2 Example connection between POE2000, PD device and Fibre Cable 100FX Fibre Network POE100 Series Media Converter VOIP PoE Phone, (PoE PD) or PoE Splitter Fig. 3 POE200 Series to PD Device or POE Splitter (VOIP Phone)
- Page 6 10/100/1000Base-TX to 1000Base-SX/LX Converter POE2000 Series POE Power Provider Fig. 4 POE2000 Series Media Converter Front Panel Fig. 5 POE2000 Series Media Converter Rear Panel Fig. 6 Pairs used for transmitting power over Ethernet Cable. Note: The pins used for delivering power to the Powered Device follow the IEEE 802.3af standard.
- Page 7 5. WDM Single Fibre Model The POE2000 Series media converter has an optional Wavelength Division Multiplexing (WDM) Model that can transport bi-directional full duplex signals over a single fibre simultaneously. Single Fibre Model TX, RX Wavelength TX (Transmit) 1310nm 1310nm Single Mode 20Km...
- Page 8 Remote Switch Switch Station Fibre Cable Fig. 7 The status as Fibre Cable B or C is broken Remote GbE Fibre Switch Station Switch Fibre Cable Fig. 8 Normal status via LFP converter Remote GbE Fibre Switch Station Switch Fibre Cable Fig.
-
Page 9: Led Description
7. LED Description The following table describes the LED’s located on the POE200 Series media converter. Colour Function Lit when fibre connection is present FX LNK/ACT Green Blinks when fibre data is present Lit when TP connection is present TP LNK/ACT Green Blinks when TP data is present Green Lit when TP speed is 1000Mbps... -
Page 10: Technical Specifications
9. Cable Distances and Limitations TP Cable Limitations: Cat 5 up to 100m Fibre Cable Limitations: Multi-Mode Fibre Multi-Mode Fibre Mode 62.5/125μm 50/125μm Bandwidth Bandwidth Distance Distance MHz-Km MHz-Km 1000SX (SC/LC) 220m 500m 850nm 275m 550m 1000LX (SC/LC) Single Mode Fibre 9/125μm 1310nm/ Single Mode transceiver 1310nm: 10Km 1550nm...
