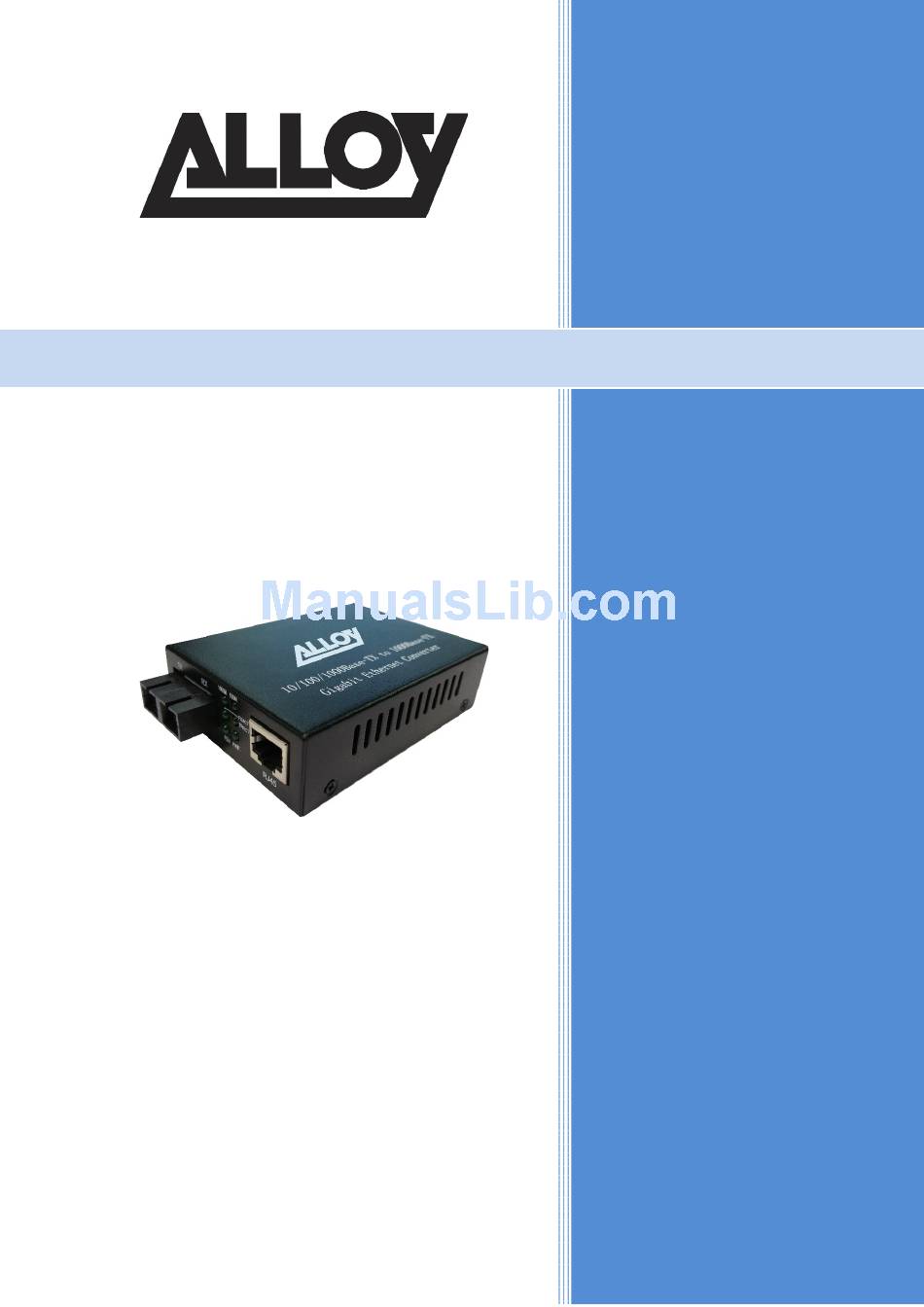

Page 1: User Manual
AC Series Fast Ethernet Media Converters AC100SC AC100ST AC100SFP AC100SC.20 AC120SC.20 User Manual Version: 1.0.1 October 2016... - Page 2 A EN60555-3 IEC1000-4-2(1995) 4K V CD, 8KV, AD IEC1000-4-3(1995) 3V/m IEC1000-4-4(1995) 1KV – (power line), 0.5KV – (signal line) Australian RCM Compliance. This equipment is compliant with the required Australian RCM standards Alloy Computer Products Pty Ltd Copyright ©2016...
-
Page 3: Model Description
AC100xx User Manual Introduction Alloy’s AC100 series are the latest edition to the Alloy media converter family. With a cut down feature set from the FCR200 series, the AC100 series is designed for price sensitive markets that do not require the added feature set found on the FCR200 series. -
Page 4: Installation
For use in the ACC1400: ⇒ Slide the media converter into one of the spare slots on the ACC1400 chassis. 100FX Fibre TP-to-100FX Network Converter 10/100Base-TX Network Fig. 1 Basic Network Connection Alloy Computer Products Pty Ltd Copyright ©2016... -
Page 5: Led Description
(Converter DC Current Consumption: 2A when operation at full load) Fig. 11 DC+5V Input Jack and Dimension Keep the AC-DC adapter as spare parts when Media Converter is installed in a 19-inch Media Converter Rack. Alloy Computer Products Pty Ltd Copyright ©2016... -
Page 6: Technical Specifications
Power Requirement: • Standalone: 1A@+5VDC from AC-DC Adapter Rackmount: ACC1400 Chassis • Ambient Temperature: -10° to 55°C Humidity: • 5% to 90% Dimensions: 26(H) × 70(W) × 94(D) mm • • Weight: 225 grams Alloy Computer Products Pty Ltd Copyright ©2016...
