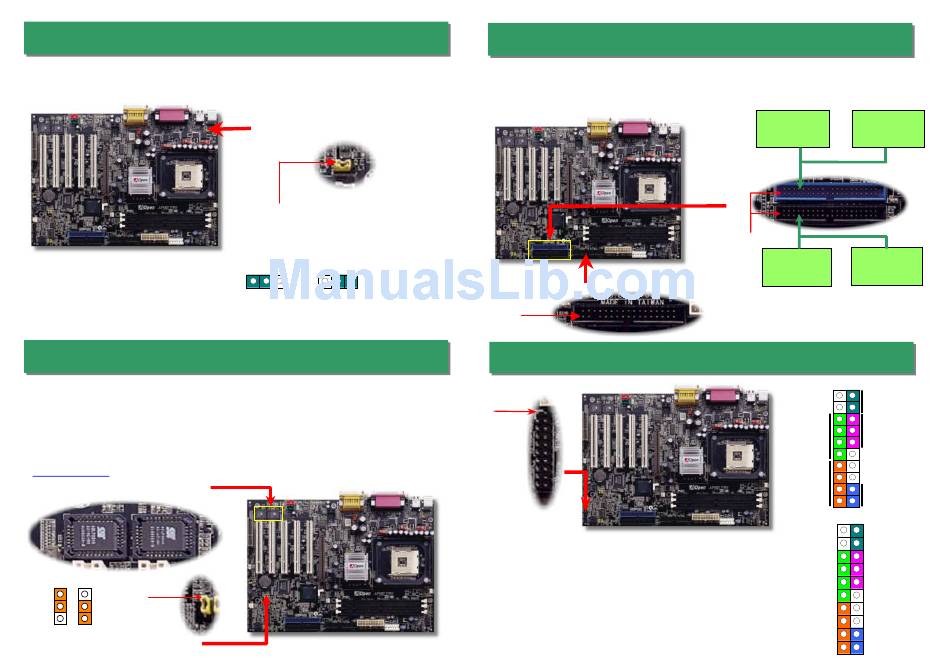

6. JP28 Keyboard/Mouse Wake-up Jumper

This motherboard provides keyboard and mouse wake-up functions. You can use the
JP28 to enable or disable this function.
7. Die-Hard BIOS (Optional)
Recently, many viruses have been found that they may destroy bios code and data area.
Therefore, this motherboard implements a very effective hardware protection method that
does not involve any software or BIOS coding, hence it is 100% virus free. You may
restore the originally mounted BIOS with 2
fails to act normally. This motherboard comes with one BIOS ROM, you may contact our
local distributor or reseller for purchasing the extra BIOS ROM. Please visit our website:
www.aopen.com for details.
1 1
Pin 1
Normal Rescue
(Default)
JP28
Pin 1
KB/Mouse Wake-up
1
1
Disable
Enable
(Default)
nd
BIOS ROM by setting JP30 to pin 2-3 if it

8. Connecting IDE and Floppy Cables

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD and IDE
connector. The blue connector is IDE1 for clear identification. Be careful of the pin1
orientation. Wrong orientation may cause system damage.
Pin 1

9. Connecting Front Panel Cable

Pin 1
Attach the power LED, speaker, and reset switch connectors
to the corresponding pins. If you enable "Suspend Mode"
item in BIOS Setup, the ACPI & Power LED will keep
flashing while the system is in suspend mode.
Locate the power switch cable from your ATX housing. It is
2-pin female connector from the housing front panel. Plug
this connector to the soft-power switch connector marked
SPWR.
Primary
Slave (2nd) Master (1st)
ATA 33/66/100 IDE
Connector
Pin 1
Secondary Secondary
Master (3rd)
Slave (4th)
FDD Connector
1
Power Switch
ACPI & Power LED
IDE LED
SPEAKER
RESET
1
NC
NC
+5V
IDE LED
IDE LED
+5V
+5V
GND
NC
SPEAKER
Primary
SPWR
GND
ACPI & PWR LED
GND
+5V
NC
NC
GND
RESET
GND
