Jp14 Clear Cmos; Jp28 Keyboard/Mouse Wake-Up Jumper - AOpen AX4GER Easy Installation Manual

Everything you need to boot this
motherboard is included in this
Easy Installation Guide. For more
information, a complete
User's Manual can be found in the
Bonus Pack CD. Thanks for the
help of saving our earth.
This Motherboard x1
This Easy Installation Guide x1
80-wire IDE Cable x1
Floppy Disk Drive Cable x1
Retention Module x1
I/O Shield x1
Bonus Pack CD x1
S/PDIF Module x1 (User Upgrade Optional)
PART NO: 49.8AE03.E01 DOC. NO: AX4GERN-EG-E0209A

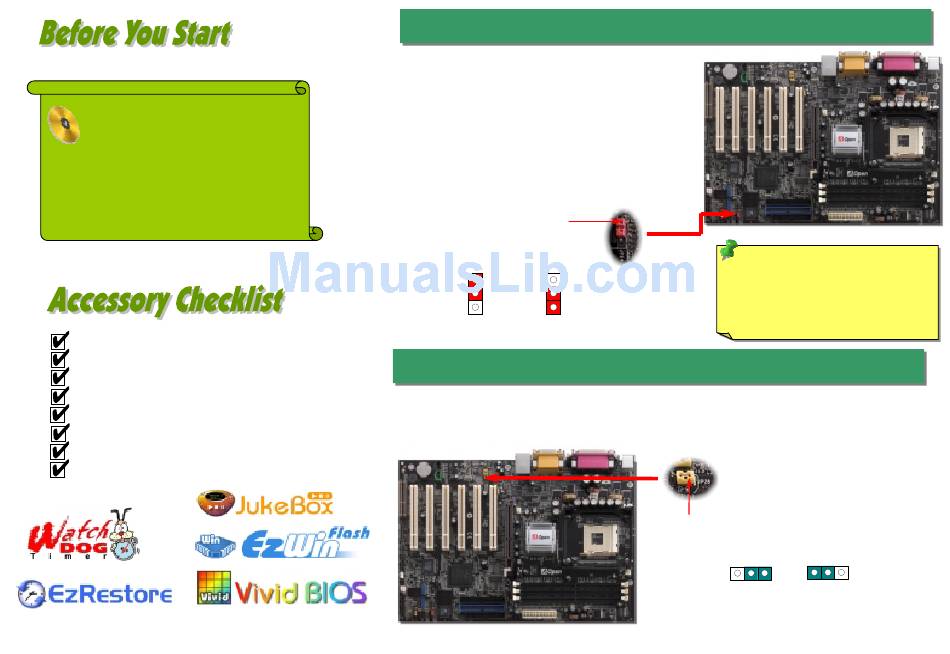

You can clear CMOS to restore system default setting. To
clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by shorting pin 1 & pin 2.
Online
5. Connect ATX power cable back to connector PWR2.
This motherboard provides keyboard / mouse wake-up function. You can use JP28 to enable or disable this
function, which could resume your system from suspend mode with keyboard or mouse installed. The factory
default setting is set to "Disable"(1-2), and you may enable this function by setting the jumper to 2-3.

1. JP14 Clear CMOS

Pin 1
1
1
Normal Operation Clear CMOS
(default)

2. JP28 Keyboard/Mouse Wake-up Jumper

Tip: When should I Clear CMOS?
1. Boot fail because of overclocking...
2. Forget password...
3. Troubleshooting...
JP28
KB/Mouse Wake-up
Pin1
1
Disable Enable
(Default)
