Summary of Contents for IBASE Technology MI811F Series

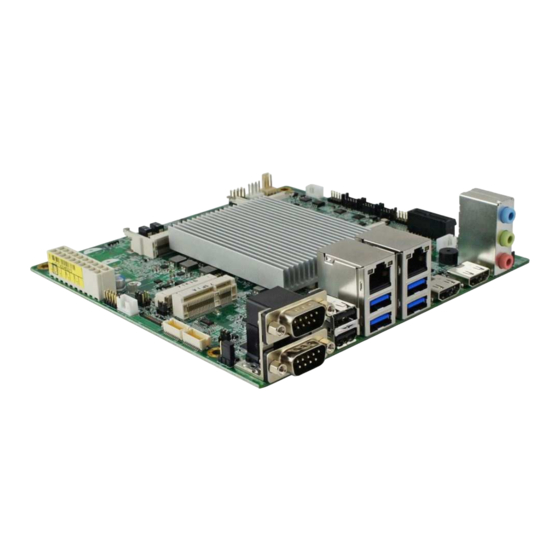

- Page 1 MI811F Series ® ® ® Intel Pentium & Celeron Mini-ITX Motherboard User’s Manual Version 1.4 (July 2020)
- Page 2 No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of IBASE Technology, Inc. (hereinafter referred to as “IBASE”). Disclaimer IBASE reserves the right to make changes and improvements to the products described in this document without prior notice.
-
Page 3: Compliance
0.1% by weight (1000 ppm) except for cadmium, limited to 0.01% by weight (100 ppm). • Lead (Pb) • Mercury (Hg) • Cadmium (Cd) • Hexavalent chromium (Cr6+) • Polybrominated biphenyls (PBB) • Polybrominated diphenyl ether (PBDE) MI811F Series User’s Manual... -
Page 4: Important Safety Information
Danger of explosion if the internal lithium-ion battery is replaced by an incorrect type. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions or recycle them at a local recycling facility or battery collection point. MI811F Series User’s Manual... -
Page 5: Warranty Policy
Software in use (such as OS and application software, including the version numbers) If repair service is required, you can download the RMA form at http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the form and contact your distributor or sales representative. MI811F Series User’s Manual... -
Page 6: Table Of Contents
COM1 RS-232/422/485 Port & COM2 RS-232 Port (CN2) .. 25 2.5.3 Dual USB 2.0 Port (CN3) ............ 26 2.5.4 Dual USB 3.0 Port & LAN Port (CN4, CN5) ......26 2.5.5 HDMI Port (CN6, CN7) ............27 MI811F Series User’s Manual... - Page 7 Introduction ..................42 ® Intel Chipset Software Installation Utility ..........42 VGA Driver Installation...............44 HD Audio Driver Installation ...............46 ® Intel Trusted Execution Engine Drivers Installation ......47 ® Intel Serial IO Drivers Installation .............49 LAN Drivers Installation ..............51 MI811F Series User’s Manual...
- Page 8 South Cluster Configuration ..........68 Security Settings ................73 Boot Settings ..................76 Save & Exit Settings ................77 Appendix ..................79 I/O Port Address Map ................ 80 Interrupt Request Lines (IRQ) ............83 Watchdog Timer Configuration ............85 viii MI811F Series User’s Manual...
-
Page 9: Chapter 1 General Information
Chapter 1 General Information The information provided in this chapter includes: • Features • Packing List • Optional Accessories • Specifications • Block Diagram • Board Overview • Board Dimensions... -
Page 10: Introduction
HDMI), and eDP / 24-bit dual channel LVDS • 2 x GbE LAN, 4 x USB 3.0, 6 x USB 2.0, 4 x COM, 2 x SATA III, 1 x PCIe (1x), 2 x Mini-PCIe slot • Configurable watchdog timer and digital I/O MI811F Series User’s Manual... -
Page 11: Packing List
SATA-53 for DC-In power connector) • COM cable (PK3K) • Disk (including chipset drivers and flash memory utility) • This User’s Manual Optional Accessories IBASE provides optional accessories as follows: • Audio cable (Audio-18) • USB 2.0 cable (USB29) MI811F Series User’s Manual... -
Page 12: Specifications
ATX Power DC-In ATX Power DC-In Power 12 ~ 24V 12 ~ 24V Requirement Watchdog Yes (256 segments, 0, 1, 2…255 sec / min) Timer AMI BIOS BIOS iSmart H/W Monitor Smart EuP/ErP wide temperature Control MI811F Series User’s Manual... - Page 13 • COM3 & COM4: RS-232 only (via on-board box-headers) 2 x SATA III SATA (one is shared with the mini-PCIe slot (full-size) for mSATA) • Line-In • Audio Line-Out • Microphone-Input 4-In & 4-Out Digital IO MI811F Series User’s Manual...
- Page 14 Operation: 0 ~ 60 °C (32 ~ 140 °F) Temperature • Storage: -20 ~ 80 °C (-4 ~ 176 °F) Relative 0 ~ 90 %, non-condensing at 60 °C Humidity All specifications are subject to change without prior notice. MI811F Series User’s Manual...
-
Page 15: Block Diagram
General Information Block Diagram MI811F Series User’s Manual... -
Page 16: Overview
Overview Top View Photo of MI811F (ATX power) ＊The photos above are for reference only. Some minor components may differ. MI811F Series User’s Manual... - Page 17 General Information I/O View Name Name HDMI Port COM1 RS-232/422/485 Port (given the precedence over the DVI-D connector, J11) COM2 RS-232 Port HDMI Port USB 2.0 Port Line-In LAN Port (GbE) Line-Out USB 3.0 Port Microphone-Input MI811F Series User’s Manual...
-
Page 18: Dimensions
Dimensions 165.1 33.02 10.16 35.52 31.05 28.38 MI811F Series User’s Manual... -
Page 19: Chapter 2 Hardware Configuration
Chapter 2 Hardware Configuration This section provides information on jumper settings and connectors on the MI811F in order to set up a workable system. On top of that, you will also need to install crucial pieces such as the CPU and the memory before using the product. The topics covered are: •... -
Page 20: Essential Installations Before You Begin
Gently push the module in an upright position until the clips of the slot close to hold the module in place when the module touches the bottom of the slot. To remove the module, press the clips outwards with both hands, and the module will pop-up. MI811F Series User’s Manual... -
Page 21: Setting The Jumpers
When two pins of a jumper are encased in a jumper cap, this jumper is closed , i.e. turned On . When a jumper cap is removed from two jumper pins, this jumper is open , i.e. turned Off . MI811F Series User’s Manual... -
Page 22: Jumper & Connector Locations
Jumper & Connector Locations Board diagram of MI811F Note: J5 is only available for MI811F-420 & MI811F-335 (ATX power types). J6, J14, and J15 are only available for MI811F-420D & MI811F-335D (DC-In power types). MI811F Series User’s Manual... - Page 23 Hardware Configuration Board diagram of MI811F MI811F Series User’s Manual...
-
Page 24: Jumpers Quick Reference
Panel Output Selection Panel Backlight Control Selection ME Register Clearance CMOS Data Clearance eDP Backlight Power Selection eDP Panel Power Selection JP10 Factory Use Only 2.4.1 LVDS Panel Power Selection (JP1) Function Pin closed Illustration 3.3V (default) MI811F Series User’s Manual... -
Page 25: Panel Output Selection (Jp3)
Hardware Configuration 2.4.2 Panel Output Selection (JP3) Function Pin closed Illustration eDP Panel LVDS Panel (default) MI811F Series User’s Manual... -
Page 26: Panel Backlight Control Selection (Jp4)
2.4.3 Panel Backlight Control Selection (JP4) Function Pin closed Illustration 3.3V Open (default) Close MI811F Series User’s Manual... -
Page 27: Me Register Clearance (Jp6)
Hardware Configuration 2.4.4 ME Register Clearance (JP6) Function Pin closed Illustration Normal (default) Clear ME MI811F Series User’s Manual... -
Page 28: Cmos Data Clearance (Jp7)
2.4.5 CMOS Data Clearance (JP7) Function Pin closed Illustration Normal (default) Clear CMOS MI811F Series User’s Manual... -
Page 29: Edp Backlight Power Selection (Jp9)
Hardware Configuration 2.4.6 eDP Backlight Power Selection (JP9) Function Pin closed Illustration (default) MI811F Series User’s Manual... -
Page 30: Edp Panel Power Selection (Jp10)
2.4.7 eDP Panel Power Selection (JP10) Function Pin closed Illustration 3.3V (default) MI811F Series User’s Manual... -
Page 31: Connectors Quick Reference
J14, J15 Front Panel Setting Connector DDR3L SO-DIMM Slot J10, J13 Amplifier Connector Audio Connector J18 (COM4), COM3 & COM4 RS-232 Port J19 (COM3) Fan Connector CPU_FAN1, SYS_FAN1 Digital I/O Connector Factory Use Only J1, J20, J22 MI811F Series User’s Manual... -
Page 32: Edp Connector (Cn1)
2.5.1 eDP Connector (CN1) Assignment Assignment Ground BL_PWR BL_PWR VDD_eDP BL_PWR VDD_eDP BL_PWR Ground AUX_N AUX_P Brightness Ground BKLT_EN TX0_P Ground TX0_N Ground Ground Ground TX1_P Ground TX1_N Ground Ground MI811F Series User’s Manual... -
Page 33: Com1 Rs-232/422/485 Port & Com2 Rs-232 Port (Cn2)
DCD, Data carrier detect DSR, Data set ready RXD, Receive data RTS, Request to send TXD, Transmit data CTS, Clear to send DTR, Data terminal ready RI, Ring indicator Ground Assignment RS-232 RS-422 RS-485 Data- Data+ Ground Ground Ground MI811F Series User’s Manual... -
Page 34: Dual Usb 2.0 Port (Cn3)
RX, Receive RTS, Request to send TX, Transmit CTS, Clear to send DTR, Data terminal ready RI, Ring indicator Ground 2.5.3 Dual USB 2.0 Port (CN3) 2.5.4 Dual USB 3.0 Port & LAN Port (CN4, CN5) MI811F Series User’s Manual... -
Page 35: Hdmi Port (Cn6, Cn7)
Hardware Configuration 2.5.5 HDMI Port (CN6, CN7) CN6: shared with J11 CN7: (CN6 is the 1 priority.) 2.5.6 Audio Jack (CN10) MI811F Series User’s Manual... -
Page 36: Dvi-D Connector (J11)
2.5.7 DVI-D Connector (J11) J11: shared with CN6 (CN6 HDMI Port is the 1 priority.) Assignment Assignment DATA1_P DATA1_N Ground Ground CLK_P CLK_N Ground Ground DATA2_P DATA2_N Ground Ground DATA0_P DATA0_N SCLK MI811F Series User’s Manual... -
Page 37: Sata Iii Port (Cn8, Cn9)
Hardware Configuration 2.5.8 SATA III Port (CN8, CN9) CN8: shared with J8 CN9: (CN8 is the 1 priority) 2.5.9 Mini-PCIe Slot for mSATA (J8) J8 is shared with CN8. (CN8 SATA III Port is the 1 priority) MI811F Series User’s Manual... -
Page 38: Mini-Pcie Slot (J7)
2.5.10 Mini-PCIe Slot (J7) 2.5.11 Panel Inverter Connector (J2) Assignment Assignment +12V BKLT_CTL LVDS_BLON Ground MI811F Series User’s Manual... -
Page 39: Lvds Connector (J3, J4)
Hardware Configuration 2.5.12 LVDS Connector (J3, J4) J3: 2 channel J4: 1 channel Assignment Assignment LVSAE_P LVSAE_N Ground Ground LVSBE_P LVSBE_N Ground Ground LVSCE_P LVSCE_N Ground Ground LVSCKE_P LVSCKE_N Ground Ground LVSDE_P LVSDE_N VDD1 VDD1 MI811F Series User’s Manual... -
Page 40: Dc Power Input Connector (J6)
Ground Ground LVSCK0_P LVSCK0_N Ground Ground LVSD0_P LVSD0_N VDD1 VDD1 2.5.13 DC Power Input Connector (J6) J6 is only available for MI811F-420D & MI811F-335D (DC-In types). Assignment Assignment Ground 12 ~ 24V Ground 12 ~ 24V MI811F Series User’s Manual... -
Page 41: Atx Power Connector (J5)
Hardware Configuration 2.5.14 ATX Power Connector (J5) J5 is only available for MI811F-420 & MI811F-335 (ATX power types). Assignment Assignment 3.3V 3.3V 3.3V -12V Ground Ground PS-ON Ground Ground Ground Ground Ground Power good 5VSB +12V MI811F Series User’s Manual... -
Page 42: Dual Usb Port (J9, J23)
2.5.15 Dual USB Port (J9, J23) Assignment Assignment Ground USB0- USB1+ USB0+ USB1- Ground 2.5.16 SATA Power Connector (J14, J15) Assignment Assignment Ground Ground +12V MI811F Series User’s Manual... -
Page 43: Front Panel Setting Connector (J12)
Orientation is not required when making a connection to this header. • Power LED (Pins 7 and 8) This connector connects to the system power LED on control panel. This LED will light when the system turns on. MI811F Series User’s Manual... -
Page 44: Ddr3L So-Dimm Slot (J10, J13)
2.5.18 DDR3L SO-DIMM Slot (J10, J13) 2.5.19 Amplifier Connector (J16) Assignment Assignment SPK-L+ SPK-R- SPK-L- SPK-R+ MI811F Series User’s Manual... -
Page 45: Audio Connector (J17)
Hardware Configuration 2.5.20 Audio Connector (J17) Assignment Assignment HPOUT_L HPOUT_R HPOUT-JD Ground LINE2_L LINE2_R LINE1-JD Ground MIC_L MIC_R MIC1-JD Ground MI811F Series User’s Manual... -
Page 46: Com3 & Com4 Rs-232 Port (J18, J19)
TXD, Transmit data DTR, Data terminal ready Ground DSR, Data set ready RTS, Request to send CTS, Clear to send RI, Ring Indicator Not used 2.5.22 Fan Connector (CPU_FAN1, SYS_FAN1) CPU_FAN1: Assignment Assignment Ground Rotation detection Rotation Control MI811F Series User’s Manual... -
Page 47: Digital I/O Connector (J21)
Hardware Configuration SYS_FAN1: Assignment Assignment Ground Rotation detection 2.5.23 Digital I/O Connector (J21) Assignment Assignment Ground VCC5 OUT3 OUT1 OUT2 OUT0 MI811F Series User’s Manual... - Page 48 This page is intentionally left blank. MI811F Series User’s Manual...
-
Page 49: Chapter 3 Drivers Installation
Chapter 3 Drivers Installation This chapter introduces installation of the following drivers: • ® Intel Chipset Software Installation Utility • VGA Driver • HD Audio Driver • ® Intel Trusted Execution Engine Drivers • ® Intel Serial I/O Drivers • LAN Drivers... -
Page 50: Introduction
INF files for Plug & Play function for Intel chipset components. Follow the instructions below to complete the installation. Insert the disk enclosed in the package. Click Intel on the left pane and then Intel(R) Chipset Software Installation Utility on the right pane. MI811F Series User’s Manual... - Page 51 Next to continue. Click Yes to accept the software license agreement. On the Readme File Information screen, click Install . When the driver has been completely installed, restart the computer for changes to take effect. MI811F Series User’s Manual...
-
Page 52: Vga Driver Installation
VGA Driver Installation Click Intel on the left pane and then Intel(R) Apollolake Graphics Driver on the right pane. When the Welcome screen appears, click Next to continue. MI811F Series User’s Manual... - Page 53 Driver Installation Click Yes to accept the license agreement and click Next in the Readme File Information window. When setup is complete, click Finish to restart the computer for changes to take effect. MI811F Series User’s Manual...
-
Page 54: Hd Audio Driver Installation
Driver on the right pane. On the Welcome screen of the InstallShield Wizard, click Next . Click Next until the installation starts. When the driver has been completely installed, restart the computer for changes to take effect. MI811F Series User’s Manual... -
Page 55: Intel ® Trusted Execution Engine Drivers Installation
Driver Installation ® Intel Trusted Execution Engine Drivers Installation Click Intel on the left pane and then Intel(R) TXE Drivers on the right pane. When the Welcome screen appears, click Next . MI811F Series User’s Manual... - Page 56 Accept the license agreement and click Next . When the driver has been successfully installed, restart the computer for changes to take effect. MI811F Series User’s Manual...
-
Page 57: Intel ® Serial Io Drivers Installation
Driver Installation ® Intel Serial IO Drivers Installation Click Intel on the left pane and then Intel(R) Serial IO Drivers on the right pane. When the Welcome screen to the InstallShield Wizard appears, click Next . MI811F Series User’s Manual... - Page 58 In the Readme File Information window, click Next to continue. In the Confirmation window, click Next to start the installation process. When the driver has been successfully installed, restart the computer for changes to take effect. MI811F Series User’s Manual...
-
Page 59: Lan Drivers Installation
Driver Installation LAN Drivers Installation Click LAN Card on the left pane and then Intel LAN Controller Drivers on the right pane. Click Intel(R) I21x Gigabit Network Drivers.. MI811F Series User’s Manual... - Page 60 On the Setup Options screen, click the checkbox to select the desired driver(s) for installation. Then click Next to continue. The wizard is ready for installation. Click Install . When installation is completed, click Finish to restart the computer for changes to take effect. MI811F Series User’s Manual...
-
Page 61: Chapter 4 Bios Setup
Chapter 4 BIOS Setup This chapter describes the different settings available in the AMI BIOS that comes with the board. The topics covered in this chapter are as follows: • Main Settings • Advanced Settings • Chipset Settings • Security Settings •... -
Page 62: 4.1 Introduction
These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could make the system unstable and crash in some cases. MI811F Series User’s Manual... -
Page 63: 4.3 Main Settings
4.3 Main Settings BIOS Setting Description System Date Sets the date. Use the <Tab> key to switch between the data elements. System Time Set the time. Use the <Tab> key to switch between the data elements. MI811F Series User’s Manual... -
Page 64: 4.4 Advanced Settings
4.4 Advanced Settings This section allows you to configure, improve your system and allows you to set up some system features according to your preference. MI811F Series User’s Manual... -
Page 65: Acpi Computing
Enables / Disables the system ability to hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State Selects an ACPI sleep state (Suspend Disabled or S3) where the system will enter when the Suspend button is pressed. MI811F Series User’s Manual... -
Page 66: Lvds (Edp/Dp) Configuration
Options: 800 x 600 / 1024 x 768 / 1366 x 768 / 1440 x 900 / 1600 x 900 / 1280 x 1024 / 1920 x 1080 LVDS Backlight Level Selects from Level 1 to Level 8 for the LVDS Control backlight. MI811F Series User’s Manual... -
Page 67: Ismart Controller
For example, if setting up a schedule from Wednesday 5 p.m. to Thursday 2 a.m., configure two schedule slots. But if setting up a schedule from 3 p.m to 5 p.m. on Wednesday, configure only a schedule slot. MI811F Series User’s Manual... -
Page 68: Fintek Super Io Configuration
Options: All Enable / Enable Ethernet for WOL / All Disable Serial Ports Sets parameters of serial ports. Configuration Enables / Disables the serial port and select an optimal setting for the Super IO device. MI811F Series User’s Manual... - Page 69 IO = 2E8h; IRQ = 3, 4, 5, 6, 7, 9, 10, 11, 12 Device Mode Changes the serial port mode to: • RS232 • RS485 TX Low Active • RS485 with Termination TX Low Active • RS422 • RS422 with Termination MI811F Series User’s Manual...
-
Page 70: Fintek Super Io Hardware Monitor
PC health status. CPU Shutdown Sets a threshold of temperature to shut down if Temperature CPU goes overheated. Options: Disabled / 70 °C / 75 °C / 80 °C / 85 °C / 90 °C / 95 °C MI811F Series User’s Manual... -
Page 71: Cpu Configuration
Displays the socket specific CPU information. Information CPU Power Allows you to enable / disable Turbo Mode. Management Active Processor Enables / Disables the cores in the processor Cores package. Monitor Mwait Enables / Disables Monitor Mwait. MI811F Series User’s Manual... -
Page 72: Ami Graphic Output Protocol Policy
4.4.7 AMI Graphic Output Protocol Policy BIOS Setting Description Output Select Outputs interface MI811F Series User’s Manual... -
Page 73: Network Stack Configuration
If disabled, Ipv4 HTTP boot option will not be created. PXE boot wait time Assigns a period of time to press ESC key to abort the PXE boot. Media detect count Assigns a number of times to check the presence of media. MI811F Series User’s Manual... -
Page 74: Csm Configuration
Controls the priority of Legacy and UEFI ROMs. Storage Controls the execution of UEFI and Legacy Storage OpROM. Video Controls the execution of UEFI and Legacy Video OpROM. Other PCI devices Determines OpROM execution policy for devices other than network, storage or video. MI811F Series User’s Manual... -
Page 75: Usb Configuration
The maximum time the device will take before it delay properly reports itself to the Host Controller. Auto uses default value for a Root port it is 100ms. But for a Hub port, the delay is taken from Hub descriptor. MI811F Series User’s Manual... -
Page 76: 4.5 Chipset Settings
4.5 Chipset Settings 4.5.1 South Cluster Configuration MI811F Series User’s Manual... - Page 77 BIOS Setup 4.5.1.1. HD Audio Configuration 4.5.1.2. PCI Express Configuration BIOS Setting Description PCI Express Root Accesses the control of the PCI Express Root Port 1 ~ 6 Port. MI811F Series User’s Manual...
- Page 78 Options: Disable, L0s, L1, L0SL1, Auto L1 Substates Sets PCIe L1 substates. Options: Disabled, L1.1, L1.2, L1.1 & L1.2 PME SCI Enables / Disables PME SCI. PCIe Speed Configures the PCIe speed. Options: Auto, Gen1, Gen2 MI811F Series User’s Manual...
- Page 79 BIOS Setting Description Chipset SATA Enables / Disables the Chipset SATA Controller. The Chipset SATA Controller supports the 2 black internal SATA ports (up to 3Gb/s supported per port). SATA Mode Selection Determines how SATA controller(s) operate. MI811F Series User’s Manual...
- Page 80 USB port from reporting a device connection to the controller. XDCI Support Enables / Disables XDCI. XHCI Disable FALSE makes the XHCI Link Compliance Mode Compliance Mode not disabled. TRUE disables the XHCI Link Compliance Mode. MI811F Series User’s Manual...
-
Page 81: 4.6 Security Settings
BIOS Setup 4.6 Security Settings BIOS Setting Description Setup Administrator Sets an administrator password for the setup Password utility. User Password Sets a user password. Secure Boot Customizable Secure Boot settings MI811F Series User’s Manual... - Page 82 Secure Boot keys Reset to Setup Mode Provision factory default keys on next re-boot only when System in Setup mode Key Management Enables expert users to modify Secure Boot Policy variables without full authentication MI811F Series User’s Manual...
- Page 83 Enroll Factory Defaults or load certificates from a file: Platform Key (PK) 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER encoded) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHA256, 384, 512 2. Authenticated UEFI Variable 3. EFI PE/COFF Image (SHA256) Key Source: Factory, External, Mixed MI811F Series User’s Manual...
-
Page 84: 4.7 Boot Settings
Policy boot options. Options: Default, Place First, Place Last Boot mode select Selects a Boot mode, Legacy / UEFI / Dual. Boot Option Priorities Sets the system boot order priorities for hard disk, CD/DVD, USB, Network. MI811F Series User’s Manual... -
Page 85: 4.8 Save & Exit Settings
Restore Defaults Restores / Loads defaults values for all the setup options. Save as User Defaults Saves the changes done so far as User Defaults. Restore User Defaults Restores the user defaults to all the setup options. MI811F Series User’s Manual... - Page 86 This page is intentionally left blank. MI811F Series User’s Manual...
-
Page 87: Appendix
Appendix This section provides the mapping addresses of peripheral devices and the sample code of watchdog timer configuration. -
Page 88: I/O Port Address Map
Motherboard resources 0x000000B2-0x000000B3 Motherboard resources 0x00000680-0x0000069F Motherboard resources 0x00000400-0x0000047F Motherboard resources 0x00000500-0x000005FE Motherboard resources 0x00000600-0x0000061F Motherboard resources 0x0000164E-0x0000164F Motherboard resources 0x0000F040-0x0000F05F Intel(R) Celeron(R)/Pentium(R) Processor SMBUS - 5AD4 0x0000D000-0x0000DFFF Intel(R) Celeron(R)/Pentium(R) Processor PCI Express Root Port - 5AD9 MI811F Series User’s Manual... - Page 89 0x000000A4-0x000000A5 Programmable interrupt controller 0x000000A8-0x000000A9 Programmable interrupt controller 0x000000AC-0x000000AD Programmable interrupt controller 0x000000B0-0x000000B1 Programmable interrupt controller 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000004D0-0x000004D1 Programmable interrupt controller 0x0000F000-0x0000F03F Intel(R) HD Graphics MI811F Series User’s Manual...
- Page 90 Address Device Description 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F060-0x0000F07F Standard SATA AHCI Controller 0x00000040-0x00000043 System timer 0x00000050-0x00000053 System timer MI811F Series User’s Manual...
-
Page 91: Interrupt Request Lines (Irq)
Controller IRQ 39 SDA Standard Compliant SD Host Controller IRQ 54 ~ IRQ 204 Microsoft ACPI-Compliant System IRQ 256 ~ IRQ 511 Microsoft ACPI-Compliant System IRQ 4294967279 Intel(R) USB 3.0 eXtensible Host Controller - 1.0 (Microsoft) MI811F Series User’s Manual... - Page 92 Intel(R) I211 Gigabit Network Connection #2 IRQ 4294967285 IRQ 4294967286 ~ Intel(R) I211 Gigabit Network Connection IRQ 4294967291 IRQ 4294967292 Intel(R) Trusted Execution Engine Interface IRQ 4294967293 Intel(R) HD Graphics IRQ 4294967294 Standard SATA AHCI Controller MI811F Series User’s Manual...
-
Page 93: Watchdog Timer Configuration
**endptr; char SIO; printf("Fintek 81866 watch dog program\n"); SIO = Init_F81866(); if (SIO == 0) printf("Can not detect Fintek 81866, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); MI811F Series User’s Manual... - Page 94 DisableWDT(void) unsigned char bBuf; Set_F81866_LD(0x07); //switch to logic device 7 bBuf = Get_F81866_Reg(0xFA); bBuf &= ~0x01; Set_F81866_Reg(0xFA, bBuf); //disable WDTO output bBuf = Get_F81866_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81866_Reg(0xF5, bBuf); //disable WDT //--------------------------------------------------------------------------- //--------------------------------------------------------------------------- MI811F Series User’s Manual...
- Page 95 Init_Finish; F81866_BASE = 0x00; result = F81866_BASE; Init_Finish: return (result); //--------------------------------------------------------------------------- void Unlock_F81866 (void) outportb(F81866_INDEX_PORT, F81866_UNLOCK); outportb(F81866_INDEX_PORT, F81866_UNLOCK); //--------------------------------------------------------------------------- void Lock_F81866 (void) outportb(F81866_INDEX_PORT, F81866_LOCK); //--------------------------------------------------------------------------- void Set_F81866_LD( unsigned char LD) Unlock_F81866(); outportb(F81866_INDEX_PORT, F81866_REG_LD); outportb(F81866_DATA_PORT, LD); Lock_F81866(); MI811F Series User’s Manual...
- Page 96 F81866_DATA_PORT (F81866_BASE+1) //--------------------------------------------------------------------------- #define F81866_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81866_UNLOCK 0x87 #define F81866_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81866(void); void Set_F81866_LD( unsigned char); void Set_F81866_Reg( unsigned char, unsigned char); unsigned char Get_F81866_Reg( unsigned char); //--------------------------------------------------------------------------- #endif // F81866_H MI811F Series User’s Manual...
