Summary of Contents for IBASE Technology MI985

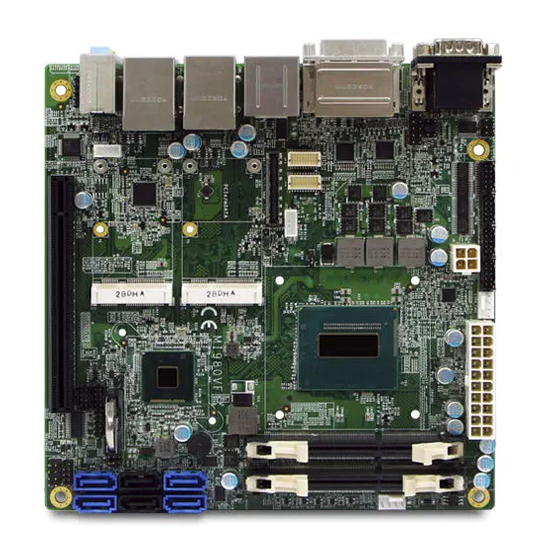

- Page 1 MI985 Intel Generation Core / QM87 PCH ® Mini ITX Motherboard USER’S MANUAL Version 1.0...
- Page 2 Generation Core DC/QC Processor are registered trademarks of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Fintek is a registered trademark of Fintek Electronics Corporation. All other product names or trademarks are properties of their respective owners. MI985 User’s Manual...
-
Page 3: Table Of Contents
MI985 Specifications ............2 Board Dimensions ............... 4 Installations ............5 Installing the Memory ............6 Setting the Jumpers ............. 7 Connectors on MI985 ............12 BIOS Setup ............25 Drivers Installation ........45 Intel Chipset Software Installation Utility ......46 VGA Drivers Installation .......... - Page 4 This page is intentionally left blank. MI985 User’s Manual...
-
Page 5: Introduction
The QM87 platform is made with 22-nanometer technology that supports Intel’s first processor architecture to unite the CPU and the graphics core on the transistor level. The MI985 Mini ITX board utilizes the dramatic increase in performance provided this Intel’s latest cutting-edge technology. -
Page 6: Mi985 Specifications
- CPU fan x1 (PWN Fan type, 4-pin connector) - SYS fan x1 (PWM Fan type, 4-pin connector) Digital IO 4 in & 4 out TPM 2.0 Infineon SLB9665 [C01Z9665TT2007000P] ® iAMT Intel Active Management Technology ver.9.1 MI985 User’s Manual... - Page 7 Watchdog Timer System Voltage ATX standard 20-pin type 4 pin type (+12V only)[For full system loading usage] Others -iSMART 3.1 -Onboard CPU cooler Board Size 170mm x 170mm Operation System Windows 7, Windows8, Linux Certification CE /FCC/LVD MI985 User’s Manual...
-
Page 8: Board Dimensions
INTRODUCTION Board Dimensions MI985 User’s Manual... -
Page 9: Installations
INSTALLATIONS Installations This section provides information on how to use the jumpers and connectors on the MI985 in order to set up a workable system. The topics covered are: Installing the Memory ................6 Setting the Jumpers ................7 Connectors on MI985 ................12... -
Page 10: Installing The Memory
INSTALLATIONS Installing the Memory The MI985 board supports two DDR3L memory socket for a maximum total memory of 16GB in DDR3L SODIMM memory type. Installing and Removing Memory Modules To install the DDR3L modules, locate the memory slot on the board and perform the following steps: 1. -
Page 11: Setting The Jumpers
INSTALLATIONS Setting the Jumpers Jumpers are used on MI985 to select various settings and features according to your needs and applications. Contact your supplier if you have doubts about the best configuration for your needs. The following lists the connectors on MI985 and their respective functions. -
Page 12: Jumper Locations On Mi985
INSTALLATIONS Jumper Locations on MI985 Jumpers on MI985 ................Page JP1: COM2 RS232 RI/+5V/+12V Power Setting ........9 JP2: COM1 RS232 RI/+5V/+12V Power Setting ........9 J13: LCD Panel Power Selection ............10 J16: Flash Descriptor Security Override (Factory use only) ....10 J17: Clear CMOS Contents .............. -
Page 13: Jp1: Com2 Rs232 Ri/+5V/+12V Power Setting
INSTALLATIONS JP1: COM2 RS232 RI/+5V/+12V Power Setting Setting Function Pin 1-3, Short/Closed +12V Pin 3-4, Short/Closed Pin 3-5, Short/Closed JP2: COM1 RS232 RI/+5V/+12V Power Setting Setting Function Pin 1-3, Short/Closed +12V Pin 3-4, Short/Closed Pin 3-5, Short/Closed MI985 User’s Manual... -
Page 14: J13: Lcd Panel Power Selection
INSTALLATIONS J13: LCD Panel Power Selection LCD Panel Power 3.3V J16: Flash Descriptor Security Override (Factory use only) Flash Descriptor Security Override Open Disabled (Default) Close Enabled MI985 User’s Manual... -
Page 15: J17: Clear Cmos Contents
INSTALLATIONS J17: Clear CMOS Contents Setting Function Pin 1-2 Normal Short/Closed Pin 2-3 Clear CMOS Short/Closed J18: Clear ME Contents Setting Function Pin 1-2 Normal Short/Closed Pin 2-3 Clear CMOS Short/Closed MI985 User’s Manual... -
Page 16: Connectors On Mi985
INSTALLATIONS Connectors on MI985 Connector Locations on MI985 ............13 CN2: DVI-I and DVI-D Connector ............14 CN1: COM1 and COM2 Serial Ports........... 15 CN4: Display Port ................15 CN5: USB2 #6/#7 ................15 CN6: Gigabit LAN (I218) + USB3 #0/#1 ..........15 CN7, CN8: SATA3 Connectors ............ -
Page 17: Connector Locations On Mi985
INSTALLATIONS Connector Locations on MI985 MI985 User’s Manual... -
Page 18: Cn2: Dvi-I And Dvi-D Connector
DATA 4+ DATA 5- DDC CLOCK DATA 5+ DDC DATA SHIELD CLK CLOCK - DATA 1- CLOCK + DATA 1+ N.C. SHIELD 1/3 N.C. DATA 3- N.C. DATA 3+ N.C. DDC POWER N.C. A GROUND 1 N.C. MI985 User’s Manual... -
Page 19: Cn1: Com1 And Com2 Serial Ports
Pin # Pin # Signal Name LANE0_P LANE3_N LANE0_N LANE1_P AUX_P LANE1_N LANE2_P AUX_N LANE2_N LANE3_P VCC3. CN5: USB2 #6/#7 CN6: Gigabit LAN (I218) + USB3 #0/#1 CN7, CN8: SATA3 Connectors CN9: Gigabit LAN (I211) + USB3 #2/#3 MI985 User’s Manual... -
Page 20: Cn3: Edp Connector (Jae_Fi-Td44Sb-E-R750)
INSTALLATIONS CN3: eDP Connector (JAE_FI-TD44SB-E-R750) Signal Name Pin # Pin # Signal Name 3.3V TXN0 3.3V TXP0 3.3V 3.3V AUXP 3.3V AUXN VCC3 VCC12 VCC5 Brightness BKLT_EN VCC12 VCC3 SMB_THRM_CLK TXN1 SMB_THRM_DATA TXP1 MI985 User’s Manual... -
Page 21: Cn10: Sata2 Connector
The LVDS connectors on board consist of the first channel (LVDS1) and second channel (LVDS2). Signal Name Pin # Pin # Signal Name TX0N TX0P Ground Ground TX1N TX1P Ground Ground TX2N TX2P Ground Ground CLKN CLKP Ground Ground TX3N TX3P Power Power MI985 User’s Manual... -
Page 22: Jp5: Lcd Backlight Connector
INSTALLATIONS JP5: LCD Backlight Connector Pin # Signal Name +12V Backlight Enable Brightness Control Ground JP6, JP8: USB2 #8/#9, USB2 #4/#5 Connectors Signal Name Pin # Pin # Signal Name Ground Ground MI985 User’s Manual... -
Page 23: J1, J2, J3, J4: Com6, Com5, Com3, Com4 Rs232 Serial Ports
INSTALLATIONS J1, J2, J3, J4: COM6, COM5, COM3, COM4 RS232 Serial Ports (HIROSE DF11-10DP-2DSA) Signal Name Pin # Pin # Signal Name DCD# SIN# SOUT DTR# DSR# RTS# CTS# J5: ATX Power Supply Connector MI985 User’s Manual... -
Page 24: J6: Atx 12V Power Connector
Power good 5VSB +12V J6: ATX 12V Power Connector This connector supplies the CPU operating voltage. Pin # Signal Name Ground Ground +12V +12V JP7: LPC debug Connector (Factory use only) JP9: SPI Flash Connector (Factory use only) MI985 User’s Manual... -
Page 25: J7: Pcie1 Configuration
J7: PCIE1 Configuration PCIE1 Configuration Open PCIE X16 (Default) Short PCIE X8, X8 J8: Digital I/O Connector (4 in, 4 out) Signal Name Pin # Pin # Signal Name Ground Out3 Out1 Out2 Out0 J10, J11: DDR3L SO-DIMM Socket MI985 User’s Manual... -
Page 26: J12: Lvds/Edp Select
Setting Function Pin 1-2, Short/Closed eDP Connector Pin 2-3, Short/Closed LVDS J21: Audio Pin Header for Chassis Front Panel Signal Name Pin # Pin # Signal Name MIC IN_L Ground MIC IN_R LINE_R Ground Sense LINE_L Ground MI985 User’s Manual... -
Page 27: J22: Front Panel
Signal Name Pin # Pin # Signal Name Power BTN Power BTN HDD LED+ HDD LED- Reset BTN Reset BTN Power LED+ Power LED- CPU_FAN1: CPU Fan Power Connector Pin # Signal Name Ground +12V Rotation detection Control MI985 User’s Manual... -
Page 28: Sys_Fan2: System Fan Power Connector (Dc/Pwm Auto-Detect)
INSTALLATIONS SYS_FAN2: System Fan Power Connector (DC/PWM Auto-Detect) Pin # Signal Name Ground +12V Rotation detection Control J14: Mini PCIE/mSATA (share with CN7) Connector J15: Mini PCIE Connector MI985 User’s Manual... -
Page 29: Bios Setup
The topics covered in this chapter are as follows: BIOS Introduction ................26 BIOS Setup ..................26 Advanced Settings ................27 CSM parameters .................. 36 Chipset Settings ................... 38 Security Settings .................. 41 Boot Settings..................42 Save & Exit Settings ................43 MI985 User’s Manual... -
Page 30: Bios Introduction
These defaults have been carefully chosen by both AMI and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases. MI985 User’s Manual... -
Page 31: System Date
► iSmart Controller Enter: Select ► AMT Configuration Change Field ► F81866 Super IO Configuration F1: General Help ► Hardware Monitor F2: Previous Values F3: Optimized Default ►SATA Configuration ► CSM Configuration F4: Save ESC: Exit ► USB Configuration MI985 User’s Manual... -
Page 32: Cpu Configuration
OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.) Intel Virtualization Technology When enabled, a VMM can utilize the additional hardware capabilities provided by Vanderpool Technology. EIST Enabled/Disabled Intel Speedstep. Turbo Mode Turbo Mode. MI985 User’s Manual... -
Page 33: Trusted Computing
TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM 1.2 devices will be enumerated. MI985 User’s Manual... -
Page 34: Driver Installation
Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS. ACPI Sleep State Select ACPI sleep state the system will enter, when the SUSPEND button is pressed. Lock Legacy Resources Enabled or Disabled Lock of Legacy Resources. MI985 User’s Manual... - Page 35 This field sets the system power status whether Disable or Enable when power returns to the system from a power failure situation. Temperature Guardian Generate the reset signal when system hangs up on POST. Schedule Slot 1 / 2 Setup the hour/minute for system power on. MI985 User’s Manual...
-
Page 36: Amt Configuration
Enable/Disable BIOS hotkey press. AMT Configuration OEMFLag Bit 2: Enable/Disable MEBx selection screen. Hide Un-Configure ME Configuration OEMFlag Bit 6: Hide Un-Configure ME without password Confirmation Prompt Amt Wait Timer Set timer to wait before sending ASF_GET_BOOT_OPTIONS. MI985 User’s Manual... -
Page 37: Activate Remote Assistance Process
► Serial Port 5 Configuration ► Serial Port 6 Configuration F4: Save ESC: Exit Serial Port Configuration Set parameters of serial ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device. MI985 User’s Manual... -
Page 38: Hardware Monitor
These fields are the parameters of the hardware monitoring function feature of the board. The values are read-only values as monitored by the system and show the PC health status. CPU Shutdown Temperature The default setting is Disabled. MI985 User’s Manual... -
Page 39: Sata Configuration
Serial ATA Port 5 Empty ESC: Exit Software Preserve Unknown Port 5 Enabled SATA Controller(s) Enable / Disable Serial ATA Controller. SATA Mode Selection (1) IDE Mode. (2) AHCI Mode. (3) RAID Mode. Port Enable or Disable SATA Port MI985 User’s Manual... -
Page 40: Csm Parameters
Controls the execution of UEFI and Legacy PXE OpROM. Storage Controls the execution of UEFI and Legacy Storage OpROM. Video Controls the execution of UEFI and Legacy Video OpROM. Other PCI device Determines OpROM execution policy for devices other than Network, Storage, or Video. MI985 User’s Manual... -
Page 41: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub port the delay is taken from Hub descriptor. MI985 User’s Manual... -
Page 42: Chipset Settings
→ ← Select Screen VT-d Enabled ↑↓ Select Item Enter: Select ► Graphics Configuration Change Field F1: General Help F2: Previous Values F3: Optimized Default F4: Save ESC: Exit VT-d Check to enable VT-d function on MCH. MI985 User’s Manual... -
Page 43: Wake On Lan
F2: Previous Values PCI Port 6 is assigned to LAN F3: Optimized Default ► PCI Express Root Port 7 F4: Save ► PCI Express Root Port 8 ESC: Exit PCI Express Configuration PCI Express Root Port Settings. MI985 User’s Manual... -
Page 44: Xhci Mode
F4: Save ESC: Exit Azalia Control Detection of the Azalia device. Disabled = Azalia will be unconditionally be disabled. Enabled = Azalia will be unconditionally be enabled. Auto = Azalia will be enabled if present, disabled otherwise. MI985 User’s Manual... -
Page 45: Security Settings
Change Field Minimum length F1: General Help Maximum length F2: Previous Values F3: Optimized Default Administrator Password F4: Save User Password ESC: Exit Administrator Password Set Setup Administrator Password. User Password Set User Password. MI985 User’s Manual... -
Page 46: Boot Settings
Enables/Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options. Boot mode select Select boot mode LEGACY/UEFI FIXED BOOT ORDER Priorities Sets the system boot order. MI985 User’s Manual... -
Page 47: Save & Exit Settings
Discard Changes done so far to any of the setup options. Restore Defaults Restore/Load Defaults values for all the setup options. Save as User Defaults Save the changes done so far as User Defaults. Restore User Defaults Restore the User Defaults to all the setup options. MI985 User’s Manual... - Page 48 BIOS SETUP This page is intentionally left blank. MI985 User’s Manual...
-
Page 49: Drivers Installation
LAN Drivers Installation ..............53 Intel® Management Engine Interface ..........56 Intel® USB 3.0 Drivers ............... 59 IMPORTANT NOTE: After installing your Windows operating system, you must install first the Intel Chipset Software Installation Utility before proceeding with the drivers installation. MI985 User’s Manual... -
Page 50: Intel Chipset Software Installation Utility
Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation. 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers. 2. Click Intel(R) Chipset Software Installation Utility. MI985 User’s Manual... - Page 51 4. Click Yes to accept the software license agreement and proceed with the installation process. 5. On the Readme File Information screen, click Next to continue the installation. 6. The Setup process is now complete. Click Finish to restart the computer and for changes to take effect. MI985 User’s Manual...
-
Page 52: Vga Drivers Installation
DRIVERS INSTALLATION VGA Drivers Installation 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers. 2. Click Intel(R) HD Graphics Driver. MI985 User’s Manual... - Page 53 4. Click Yes to to agree with the license agreement and click Next continue the installation. 6. On the screen shown below, click Install to continue. 7. Setup complete. Click Finish to restart the computer and for changes to take effect. MI985 User’s Manual...
- Page 54 DRIVERS INSTALLATION MI985 User’s Manual...
-
Page 55: Realtek Hd Audio Driver Installation
DRIVERS INSTALLATION Realtek HD Audio Driver Installation 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers. 2. Click Realtek High Definition Audio Driver. MI985 User’s Manual... - Page 56 DRIVERS INSTALLATION 3. On the Welcome to the InstallShield Wizard screen, click Next to proceed with and complete the installation process. 4. The InstallShield Wizard Complete. Click Finish to restart the computer and for changes to take effect. MI985 User’s Manual...
-
Page 57: Lan Drivers Installation
DRIVERS INSTALLATION LAN Drivers Installation 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers. 2. Click Intel(R) PRO LAN Network Driver. MI985 User’s Manual... - Page 58 3. When the Welcome screen appears, click Next. 4. Click Next to to agree with the license agreement. 5. Click the checkbox for Drivers in the Setup Options screen to select it and click Next to continue. MI985 User’s Manual...
- Page 59 DRIVERS INSTALLATION 7. The wizard is ready to begin installation. Click Install to begin the installation. 8. When InstallShield Wizard is complete, click Finish. MI985 User’s Manual...
-
Page 60: Intel® Management Engine Interface
Intel® Management Engine Interface Follow the steps below to install the Intel Management Engine. 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers and then Intel(R) ME 9.x Drivers. MI985 User’s Manual... - Page 61 DRIVERS INSTALLATION 2. When the Welcome screen to the InstallShield Wizard for Intel® Management Engine Components, click the checkbox for Install Intel® Control Center & click Next. 3. Click Yes to to agree with the license agreement. MI985 User’s Manual...
- Page 62 DRIVERS INSTALLATION 4. When the Setup Progress screen appears, click Next. Then, click Finish when the setup progress has been successfully installed. MI985 User’s Manual...
-
Page 63: Intel® Usb 3.0 Drivers
DRIVERS INSTALLATION Intel® USB 3.0 Drivers 1. Insert the DVD that comes with the board. Click Intel and then Intel(R) Broadwell Chipset Drivers 2. Click Intel(R) USB 3.0 Drivers. MI985 User’s Manual... - Page 64 DRIVERS INSTALLATION 3. When the Welcome screen to the InstallShield Wizard for Intel® USB 3.0 eXtensible Host Controller Driver, click Next. 4. Click Yes to to agree with the license agreement and continue the installation. MI985 User’s Manual...
- Page 65 5. On the Readme File Information screen, click Next to continue the installation of the Intel® USB 3.0 eXtensible Host Controller Driver. 6. Setup complete. Click Finish to restart the computer and for changes to take effect. MI985 User’s Manual...
-
Page 66: Appendix
081h - 091h DMA Controller #2 0F0h - 0F0h Numeric data processor 2E0h – 2E7h Communications Port (COM6) 2F8h - 2FFh Communications Port (COM2) 3B0h- 3BBh Intel(R) Iris(TM) Pro Graphics 6200 3F8h - 3FFh Communications Port (COM1) MI985 User’s Manual... -
Page 67: Interrupt Request Lines (Irq)
The following table shows the IRQ used by the devices on board. Level Function IRQ0 System Timer IRQ3 Communications Port (COM2) IRQ4 Communications Port (COM1) IRQ8 System CMOS/real time clock IRQ13 Numeric data processor IRQ22 High Definition Audio Controller MI985 User’s Manual... -
Page 68: Watchdog Timer Configuration
Fintek 81866, program abort.\n"); return(1); }//if (SIO == 0) if (argc != 2) printf(" Parameter incorrect!!\n"); return (1); bTime = strtol (argv[1], endptr, 10); printf("System will reset after %d seconds\n", bTime); if (bTime) EnableWDT(bTime); } else DisableWDT(); return 0; MI985 User’s Manual... - Page 69 //--------------------------------------------------------------------------- void DisableWDT(void) unsigned char bBuf; Set_F81866_LD(0x07); //switch to logic device 7 bBuf = Get_F81866_Reg(0xFA); bBuf &= ~0x01; Set_F81866_Reg(0xFA, bBuf); //disable WDTO output bBuf = Get_F81866_Reg(0xF5); bBuf &= ~0x20; bBuf |= 0x40; Set_F81866_Reg(0xF5, bBuf); //disable WDT //--------------------------------------------------------------------------- MI985 User’s Manual...
- Page 70 F81866_UNLOCK); outportb(F81866_INDEX_PORT, F81866_UNLOCK); //--------------------------------------------------------------------------- void Lock_F81866 (void) outportb(F81866_INDEX_PORT, F81866_LOCK); //--------------------------------------------------------------------------- void Set_F81866_LD( unsigned char LD) Unlock_F81866(); outportb(F81866_INDEX_PORT, F81866_REG_LD); outportb(F81866_DATA_PORT, LD); Lock_F81866(); //--------------------------------------------------------------------------- void Set_F81866_Reg( unsigned char REG, unsigned char DATA) Unlock_F81866(); outportb(F81866_INDEX_PORT, REG); outportb(F81866_DATA_PORT, DATA); Lock_F81866(); //--------------------------------------------------------------------------- MI985 User’s Manual...
- Page 71 (F81866_BASE) #define F81866_DATA_PORT (F81866_BASE+1) //--------------------------------------------------------------------------- #define F81866_REG_LD 0x07 //--------------------------------------------------------------------------- #define F81866_UNLOCK 0x87 #define F81866_LOCK 0xAA //--------------------------------------------------------------------------- unsigned int Init_F81866(void); void Set_F81866_LD( unsigned char); void Set_F81866_Reg( unsigned char, unsigned char); unsigned char Get_F81866_Reg( unsigned char); //--------------------------------------------------------------------------- #endif //__F81866_H MI985 User’s Manual...
