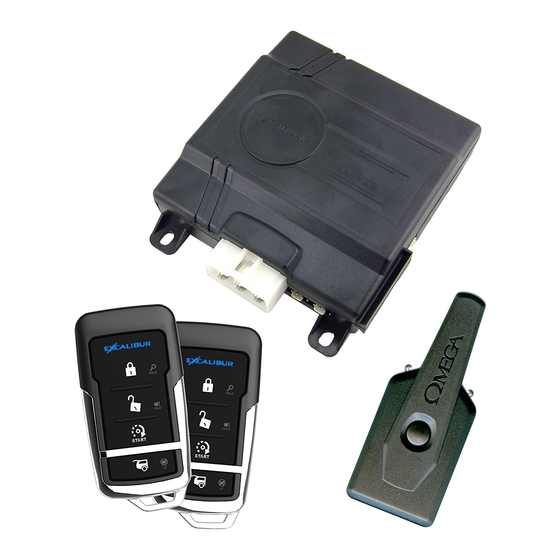

Excalibur RS-360-EDPB Operation Manual

Transmitter/Controller Operations:

LOCK/ARM: Press and release "lock" once
UNLOCK/DISARM: Press and release "unlock" once
TRUNK RELEASE/2ND CH: Press "trunk" for 3 seconds
REMOTE START: Press "start" twice in 5 seconds
(see user feature #8 for options)
PANIC: Press "lock" or "unlock" for 3 seconds
3RD CHANNEL: Press "trunk & start" for 3 seconds
4TH CHANNEL: Press "lock" & "trunk" for 3 seconds
5TH CHANNEL: Press "unlock" & "start" for 3 seconds
SILENT ARM/DISARM: Press "trunk" twice in 5 seconds
SENSOR BYPASS: Press "trunk" within 5 seconds of arming
the alarm

Technology

Feature Programming:

1. Turn the ignition key "on, then "off"
2. Within 7 seconds of step 1, press the valet switch 5 times
(user features) or 10 times (installer features). This
siren/horn will sound.
3. Press the valet switch the number of times equal to the
feature number you wish to access.
4. Press the controller/transmitter button that corresponds to
the desired setting.
5. To change additional features, repeat steps 3-4.
6. To exit programming, turn the ignition key "on", then "off"
or the system will exit automatically if there is a 10 sec-
ond delay between any steps.

Tach Learning Procedure:

1. Turn the ignition key "on"
2. Within 10 seconds of step 1, press the brake pedal 5
times. The siren/horn will chirp 5 times.
3. Start the engine with the key. When tach is successfully
learned, the status light will turn on solid.
4. If you need to relearn a later tach signal due to cold start/
high idle, you can press the valet switch once to learn
the current tach signal. The status light will turn off and
back on to indicate it has relearned.

Programming Controllers/Transmitters:

1. Be sure to have all controllers/transmitters present and be
sure the system is in a disarmed/unlocked state.
2. Turn the ignition key "on".
3. Within 7 seconds of step 1, press the valet switch 5 times.
The siren/horn will sound.
4. Press LOCK on one transmitter/controller until you hear a
single chirp.
5. Repeat step 4 for each transmitter/controller to be pro-
grammed.
6. To exit programming, turn the ignition key "off" or the sys-
tem will exit automatically if there is a 10 second delay
between any steps.
RS-360-EDPB
DELUXE KEYLESS REMOTE START SYSTEM

Programmable Features Matrix

User Feature Programming: Ignition on, off, press valet 5 times
# Feature
1 Remote Start Run Time
2 Flashing Light Confirmations
3 Confirmation Chirp Volume
4 BROWN Wire: Siren / Pulsed Horn
5 Ignition Lock / Unlock
6 Door Open Bypass for Feat. #5
7 Unlock w/ Trunk Release
8 RS Activation (Remote)
9 Last Door Arming
10 Automatic Rearming
11 Confirmation Chirps
12 Anti-Carjacking
13 Secure Code
14 Ignition Override
15 Alarm Trigger Duration
16 Arming Delay
17 Open Door Warning Upon Arming
Installer Feature Programming: Ignition on, off, press valet 10 times
1 RS Activation (WHITE/BLUE wire)
2 PINK/WHITE Wire
3 Engine Detection
4 Gasoline or Diesel Engine
5 Light Relay Function
6 Blue Sat Port BLUE Wire
7 Crank Time
8 Door Lock/Unlock Outputs
9 Remote Start Lock Control
10 Turbo Timer
11 Manual Transmission
12 Data Port Protocol
13 Alarm Functions
14 Pulse Ign. on Disarm
15 Lock On Prewarn
16 Starter Interrupt
17 Low Temp Crank Extender
18 Arm/Disarm or CH. 4/5
19 Horn Relay Function
20 Low Current/Motorcycle Mode
The 1-Way Transmitter
1
Part number: 1411-03
Battery: 1 x CR2032
2
Frequency: 433MHz
1. LOCK button
3
2. UNLOCK button
3. TRUNK button
4 4. START button
Lock Button Unlock button Trunk button
(Brake x 1) (Brake x 2) (Brake x 3)
10 min 5 min 15 min
Unlock: ON Unlock: ON Unlock: Flash
RS: ON RS: Flash RS: ON
Low Med-Low Med-High
Pulse LOW Pulse MED Pulse HI
Off Ign On = Lock Ign. Off = Unlock Lock + Unlock
On Off
On Off
Start x 1 Start x 2 Start x 3
Off On w/o Lock On w/ Lock
Off On w/o Lock On w/ Lock
Siren + Horn Siren Only On Demand
Ignition Door Ignition + Door
Read Operation Guide For Programming Instructions
On Off
30 sec 60 sec 90 sec
3 sec 15 sec 30 sec
On Off
1 Pulse 2 pulses 3 pulses
Ignition Accessory Starter
Tachless Hi Tachless Lo Tach Wire
Gasoline 15 sec Diesel 20 sec Diesel
Dome Light Start Ignition
Pulse After Start
Ignition Status
below freezing
0.75 sec 1 sec 1.5 sec
0.8 sec 3 sec Double Unlock
Lock after Unlock before
Off
Start Start
Off 1 min 2 min
On Off
Green: DBI Green: iData Green: DBI
Black: DBI Black: iData Black: iData
On Off
On Off
On Off
Alarm Only Anti-grind Only Alarm/Anti-Grind
0 ms 200 ms 300 ms
Arm/Disarm Arm/CH. 5 CH. 4/Disarm
Horn Ignition Trunk Release
On Off
Start button Lock + Unlock
(Brake x 4) (Brake x 5)
20 min
Unlock: Flash
RS: Flash
High
Steady Siren
Start x 4
Enhanced
Off
Off
120 sec
45 sec
4 pulses
Data-tach Crank Only
30 sec Diesel
Accessory Status
Pulse After
Horn
Engine Off
2.25 sec
Total Closure
Lock + Unlock
3 min
Green: iData
Black: DBI
Automatic
400 ms
CH. 4/CH.5
Pulse After
Start
