Outdoor Unit Control Box (Single Phase); Outdoor Unit Control Box (Three Phase); Electrical Connections; R-410A Saturation Properties - Johnson Controls 13 Seer-TCGD Installation Manual

TABLE 2: R-410A Saturation Properties
PRESSURE
TEMP. °F
PSIG
45 130
46 132
47 135
48 137
49 140
50 142
51 145
52 147
53 150
54 153
55 156
56 158
57 161
58 164
59 167
SECTION VIII: ELECTRICAL
CONNECTIONS
GENERAL INFORMATION & GROUNDING
Check the electrical supply to be sure that it meets the values specified
on the unit nameplate and wiring label.
Power wiring, control (low voltage) wiring, disconnect switches and over
current protection must be supplied by the installer. Wire size should be
sized per NEC requirements.
All field wiring must USE COPPER CONDUCTORS ONLY and be
in accordance with Local, National, Fire, Safety & Electrical Codes.
This unit must be grounded with a separate ground wire in accor-
dance with the above codes.
The complete connection diagram and schematic wiring label is located
on the inside surface of the unit service access panel.

FIELD CONNECTIONS POWER WIRING

1. Install the proper size weatherproof disconnect switch outdoors
and within sight of the unit.
2. Remove the screws at the top and sides of the corner cover. Slide
corner cover down and remove from unit.
3. Run power wiring from the disconnect switch to the unit.
4. Route wires from disconnect through power wiring opening pro-
vided and into the unit control box as shown in Figures 6 & 7.
5. Install the proper size time-delay fuses or circuit breaker, and
make the power supply connections.
Johnson Controls Unitary Products
PRESSURE
TEMP. °F TEMP. °F
PSIG
60 170
61 173
62 176
63 179
64 182
65 185
66 188
67 191
68 194
69 197
70 201
71 204
72 207
73 211
74 214
PRESSURE
TEMP. °F
PSIG
75 217 90
76 221 91
77 224 92
78 228 93
79 232 94
80 235 95
81 239 96
82 243 97
83 247 98
84 250 99
85 254 100
86 258 101
87 262 102
88 266 103
89 270 104
Ground
Lug
Low
Voltage
Box
"Fingered"
Bushing

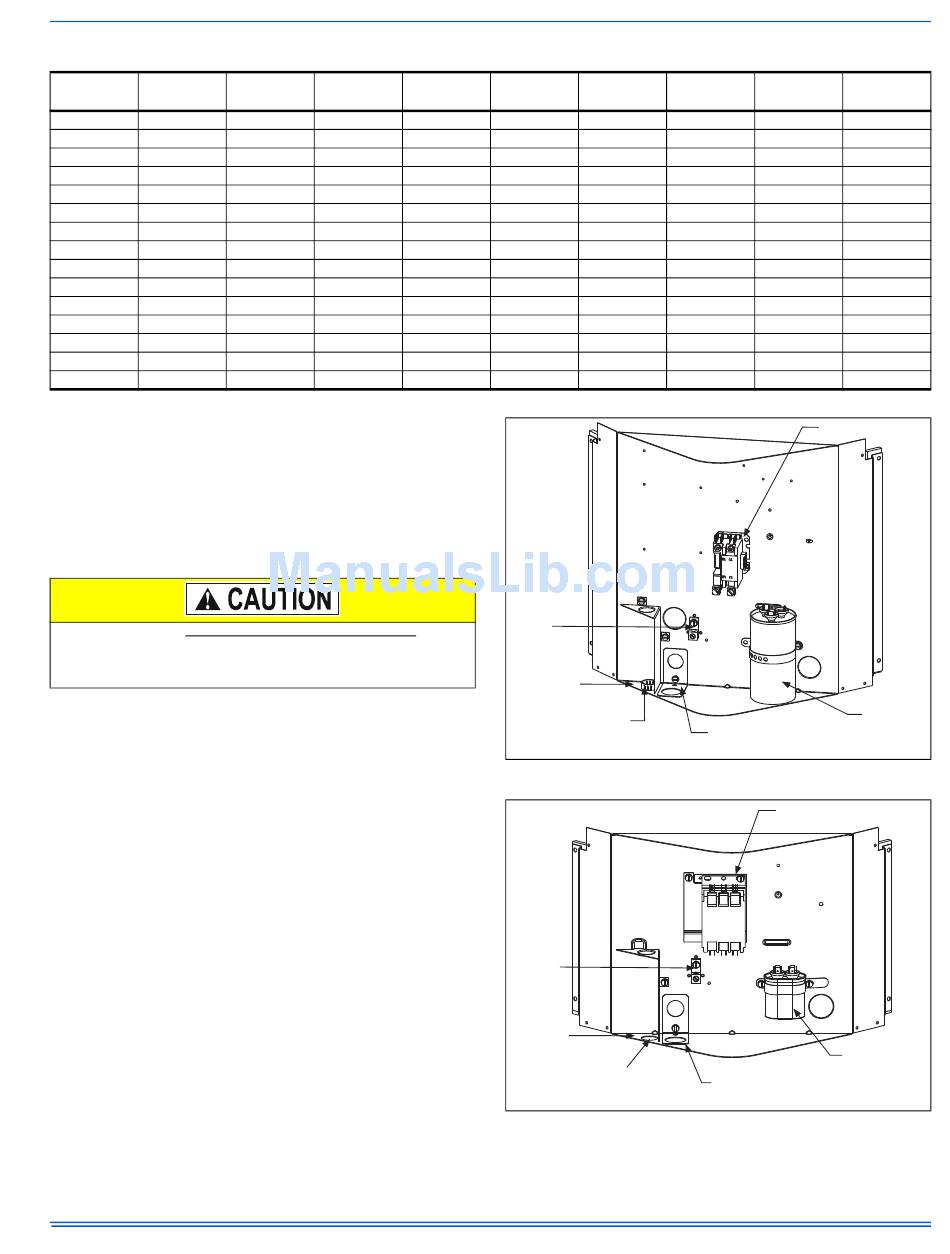

FIGURE 6: Outdoor Unit Control Box (Single Phase)
Ground
Lug
Low
Voltage
Box
"Fingered"
Bushing
FIGURE 7: Outdoor Unit Control Box (Three Phase)
872678-UIM-C-0213
PRESSURE PRESSURE
TEMP. °F
PSIG
274 105
278 106
282 107
287 108
291 109
295 110
299 111
304 112
308 113
313 114
317 115
322 116
326. 117
331 118
336 119
Contactor
Reversible High
Voltage Conduit Plate
Contactor
Fan
Capacitor
Reversible High
Voltage Conduit Plate
PSIG
341
345
350
355
360
365
370
375
380
385
391
396
401
407
412
Dual
Run/Fan
Capacitor
7
