Wiring Diagram; Wiring Diagram - Single Phase - Johnson Controls 13 Seer-TCGD Installation Manual

R-410a outdoor split-system air conditioning
Hide thumbs
Table of Contents

Advertisement

872678-UIM-C-0213
SECTION X: WIRING DIAGRAM

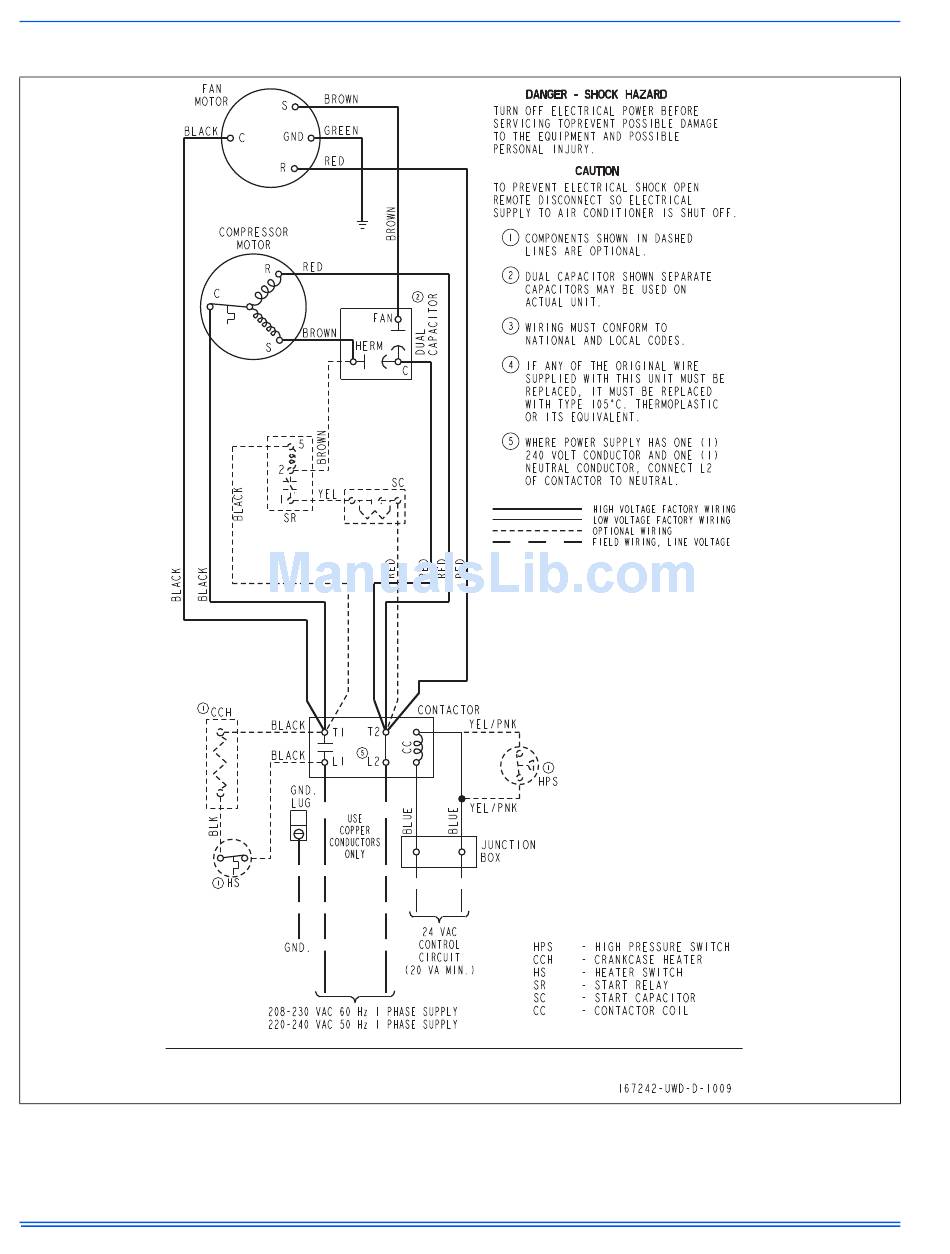

FIGURE 14: Wiring Diagram - Single Phase
