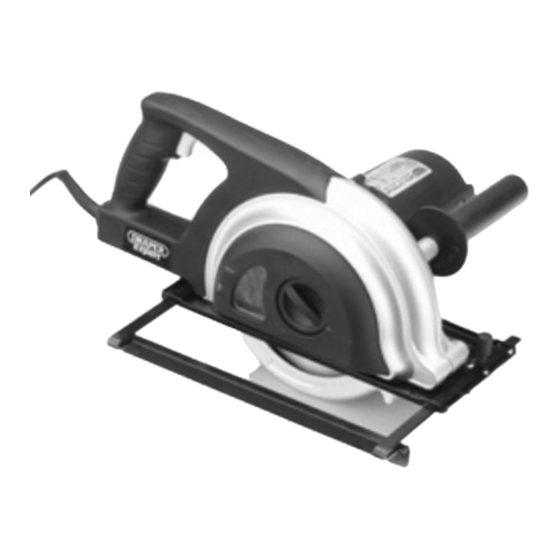

METAL CUTTING SAW
■ STOCK No.71278
■ PART No.CSM185C
74603
• INSTRUCTIONS •
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS TOOL.
12/2003
GENERAL INFORMATION
This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed
and should be kept with it for future references.
This manual describes the purpose for which the product has been designed and contains all the necessary
information to ensure its correct and safe use. We recommend that this manual is read before any operation or,
before performing any kind of adjustment to the product and prior to any maintenance tasks. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together with
longer life of the product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper CSM185C
Summary of Contents for Draper CSM185C
-
Page 1: General Information
12/2003 GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the product with which it is enclosed and should be kept with it for future references. This manual describes the purpose for which the product has been designed and contains all the necessary information to ensure its correct and safe use. -
Page 2: Table Of Contents
Getting to Know Your Metal Cutting Saw Assembly Operation and Use Maintenance/Optional Accessories DECLARATION OF CONFORMITY Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. England. Declare under our sole responsibility that the product: Stock No:- 71278. Part No:- CSM185C. - Page 3 This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you produce a dated receipt or invoice to verify your proof of purchase within the 12 month period.
-
Page 4: Power Supply
(i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted. -
Page 5: General Safety Instructions
IMPORTANT: Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 6: Getting To Know Your Metal Cutting Saw
GETTING TO KNOW YOUR METAL CUTTING SAW (10) (11) (13) (12) (14) (15) (1) On/off trigger switch (6) Parallel guide locks (12) Sliding blade guard (2) Soft grip handle (7) Height adjustment lock (13) Parallel guide (adjustable) (8) Brush covers (14) Spanner (3) Safety switch (9) Auxiliary side handle... -
Page 7: Assembly
ASSEMBLY NOTE: Fig.1. Remove the plug from the socket before carrying out adjustment, servicing or maintenance. AUXILIARY SIDE HANDLE (Fig.1.): Screw the auxiliary side handle (A) into the threaded hole on the front metal housing. BLADE FITTING AND REMOVAL Fig.2. (Figs.2-4): Remove the swarf collection box (B) by turning handle (C) anticlockwise. -
Page 8: Assembly
ASSEMBLY PARALLEL GUIDE (Fig.5.): Fig.5. Depending on the job in hand, it may be necessary to fit the parallel guide. Slide the guide legs through the pressings in the base and secure in place with locking knobs (G). - 7 -... -
Page 9: Operation And Use
OPERATION AND USE NOTE: Fig.6. Remove the plug from the socket before carrying out adjustment, servicing or maintenance. STARTING AND STOPPING THE SAW (Fig.6.): The on/off switch (H) is fitted with a safety button (I) so that it is not possible to start the saw by accident. -
Page 10: Operation And Use
OPERATION AND USE This saw is intended for cutting low hardened steel, carbon steel, stainless steel* and aluminium*. * Special blade required. IMPROPER USE The functions and use of this tool are those exclusively indicated in this manual. Any other use of the tool is considered as misuse. - 9 -... -
Page 11: Stock No
For correct tool operation always change the brushes in pairs, not separately. The use of original Draper spare parts is recommended. After having fitted new brushes allow the motor to run without load for at least five minutes for the brushes to bed. - Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
