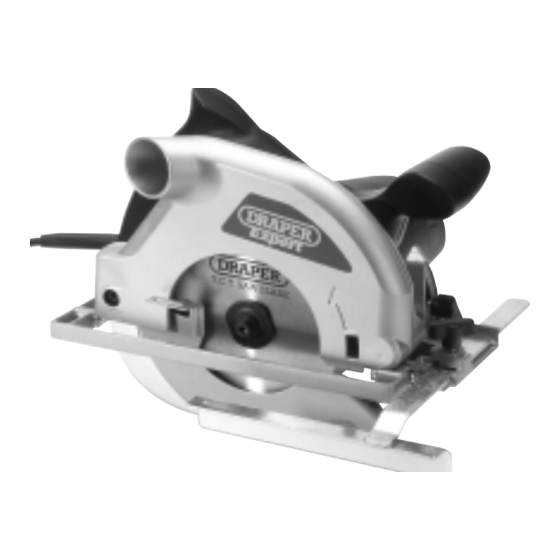

CIRCULAR SAW
STOCK No.57866
STOCK
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment,
which should be kept with the machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use.We recommend that this manual is read before any
operation of the machine, before performing any kind of adjustment to the machine, and prior to any
maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure
both machine and operator safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation
of the machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper
Tool policy of continuous improvement determines the right to make modifications without prior warning.
No.57854
• INSTRUCTIONS •
THE SAFE AND EFFECTIVE USE OF THIS TOOL.
GENERAL INFORMATION
110V
240V
PART No.CS153
10/2000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper CS153
Summary of Contents for Draper CS153
-
Page 1: Circular Saw
10/2000 GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which should be kept with the machine. This manual describes the purpose for which this tool has been designed and contains all the necessary information to ensure its correct and safe use.We recommend that this manual is read before any... -
Page 2: Table Of Contents
Operation and Use .....................6-8 Maintainance and Part Replacement ................9 Optional Accessories ....................10 DECLARATION OF CONFORMITY Draper Tools Ltd. Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF. England. Declare under our sole responsibility that the product: Stock Number:- 57866 & 57854. -
Page 3: Specification/Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you produce a dated receipt or invoice to verify your proof of purchase within the 12 month period. -
Page 4: Power Supply
(i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted. -
Page 5: General Safety Instructions
IMPORTANT Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 6: Getting To Know Your Circular Saw
GETTING TO KNOW YOUR CIRCULAR SAW 1. Draper Logo ✕✌ 2. Rating Plate ✕✘✌ 3. Mobile Lower Blade Guard ✙✌ 4. Saw Blade Flange ✕✙✌ 5. Flange Screw 6. Riving Knife ✘✌ 7. Depth Setting Knob 8. Cutting Guide Setting ✢✌... -
Page 7: Operation And Use
OPERATION & USE Make sure that the mains voltage matches the Fig.2 voltage stated on the machines rating plate. ✪✌ BLADE REMOVAL AND FITTING Set the base plate to the highest position (maximum depth of cut). Open the mobile lower blade guard ✪✌. Using a 30mm open ended spanner on the flats of the blade flange ✫✌... - Page 8 OPERATION & USE SWITCH Fig.3 The on/off switch ✰✌ is fitted with a safety button ✱✌ ✰✌ ✱✌ so that it is not possible to start the saw by accident. To start the saw press the safety button ✱✌ then depress button ✰✌...
-
Page 9: Operation And Use
OPERATION & USE IMPORTANT – DUST EXTRACTION FACILITY Fig.8 Draper Tools recommends that the dust extraction facility is used in conjunction with a suitable vacuum cleaner or dust collector (Fig.8). Recommended Draper models: WDV24, WDV1100, SWD1100, DE2000, DE1045 & DE1030. -
Page 10: Maintainance And Part Replacement
WARNING For correct tool operation always change the brushes in pairs, not separately. The use of original Draper spare parts is recommended. After having fitted new brushes allow the motor to run without load for at least five minutes for the brushes to bed in. -
Page 11: Optional Accessories
OPTIONAL ACCESSORIES Circular Saw Blade Part No. CSB153 Stock No. 58668 Specification: 153 mm TCT Saw Blade 12 Teeth - 10 -... - Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
