CIRCULAR SAW
STOCK No.57855
STOCK
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE
This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment,
which should be kept with the machine.
This manual describes the purpose for which this tool has been designed and contains all the necessary
information to ensure its correct and safe use. We recommend that this manual is read before any
operation of the machine, before performing any kind of adjustment to the machine, and prior to any
maintenance tasks. By following all the general safety instructions contained in this manual, it will ensure
both machine and operator safety, together with longer life of the tool itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation
of the machine.
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Draper
Tool policy of continuous improvement determines the right to make modifications without prior warning.
No.57856
• INSTRUCTIONS •
THE SAFE AND EFFECTIVE USE OF THIS TOOL.
GENERAL INFORMATION
110V
240V
PART No.CS184
03/2000
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper CIRCULAR SAW
Summary of Contents for Draper CIRCULAR SAW
-
Page 1: Circular Saw
03/2000 GENERAL INFORMATION This manual has been compiled by Draper Tools and is an integrated part of the power tool equipment, which should be kept with the machine. This manual describes the purpose for which this tool has been designed and contains all the necessary information to ensure its correct and safe use. -
Page 2: Table Of Contents
Declaration of Conformity ................1 Specification/Guarantee .................. 2 Power Supply ....................3 General Safety Instructions ................4 Getting to Know Your Circular Saw ..............5 Operation & Use ..................6 - 8 Maintenance & Parts Replacement ..............9 Optional Accessories ..................10 DECLARATION OF CONFORMITY Draper Tools Ltd. -
Page 3: Specification/Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you produce a dated receipt or invoice to verify your proof of purchase within the 12 month period. -
Page 4: Power Supply
(i.e. red). Fuse covers are available from your Draper Tools stockist. If the fitted plug is not suitable, it should be cut off and destroyed. *The end of the cable should now be suitably prepared and the correct type of plug fitted. -
Page 5: General Safety Instructions
IMPORTANT Draper Tools Limited recommends that this machine should not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you. -
Page 6: Getting To Know Your Circular Saw

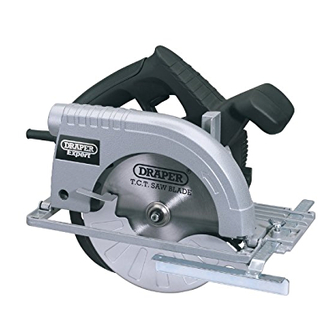

GETTING TO KNOW YOUR CIRCULAR SAW 1. Draper Logo 2. Rating Plate (14) 3. Mobile Lower Blade Guard 4. Saw Blade Flange 5. Flange Screw 6. Riving Knife 7. Depth Setting Knob 8. Cutting Guide Setting Knob 9. Parallel Cutting... -
Page 7: Operation & Use
OPERATION & USE Make sure that the mains voltage matches the voltage stated on the machine’s rating plate. FITTING THE SAW BLADE (Fig.2) Switch the machine off and disconnect it from the power supply. Set the base plate to the highest position (maximum depth of cut). - Page 8 OPERATION & USE SWITCH Fig.3 The on/off switch (G) is fitted with a safety button (H) so that it is not possible to start the saw by accident. To start the saw press the safety button (H) then depress switch (G) and hold. The saw will stop when switch (G) is released (Fig.3).
- Page 9 OPERATION & USE IMPORTANT – DUST EXTRACTION FACILITY Fig.8 Draper Tools recommends that the dust extraction facility is used in conjunction with a suitable vacuum cleaner or dust collector (Fig.8). Recommended Draper models: WDV24, WDV1100, SWD1100, DE2000, DE1045 & DE1030.
-
Page 10: Maintenance & Parts Replacement
The use of operation. For this reason avoid blocking the original Draper spare parts is recommended. air inlets with hands. After use disconnect the After having fitted new brushes allow the... -
Page 11: Optional Accessories
OPTIONAL ACCESSORIES Circular Saw Blades Part No. CSB184 Stock No. 58669 Specification: 184mm Saw Blade 14 Teeth (supplied with machine). Part No. CSB184N Stock No. 56057 Specification: 184mm TCT Nail Cutting Blade 14x16. - 10 -... - Page 12 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
