CONNECTIONS AND MAINTENANCE

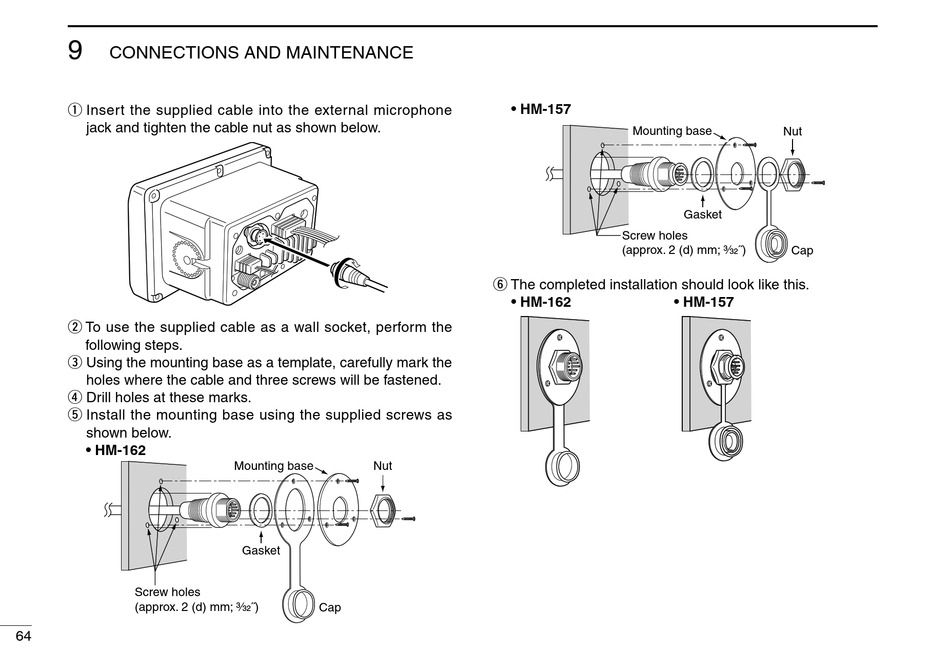

q Insert the supplied cable into the external microphone
jack and tighten the cable nut as shown below.
w To use the supplied cable as a wall socket, perform the
following steps.
e Using the mounting base as a template, carefully mark the
holes where the cable and three screws will be fastened.
r Drill holes at these marks.
t Install the mounting base using the supplied screws as
shown below.
• HM-162
Screw holes
(approx. 2 (d) mm;
64
Mounting base Nut
Gasket
⁄ ˝)
3 Cap
32
• HM-157
Mounting base
Screw holes
(approx. 2 (d) mm;
y The completed installation should look like this.
• HM-162
Nut
Gasket
⁄ ˝)
Cap
3
32
• HM-157
