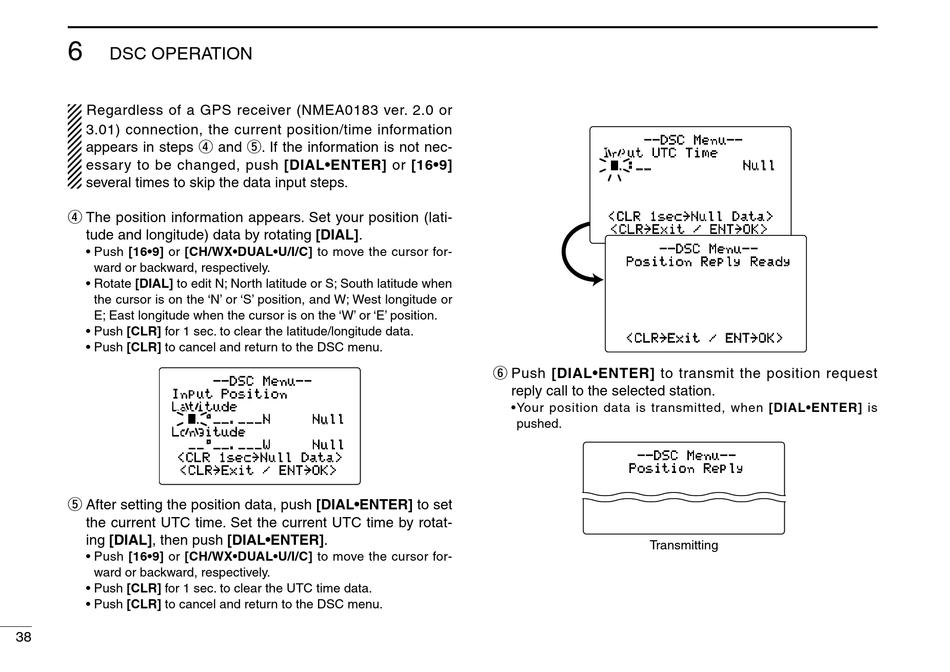

DSC OPERATION
Regardless of a GPS receiver (NMEA0183 ver. 2.0 or
3.01) connection, the current position/time information
appears in steps r and t. If the information is not nec-
essary to be changed, push [DIAL•ENTER] or [16•9]
several times to skip the data input steps.
r The position information appears. Set your position (lati-
tude and longitude) data by rotating [DIAL].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
• Rotate [DIAL] to edit N; North latitude or S; South latitude when
the cursor is on the 'N' or 'S' position, and W; West longitude or
E; East longitude when the cursor is on the 'W' or 'E' position.
• Push [CLR] for 1 sec. to clear the latitude/longitude data.
• Push [CLR] to cancel and return to the DSC menu.
Input Position
Latitude
__°__.___N
Longitude
__°__.___W
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT ˘ OK>
t After setting the position data, push [DIAL•ENTER] to set
the current UTC time. Set the current UTC time by rotat-
ing [DIAL], then push [DIAL•ENTER].
• Push [16•9] or [CH/WX•DUAL•U/I/C] to move the cursor for-
ward or backward, respectively.
• Push [CLR] for 1 sec. to clear the UTC time data.
• Push [CLR] to cancel and return to the DSC menu.
38
--DSC Menu--
Null
Null
--DSC Menu--
Input UTC Time
__:__
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT ˘ OK>
--DSC Menu--
Position Reply Ready
<CLR ˘ Exit / ENT ˘ OK>
y Push [DIAL•ENTER] to transmit the position request
reply call to the selected station.
•Your position data is transmitted, when [DIAL•ENTER] is
pushed.
--DSC Menu--
Position Reply
Transmitting
Null
