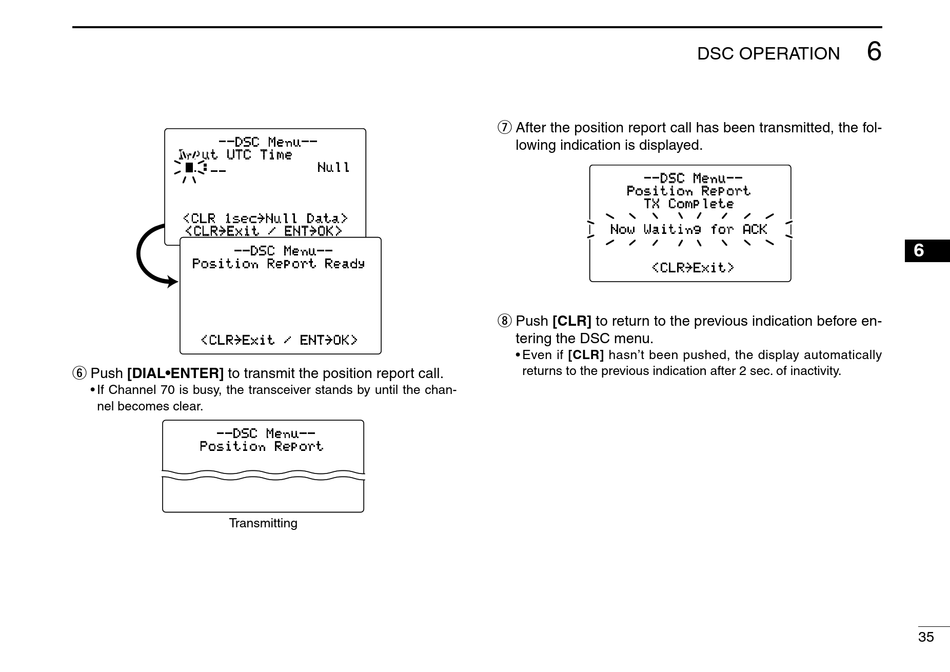

--DSC Menu--
Input UTC Time
__:__
<CLR 1sec˘Null Data>
<CLR˘Exit / ENT ˘ OK>
--DSC Menu--
Position Report Ready
<CLR ˘ Exit / ENT ˘ OK>
y Push [DIAL•ENTER] to transmit the position report call.
• If Channel 70 is busy, the transceiver stands by until the chan-
nel becomes clear.
--DSC Menu--
Position Report
Transmitting
Null
u After the position report call has been transmitted, the fol-
lowing indication is displayed.
--DSC Menu--
Position Report
TX Complete
Now Waiting for ACK
<CLR ˘ Exit>
i Push [CLR] to return to the previous indication before en-
tering the DSC menu.
• Even if [CLR] hasn't been pushed, the display automatically
returns to the previous indication after 2 sec. of inactivity.
