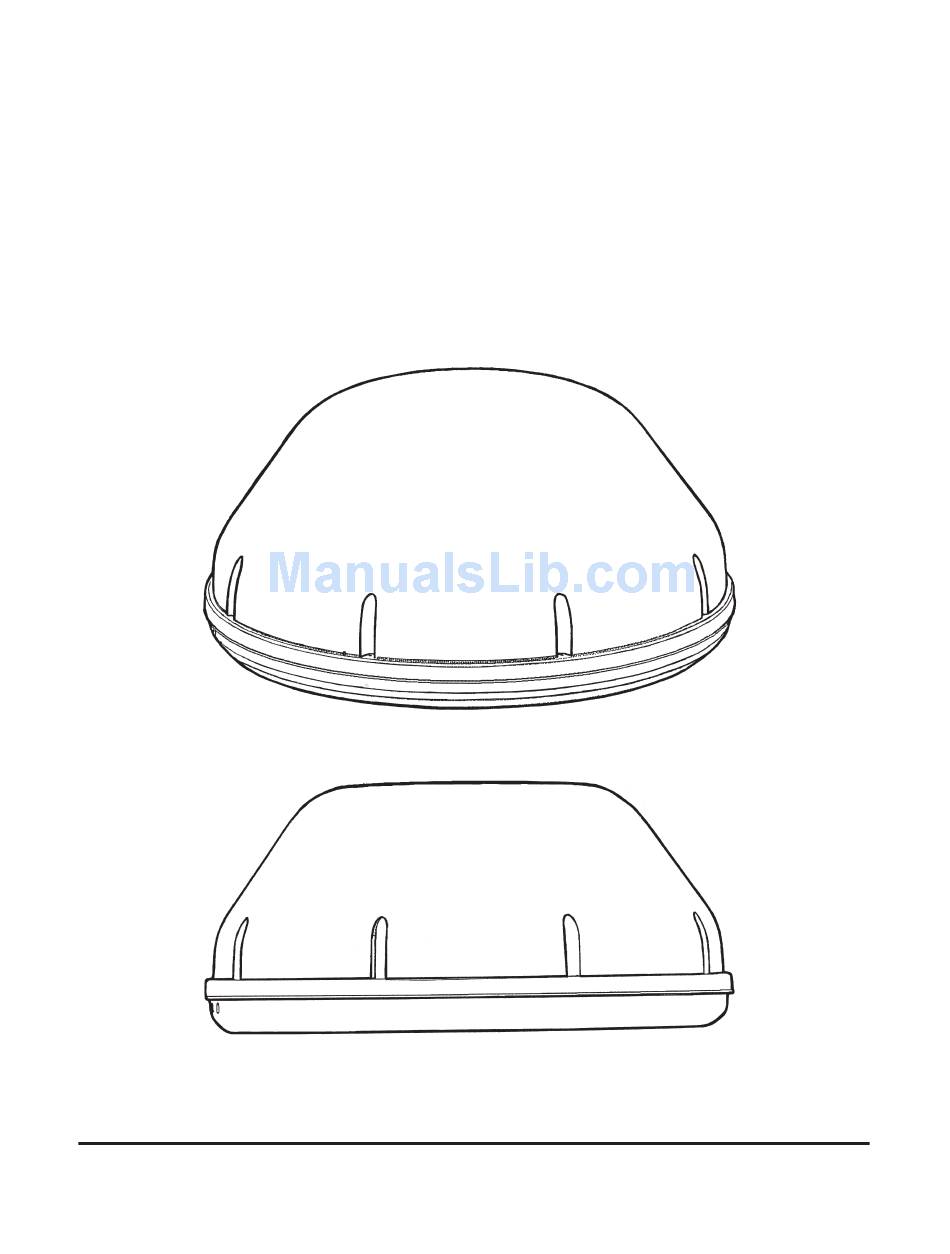

WINEGARD
Movin' View
TM
Digital Satellite Mobile Antenna for Two Receivers
for Use While Stationary or In-Motion
Model MV-4002
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2005 2452062 Rev. 5/05
1
Advertisement
Table of Contents
Related Manuals for Winegard Movin’ View MV-4002
Summary of Contents for Winegard Movin’ View MV-4002
- Page 1 Use While Stationary or In-Motion Model MV-4002 Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2005 2452062 Rev. 5/05...
- Page 2 Introduction/How Does Digital Satellite TV Work? About this manual —We hope this manual will provide clear instructions to install and operate MV-4002. Two symbols have been used — Indicates suggestions to make Indicates caution should be taken! processes easier for you.
- Page 3 1. Remove screws holding dome to base and remove dome. Place dome in safe spot to avoid damage. Switches will be set at 101° for DIRECTV . You will be changing these switches. ® Models MV-4002, MV-4000, MV-4005 MOUNTING (#1 represents Switch DOWN; #0 represents Switch up) OPTION A MOUNTING OPTIONS Sat.
-
Page 4: Operation
Operation b. If it moves off the signal , it is in an effort to verify 1. Turn on receiver and television set. The MV-4002 the signal and it should return to the signal shortly. must be connected to a receiver that is plugged into 120 VAC. - Page 5 To toggle between satellites when subscribing to multi-satellite programming— While in Sleep Mode, the MV-4002 will toggle be- If a switch other than SW42 appears, or you tween the primary and seconday satellites for either have an X in one of the boxes below the satel- DISH Network or DIRECTV.
-
Page 6: Parts Included
Parts Included • Tools Needed • How to Unpack PARTS INCLUDED: 1 Radome 1 large yellow spade connector 1 Power switch 2 small red spade connectors 1 Wall plate (white) All required screws and washers 1 Surface mount box 1 base with electronics, dish, single LNBF 1 Cable entry plate 30’... -
Page 7: Base Diagram
Base Diagram SWITCH LOCATION FIGURE 2 (SIDE OF BOX, SEE PAGE 3) CONTROL COAX CABLE AT BOX TO LNBF CONTROL BOX EL MOTOR GPS ANTENNA CABLE +12VDC POWER CABLE ANTENNA CENTER LINE OF THE VEHICLE CONTROL (DETAIL FOOT BELOW) MUST BE PARALLEL TO THE CENTER LINE... -
Page 8: Installation
WARNING: Level the base front to back and sealant around edge of feet and over screws. side to side. If base is not level the MV-4002 may Replace base on screws and reinstall nut. require more time to locate the correct satellite or may not locate the correct satellite. -
Page 9: Installing The Power Switch
+12VDC power cable from Determine location for GPS antenna. It is recom- the MV-4002 to the switch. Be sure the switch is in mended you place the GPS antenna 3 feet from dome. -
Page 10: Installation & Wiring
Installation • Wiring Connecting the receiver — MV-4002 Tracking System WIRING TWO RECEIVERS NOT USED Connecting one receiver 1. Mount the DC Passive D575p demultiplexer in the INPUT same cabinet as your receiver. D575p DEMULTIPLEXER 2. Connect the coax cable from the roof to the “input” on SAT RECEIVER the DC Passive D575p demultiplexer. -
Page 11: Troubleshooting
2. Make sure that the receiver is plugged in and the satellite in jack is connected to MV-4002. 3. Verify that the MV-4002 has had it’s three shipping straps re- moved. These straps are located inside the dome and keeps the dish from moving until it is installed. -
Page 12: Specifications & Warranty
Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
