WINEGARD
Æ
TM
Movin' View

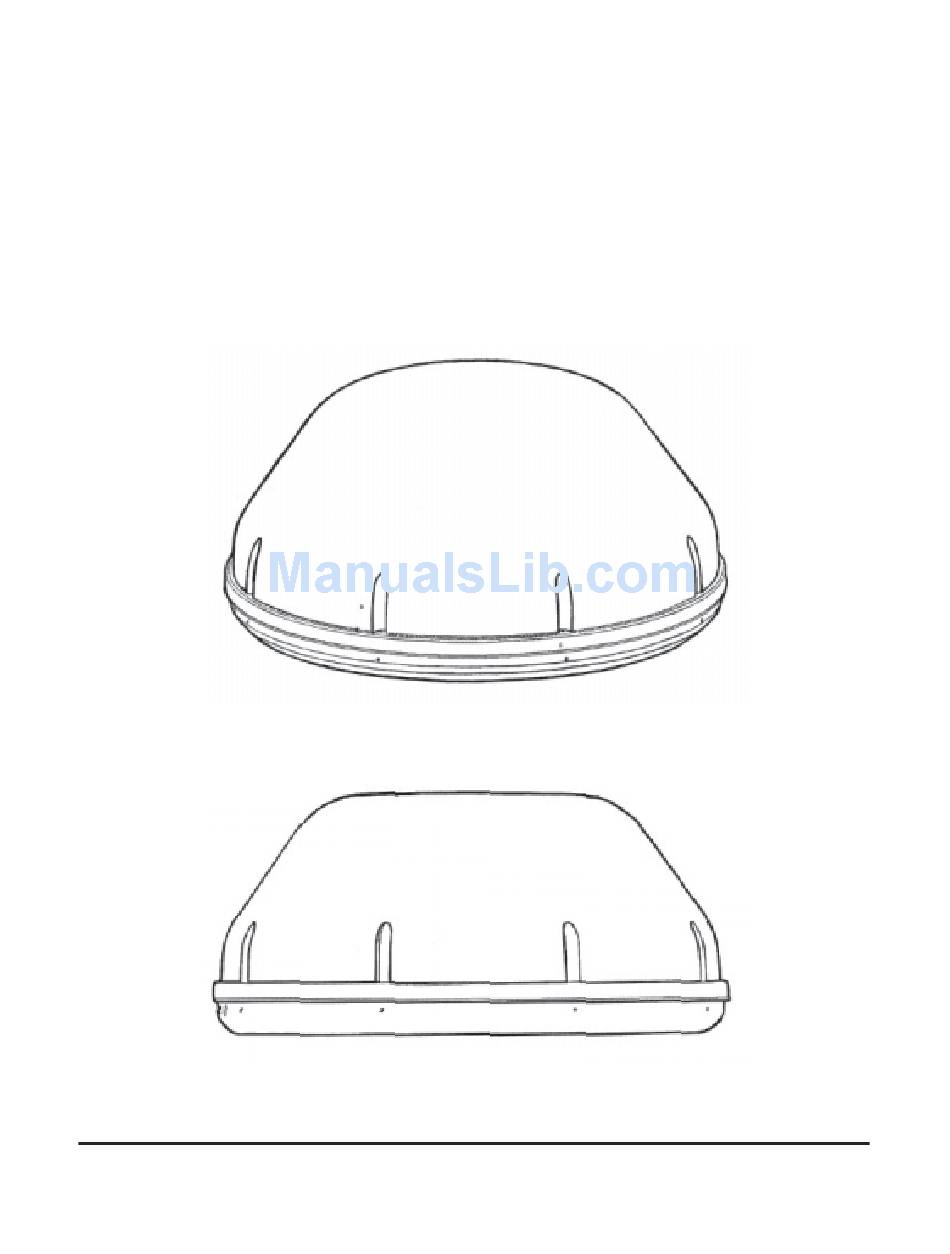

Digital Satellite Mobile Antenna for Single Receiver
Model MV-0099
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2002 2451007 Rev. 2/10/04
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Movin' View MV-0099 and is the answer not in the manual?

Questions and answers

Summary of Contents for Winegard Movin' View MV-0099

  • Page 1 Digital Satellite Mobile Antenna for Single Receiver Model MV-0099 Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2002 2451007 Rev. 2/10/04...
  • Page 2 - 1-800-DIRECTV (1-800-347-3288) Æ EXPRESSVUÆ - 1-888-SKYDISH (1-888-759-3474) Your new Winegard RV Digital Satellite System is an easy-to-use satellite TV reception system. Because it mounts on the top of your recreational vehicle, it goes where you go and provides quality reception of digital satellite signals.
  • Page 3 This model is PRESET for DISH Network If you have a DIRECTV must change the numbered switches inside the dome. TO CHANGE SWITCHES INSIDE DOME — 1. Remove screws holding dome to base and remove dome. Place dome in safe spot to avoid damage. Switches will be set at 119∞...
  • Page 4: Operation

    If the vehicle has not begun moving by the end of this 8 minute period, MV-0099 will move to peak on the alter- nate satellite, then move back to peak on the primary satellite. This will take 5-20 seconds, depending on the receiver model and software.
  • Page 5: Troubleshooting

    IF YOU DO NOT HAVE A SIGNAL: 1. The signal may be blocked by trees, hills or struc- tures. Pull into an area where no trees or buildings are in the line of sight from unit to the satellites. 2. Check your +12 VDC power switch. Make sure it is in the ON position.
  • Page 6: Parts Included

    About this manual — We hope this manual will provide clear instructions to install and operate MV-0099. Two symbols have been used ó Indicates caution should be taken! PARTS INCLUDED: 1 Radome 1 Power switch 2 Wall plates (white & brown)
  • Page 7: Installation Diagram

    Installation Diagram FIGURE 1 SWITCH BASE FOOT LOCATION ANTENNA HEYCO CONNECTORS BASE FOOT EL MOTOR POWER SUPPLY AZ MOTOR REFLECTOR REAR FOOT REAR BASE FOOT MUST DIRECTLY FACE REAR OF VEHICLE...
  • Page 8: Installation

    Installing unit on roof of vehicle — Install in DRY conditions only! IMPORTANT! Do not install this system in the rain, or under any wet conditions. Moisture may affect electronics and void your warranty! 1. For best performance and to reduce signal acquisi- tion time, park vehicle on a level surface.
  • Page 9: Installing The Power Switch

    INSTALLING THE POWER SWITCH 1. Decide the location of the power on/off switch. The switch should be close to the +12 VDC power cable coming from the MV-0099. Be sure the switch is turned off before you begin! See diagram on next page.
  • Page 10: Installation & Wiring

    INSTALLING THE POWER SWITCH, cont’d. 2. Connect the ground wire from the vehicle and the BLACK ground wire from the MV-0099 together, using large yellow spade connector. 3. Connect the YELLOW spade connector to the silver spade on the switch.
  • Page 11: Base Diagram

    Base Diagram FIGURE 6 #2 CONTROL #3 COAX CABLE AT BOX TO LNBF CONTROL BOX GPS ANTENNA HEYCO CON- NECTORS #1 LNBF VOLTAGE EL MOTOR POWER SUPPLY CONTROL (DETAIL BELOW) AZ MOTOR POWER SUPPLY (POWER WIRE, SEE DETAIL) BACK OF VEHICLE CONTROL BOX DETAIL DO NOT USE...
  • Page 12: Specifications & Warranty

    Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
