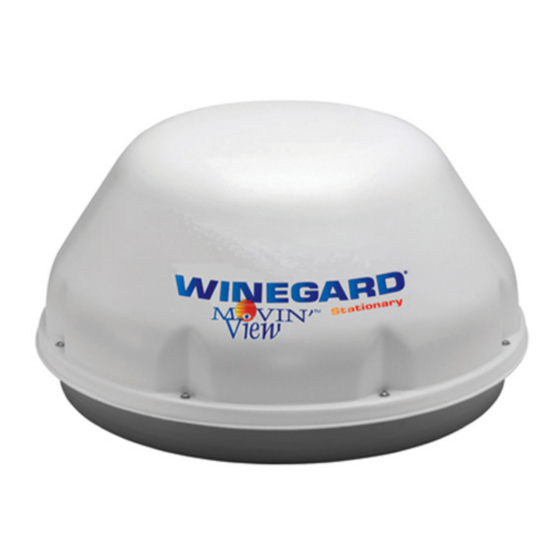

WINEGARD
Movin' View
TM
Digital Satellite Mobile Antenna for Two Receivers
for Use While Stationary
Models MV3500A (White Dome)
MV3535A (Black Dome)
MVA-35W (White Dome, OEM)
MVA-35B (Black Dome, OEM)
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2005 2452063 Rev. 12/19/05
1
Advertisement
Table of Contents
Related Manuals for Winegard Movin' View MV3535A
Summary of Contents for Winegard Movin' View MV3535A
- Page 1 MVA-35W (White Dome, OEM) MVA-35B (Black Dome, OEM) Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2005 2452063 Rev. 12/19/05...
- Page 2 - 1-888-SKYDISH (1-888-759-3474) ® system, used with your digital satellite receiver, will Your new Winegard RV Digital Satellite System is an deliver the best reception possible. easy-to-use satellite TV reception system. Because it mounts on the top of your recreational vehicle, it goes...
- Page 3 Quick Reference Guide NOTICE! ® This model is PRESET for DIRECTV receivers. If you have a DISH Network or ExpressVu (Canada) receiver, ® ® you must change the numbered switches inside the dome. TO CHANGE SWITCHES INSIDE DOME — 1. Remove screws holding dome to base and remove dome. Place dome in safe spot to avoid damage. Switches will be set at 101°...
- Page 4 101°W satellite and alternate 119°W satellite only. (Consult receiver manual for procedure.) Toggle: Your Winegard automatic After receiver is set for the correct dish selection, satellite dish will move from the when you request a channel located on a differ-...
-
Page 5: Parts Included
Parts Included • Tools Needed • How to Unpack PARTS INCLUDED: All required screws, washers, bolts, and nylocks 1 Radome 1 base with electronics, dish, dual LNBF 1 Power switch Silicone sealant 1 Wall plate (white) Surface Wipes 1 Surface mount box 30’... -
Page 6: Installation Diagram
Installation Diagram Control Box detail ELECTRONICS INTERIOR VIEW Model MV3500A (#1 represents Switch DOWN; #0 represents Switch up) Sat. Rcvr. Switch Set Position ......DISH NETWORK ........ 0 .. 0 .. 0 .. 1 .. 0 .. 0 .. 1 .. 1 DIRECTV ........ -
Page 7: Installation
Installation Installing unit on roof of vehicle — 3. Remove dome. Place dome in safe spot to avoid Install in DRY conditions only! damage. Place base on vehicle roof in the location selected. IMPORTANT! Do not install this system in the rain, or under any wet conditions. Mois- 4. - Page 8 Installation 7. Clean roof area where the base feet will be FIGURE 5 attached to the roof. Do not erase your marks! BASE EXTERIOR 8. Put approved sealant in the areas marked for the base feet. Place base feet on top of the sealant and screw down with the (4) #10 screws (provided) for each foot.
-
Page 9: Installing The Power Switch
Installation Cable entry installation — INSTALLING THE POWER SWITCH 1. Decide the best location for the cables to enter 1. Choose a location to install the MV3500A power the vehicle, and the location of the power switch ON/OFF switch. Remember when selecting a location and receiver (see “Installing the switch and that you will need to run the +12VDC power cable receiver”on pages 9 and 10). -
Page 10: Installation & Wiring
Installation • Wiring Initializing & replacing the dome after Connecting the receiver — connecting the receiver(s) — Connecting one receiver 1. Be sure vehicle is in a location free of all obstruc- 1. Connect the coax cable from the MV3500A to tions and with a clear view of the satellite. -
Page 11: Troubleshooting
Troubleshooting PROBLEM SOLUTION The MV3500A does not attempt to find a satellite or 1. Check your Power switch to verify that it is in the ON position. it never moves. 2. Check +12 V wires at unit to verify power. Check fuse on electronics. The dish never stops on any of the signals that 1. -
Page 12: Specifications & Warranty
Winegard Company, 3000 Kirkwood Street, Burlington, Iowa 52601, Telephone 319-754-0600 or visit www.winegard.com). Customer must provide proof of purchase with a dated sales receipt for the Winegard product to verify the product is under warranty. If the date of purchase cannot be verified, the warranty period shall be considered to begin thirty (30) days after the date of manufacture.
