WINEGARD
Movin' View
TM

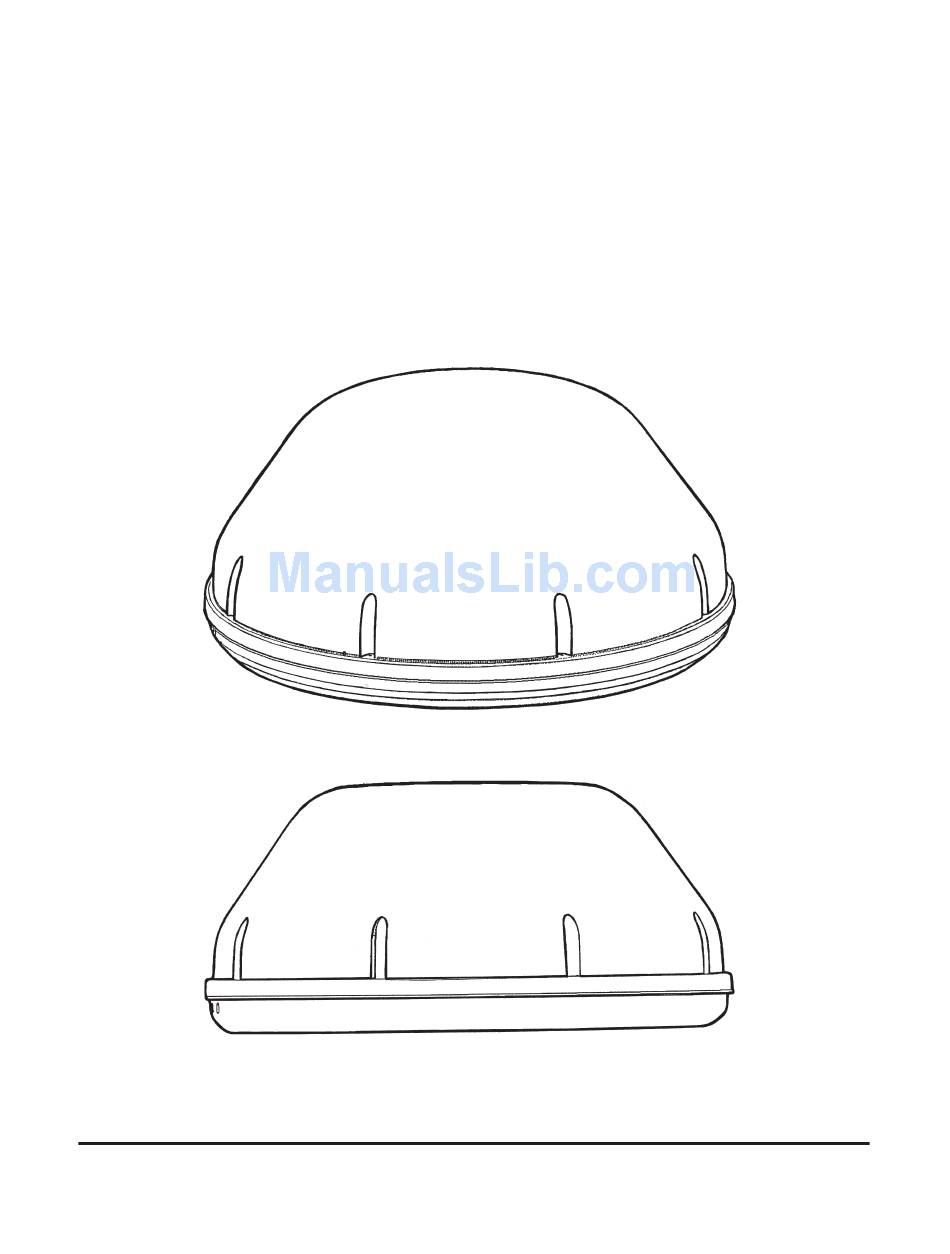

Digital Satellite Mobile Antenna for Single Receiver
for Use While Stationary or In-Motion
Model MV-4005
Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787 • www.winegard.com
Printed in U.S.A. © Winegard Company 2005 2451010 5/05
1
Advertisement
Table of Contents
Related Manuals for Winegard Movin’ View MV-4005
Summary of Contents for Winegard Movin’ View MV-4005
- Page 1 Use While Stationary or In-Motion Model MV-4005 Made in the U.S.A. U.S. Patent Nos. 6,023,247; 6,188,300 Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000 319/754-0600 • FAX 319/754-0787 • www.winegard.com Printed in U.S.A. © Winegard Company 2005 2451010 5/05...
- Page 2 ® - 1-888-SKYDISH (1-888-759-3474) deliver the best reception possible using GPS (Glo- Your new Winegard RV Digital Satellite System is an bal Positioning System) and precision gyroscopes. easy-to-use satellite TV reception system. Because it mounts on the top of your recreational vehicle, it goes...
- Page 3 Quick Reference Guide NOTICE! ® This model is PRESET for DIRECTV receivers Mounting Option A. If you have a DISH Network or ExpressVu (Canada) receiver, or ® ® you choose Mounting Option B, you must change the numbered switches inside the dome. TO CHANGE SWITCHES INSIDE DOME —...
-
Page 4: Operation
Operation If it moves off the signal, it is in an effort to verify the 1. Turn on receiver and television set. The MV-4005 signal and it should return to the signal shortly. must be connected to a receiver that is plugged into 120 VAC. - Page 5 Toggle: Your Winegard Automatic DISH Network programming (DISH 500) satellite dish will move from the DISH Network receivers must have the “SW42”...
-
Page 6: Parts Included
Parts Included • Tools Needed • How to Unpack PARTS INCLUDED: 1 Radome 1 Barrel connector 1 Power switch 1 large yellow spade connector 2 Wall plates (white & brown) 2 small red spade connectors 1 Surface mount box All required screws, washers, bolts, and nylocks 1 Cable entry plate 1 base with electronics, dish, single LNBF 2 Cable ties... -
Page 7: Base Diagram
Base Diagram SWITCH LOCATION FIGURE 2 (SIDE OF BOX, SEE PAGE 3) CONTROL COAX CABLE AT BOX TO LNBF CONTROL BOX EL MOTOR GPS ANTENNA CABLE +12VDC POWER CABLE ANTENNA CENTER LINE OF THE VEHICLE CONTROL (DETAIL FOOT BELOW) MUST BE PARALLEL TO THE CENTER LINE... -
Page 8: Installation
Installation Installing unit on roof of vehicle — 6. Place the unit on the roof in its permanent location Install in DRY conditions only! and mark around the base bracket, Figure 4. (Make IMPORTANT! Do not install this system sure the rear adjustable base foot is parallel with in the rain, or under any wet conditions. -
Page 9: Installing The Power Switch
Installation GPS installation — INSTALLING THE POWER SWITCH 10. The GPS antenna is pre-wired and has a 1 meter 1. Choose a location to install the MV-4005 power cable running through one of the connectors. ON/OFF switch. Remember when selecting a location that you will need to run the +12VDC power cable Determine location for GPS antenna. -
Page 10: Installation & Wiring
Connect the coax cable from the roof to the “Satellite In” connection on the receiver. (A dual receiver upgrade kit is available. Contact Winegard Company for more information.) INITIALIZING --- 1. Be sure vehicle is in a location free of all obstruc- tions and with a clear view of the southern sky. -
Page 11: Troubleshooting
3. Check the GPS antenna cable for damage. If there is a pinched or damaged section, contact Winegard. 1. Make sure that your receiver is set up correctly. The dish never stops on any of the signals that For DISH Network, the check switch should read either “Un-... -
Page 12: Specifications & Warranty
Company, 3000 Kirkwood Street, Burlington, Iowa 52601-2000, telephone 319-754-0600). Winegard Company (at its option) will either repair or replace the defective product at no charge to you. This warranty covers parts, but does not cover any costs incurred in removal, shipping or reinstallation of the product. This limited...
