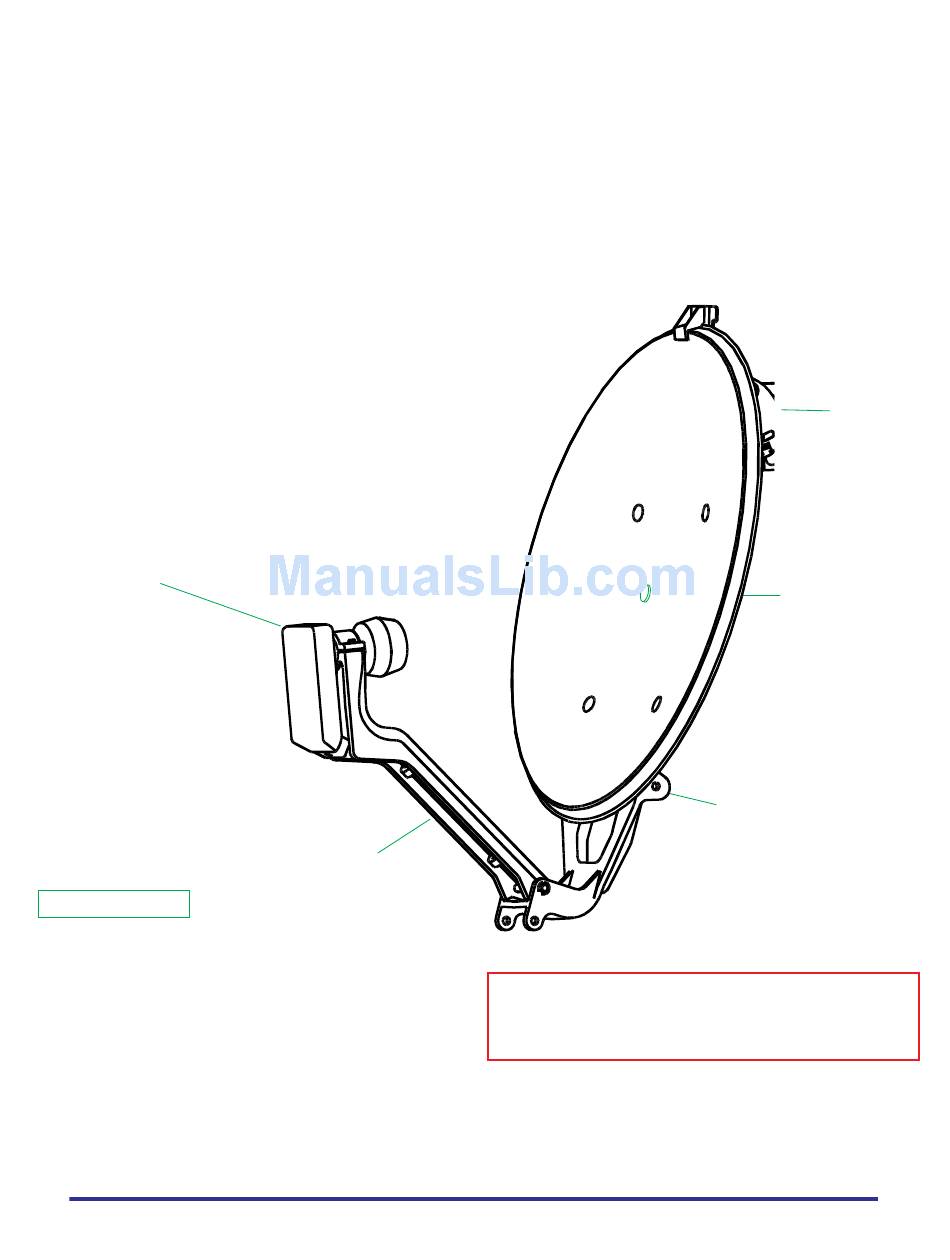

18" Digital Satellite Antenna
NOTE: The MM-3084 Mount Pipe and
MM-3002/3003 Clamp Brackets are not
supplied with MM-3200.
LNBF
UNPACKING
After unpacking the system, verify that you have the
following: antenna/mount, elevation assembly, feed
support w/LNBF & coaxial cable attached, compass and
storage bag. If you do not, call Winegard Company at
1-800-288-8094 between the hours of 8:00 a.m. and
3:30 p.m central time, Monday through Friday.
INSTALLATION INSTRUCTIONS
WINEGARD
Truck/RV Mount
Model MM-3200 Antenna
Models MM-3084, MM-3002 & MM-3003
ANTENNA/MOUNT MADE IN U.S.A.
U.S. Patent 5,532,710
Feed Support
Winegard Company • 3000 Kirkwood St. • Burlington, IA 52601-2000
319/754-0600 • FAX 319/754-0787
Printed in U.S.A. © Winegard Company 1999 2451160 Rev. 10/99
®
NOTE: Before proceeding with installation of
satellite antenna/mount, viewing enclosed
installation video is recommended.
Elevation
Assembly
18" Antenna
Backup Support
Advertisement
Related Manuals for Winegard MM-3084
Summary of Contents for Winegard MM-3084
- Page 1 & coaxial cable attached, compass and NOTE: Before proceeding with installation of storage bag. If you do not, call Winegard Company at satellite antenna/mount, viewing enclosed 1-800-288-8094 between the hours of 8:00 a.m. and installation video is recommended.
- Page 2 ASSEMBLY STEP 1. Attach feed support to the backup support. Feed Support See Figures 1 & 2. Make sure spring is locked into Spring place. Coax Downlead After inserting pin, from LNBF Feed Support swing long part of spring up into the feed support and snap into place under cable clip.
- Page 3 STEP 3. Attach the MM-3084 (pipe that antenna mounts on) to your truck/RV. If using the MM-3002 clamp brackets, proceed to step 9. If using the MM- 3003 clamp brackets, proceed to step 4. STEP 7. Use (4) 5/16" x 1-1/2" bolts supplied to secure MM-3003 Assembly pipe clamp brackets to side of truck/RV.
- Page 4 4 plastic clamp grips. Insert STEP 9. Slip the small plastic shims over the handrail/ rubber shims between clamp brackets and MM- ladder and the large plastic shims over the MM-3084 3001 pipie and handrail/ladder. See Figure 6. pipe. See Figure 6.
-
Page 5: Operation
STEP 2. Connect coax from LNBF to receiver. Optional Attach Winegard exterior cable/TV receptacle (WA-1024) padlock here available for easy coax connection into cab. STEP 3. Connect coax from receiver to TV. STEP 4. Plug in the receiver and TV. -
Page 6: Two Year Limited Warranty
Iowa 52601-2000, telephone 319-754-0600). STEP 11. Slowly rotate the antenna 2 then wait 2 Winegard Company (at its option) will either repair or seconds, then rotate again in the direction of the satellite. replace the defective product at no charge to you. This... -
Page 7: Exploded Parts View
EXPLODED PARTS VIEW (2) 3200377 (6) 2160024 Clamp Bushing 1/4 Flat Washer (2) 2160352 1/4-20 x 1" Carriage Bolt (4) 2160228 1/4-20 Hex Nut 2745342 2745876 Clamp Elevation Frame Bracket Bracket 2160331 3200378 2160220 1/4-20 x 2-1/2" Top Clamp 1/4-20 Nylock Bolt Hex Nut 2160172... - Page 8 (must be assembled onto fixed tube w/2200373 before rotate tube is inserted) 3200373 Elevation Clamp Bushing (must be assembled onto fixed tube w/2200372 before rotate tube is inserted) 2200175 Plug Printed in U.S.A. © Winegard Company 1999 2451160 Rev. 2/2001...
