DS-7200-ST Series DVR Quick Operation Guide

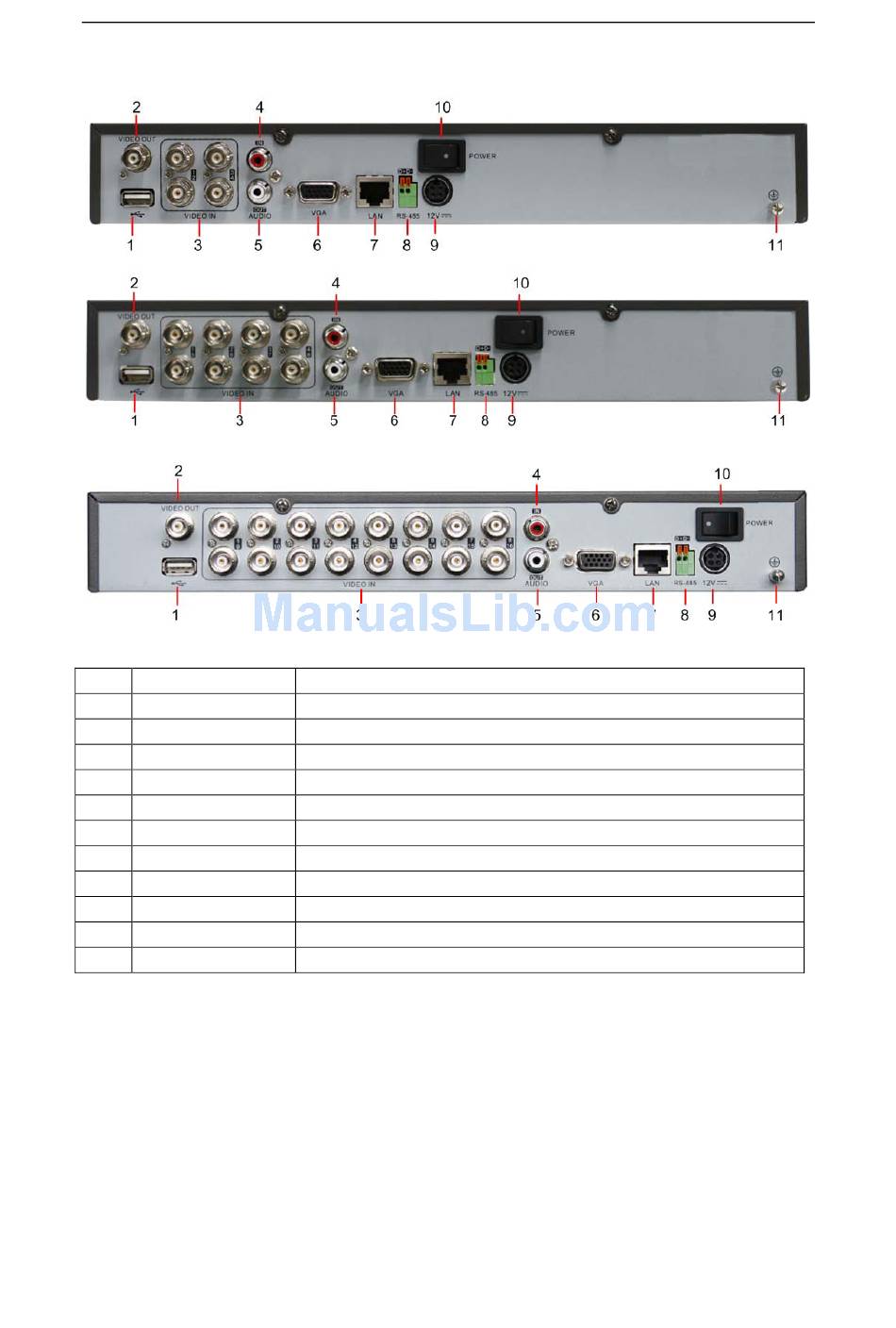

DS-7204HVI-ST/SN, DS-7208HVI-ST/SN, DS-7216HVI-ST/SN:
No. Item
1 USB
2 VIDEO OUT
3 VIDEO IN
4 AUDIO IN
5 AUDIO OUT
6 VGA
7 LAN
8 RS-485 Interface
9 12V
10 POWER
11 GND
Description
Connector for USB devices
BNC connectors for video output
BNC connectors for analog video input
RCA connectors for analog audio input
RCA connector for audio output
DB15 connector for VGA output. Display local video output and menu
Connector for LAN (Local Area Network)
Connector for RS-485 devices. D+, D- pin connects to PTZ
12VDC power supply
Switch for turn on/off the device
Ground(needs to be connected when DVR starts up)
12
