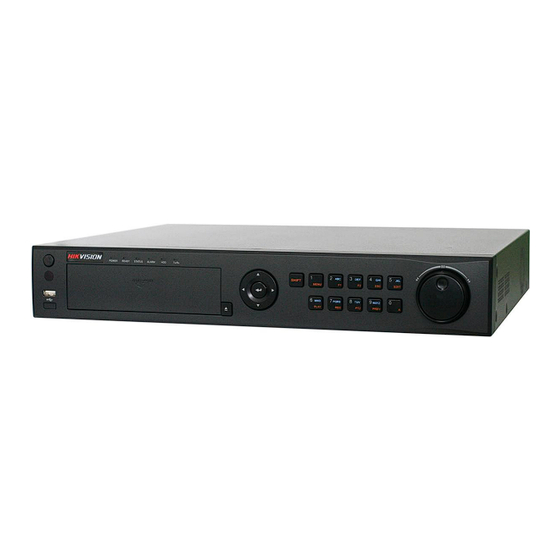

HIKVISION DS-7204HVI-ST Technical Manual

Hide thumbs Also See for DS-7204HVI-ST:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Hikvision Technical Manual
DS-7204/7208/7216HVI-ST
Series DVR
Technical Manual
©2006 – 2011 by HIKVISION. All rights reserved.

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-7204HVI-ST

Summary of Contents for HIKVISION DS-7204HVI-ST

  • Page 1 Hikvision Technical Manual DS-7204/7208/7216HVI-ST Series DVR Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
  • Page 3 Hikvision Technical Manual Overview Developed by Hikvision on the basis of the latest technology, DS-7216HVI-ST Series Digital Video Recorder combines the latest in advanced H.264 video encoding and decoding technologies delivering high performance rock-solid reliability and longer recording times. DS-7216HVI-ST Digital Video Recorder can be used as a standalone video surveillance product, as well as to build up a powerful surveillance network making it is perfect for home or small business applications.

  • Page 4: Main Features

     Partial digital zoom by using mouse when in PTZ control mode  16-ch synchronous playback  Support dual stream  Different recording storage period configurable for each channel  NTP, SADP, DHCP protocols supported ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 5: Local Monitoring

    HDD file system is compatible with Windows. Use pre-allocating hard  disk management technology, and no disk fragments. Recording Cycle and non-cycle recording mode.  Scheduled and event video encoding parameters.  ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 6: Alarm & Exception

    TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,  etc. Unicast and multicast supported; TCP and UDP protocols applicable in  unicast transmission. Remote search, playback and download, lock/unlock of video files;  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 7  Built-in WEB Server.  Development Provision of SDK in Windows and Linux operating systems.  Application software source code of Demo.  Support and training service for application system development.  ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 8: Rear Panel & Interfaces

    LINE IN ④ AUDIO OUT ⑤ VGA Interface ⑥ RS-232 Serial Interface ⑦ ⑧ USB Interface ⑨ RS-485 Interface ⑩ ALARM IN, ALARM OUT ⑪ 12VDC Power Supply Interface ⑫ POWER ⑬ ⑭ ©2006 – 2011 by HIKVISION. All rights reserved.

  • Page 9: Specifications

    Working humidity 10% ~ 90% Others 19-inch standard rack-mounted 1.5 U Chassis chassis Dimensions 440 ×390 ×70 mm (W x D x H) Weight ≤8 kg (without hard disk or DVD-R/W) ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 10 Hikvision Technical Manual Overview Developed by Hikvision on the basis of the latest technologies, DS-7208HVI-ST Series Digital Video Recorder combines with the advanced H.264 video encoding and decoding standard and maintains high performance rock-solid reliability and longer recording service time.
  • Page 11  Partial digital zoom by using mouse when in PTZ control mode  8-ch synchronous playback  Support dual stream  Different recording storage period configurable for each channel  NTP, SADP, DHCP protocols supported ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 12 HDD file system is compatible with Windows. Use pre-allocating hard  disk management technology, and no disk fragments. Recording Cycle and non-cycle recording mode.  Scheduled and event video encoding parameters.  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 13 TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,  etc. Unicast and multicast supported; TCP and UDP protocols applicable in  unicast transmission. Remote search, playback and download, lock/unlock of video files;  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 14  Built-in WEB Server.  Development Provision of SDK in Windows and Linux operating systems.  Application software source code of Demo.  Support and training service for application system development.  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 15 LINE IN ④ AUDIO OUT ⑤ VGA Interface ⑥ RS-232 Serial Interface ⑦ ⑧ USB Interface ⑨ POWER ⑩ RS-485 Interface, ALARM IN, ALARM OUT ⑪ 12VDC Power Supply Interface ⑫ ⑬ ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 16 -10 ℃ ~ +55 ℃ temperature Working humidity 10% ~ 90% Others 19-inch standard rack-mounted Chassis chassis Dimensions 445× 45 ×290 mm (W x D x H) Weight ≤4 kg (without hard disk or DVD-R/W) ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 17 Hikvision Technical Manual Overview Developed by Hikvision on the basis of the latest technologies, DS-7204HVI-ST Series Digital Video Recorder combines with the advanced H.264 video encoding and decoding standard and maintains high performance rock-solid reliability and longer recording service time.
  • Page 18  Partial digital zoom by using mouse when in PTZ control mode  Up to 4-ch synchronous playback  Support dual stream  Different recording storage period configurable for each channel  NTP, SADP, DHCP protocols supported ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 19 HDD file system is compatible with Windows. Use pre-allocating hard  disk management technology, and no disk fragments. Recording Cycle and non-cycle recording mode.  Scheduled and event video encoding parameters.  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 20 TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,  etc. Unicast and multicast supported; TCP and UDP protocols applicable in  unicast transmission. Remote search, playback and download, lock/unlock of video files;  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 21  Built-in WEB Server.  Development Provision of SDK in Windows and Linux operating systems.  Application software source code of Demo.  Support and training service for application system development.  ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 22 LINE IN ④ AUDIO OUT ⑤ ⑥ VGA Interface ⑦ USB Interface ⑧ RS-232 Serial Interface ⑨ RS-485 Interface, ALARM IN, ALARM OUT ⑩ POWER ⑪ 12VDC Power Supply Interface ⑫ ⑬ ©2006 – 2011 by HIKVISION. All rights reserved.
  • Page 23 -10 ℃ ~ +55 ℃ temperature Others Working 10% ~ 90% humidity Dimensions 315 × 230 × 45 mm (W x D x H) Weight ≤2.5 kg (without hard disk or DVD-R/W) ©2006 – 2011 by HIKVISION. All rights reserved.
