Hikvision Technical Manual
DS-7208HVI-ST Series DVR
Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.

Advertisement

loading

Related Manuals for HIKVISION DS-7208HVI-ST Series

Summary of Contents for HIKVISION DS-7208HVI-ST Series

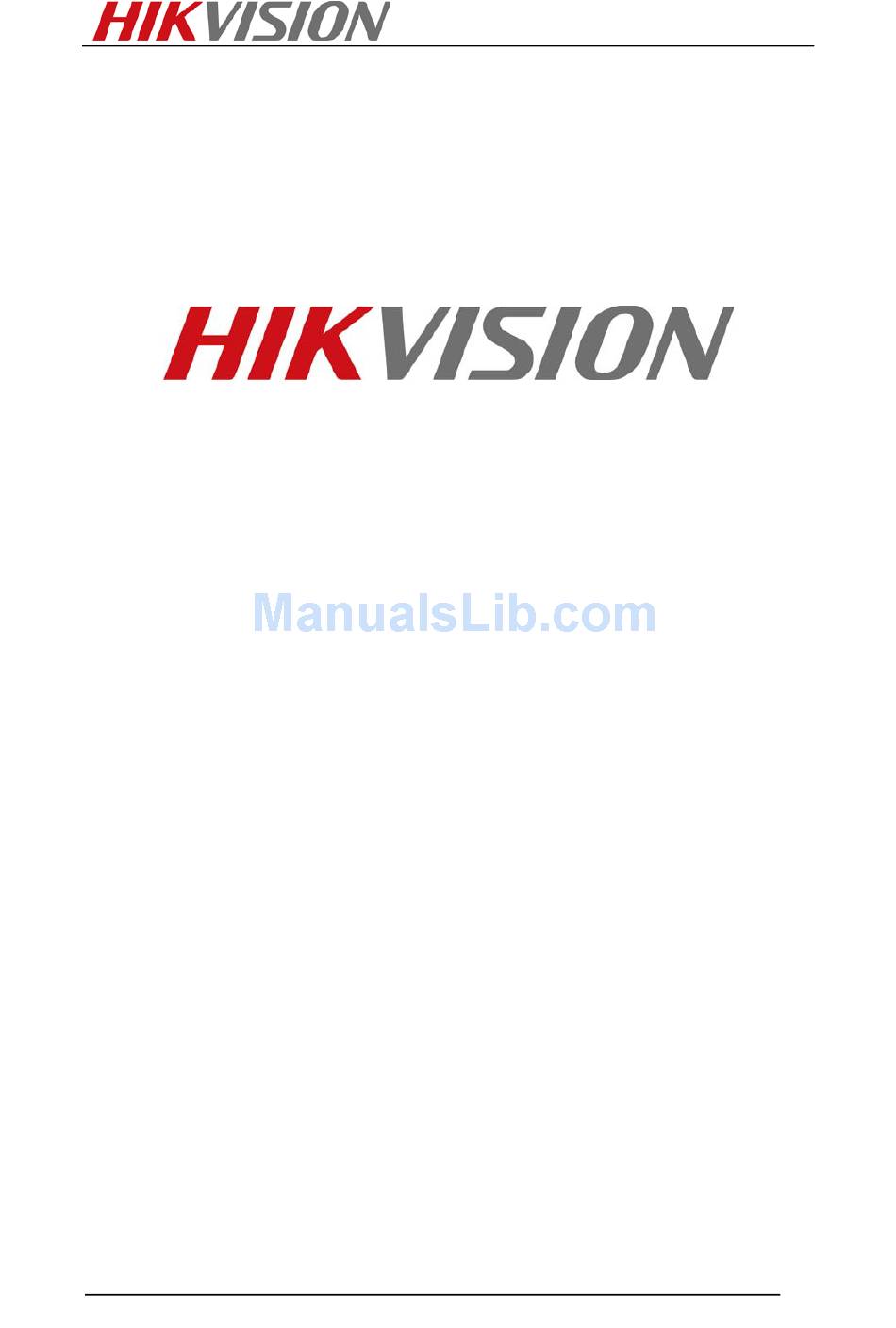

  • Page 1 Hikvision Technical Manual DS-7208HVI-ST Series DVR Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
  • Page 3 Hikvision Technical Manual Overview Developed by Hikvision on the basis of the latest technologies, DS-7208HVI-ST Series Digital Video Recorder combines with the advanced H.264 video encoding and decoding standard and maintains high performance rock-solid reliability and longer recording service time.

  • Page 4: Main Features

     Partial digital zoom by using mouse when in PTZ control mode  8-ch synchronous playback  Support dual stream  Different recording storage period configurable for each channel  NTP, SADP, DHCP protocols supported ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 5: Hard Disk Management

    HDD file system is compatible with Windows. Use pre-allocating hard  disk management technology, and no disk fragments. Recording Cycle and non-cycle recording mode.  Scheduled and event video encoding parameters.  Multiple recording types, including manual, continuous, alarm, motion,  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 6 TCP/IP protocol suites, PPPoE, DHCP, DNS, DDNS, NTP, SADP protocols,  etc. Unicast and multicast supported; TCP and UDP protocols applicable in  unicast transmission. Remote search, playback and download, lock/unlock of video files;  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 7  Built-in WEB Server.  Development Provision of SDK in Windows and Linux operating systems.  Application software source code of Demo.  Support and training service for application system development.  ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 8: Rear Panel & Interfaces

    ④ LINE IN ⑤ AUDIO OUT ⑥ VGA Interface ⑦ RS-232 Serial Interface ⑧ LAN ⑨ USB Interface ⑩ POWER ⑪ RS-485 Interface, ALARM IN, ALARM OUT ⑫ 12VDC Power Supply Interface ⑬ GND ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 9: Specifications

    Power supply 12VDC Consumption ≤10W (without hard disk or DVD-R/W) Working -10℃~+55℃ temperature Others Working 10%~90% humidity Chassis 19-inch standard rack-mounted 1U chassis Size(mm) 45mm(H)×445mm(W)×290mm(D) Weight ≤4Kg (without hard disk or DVD-R/W) ©2006 – 2010 by HIKVISION. All rights reserved.
