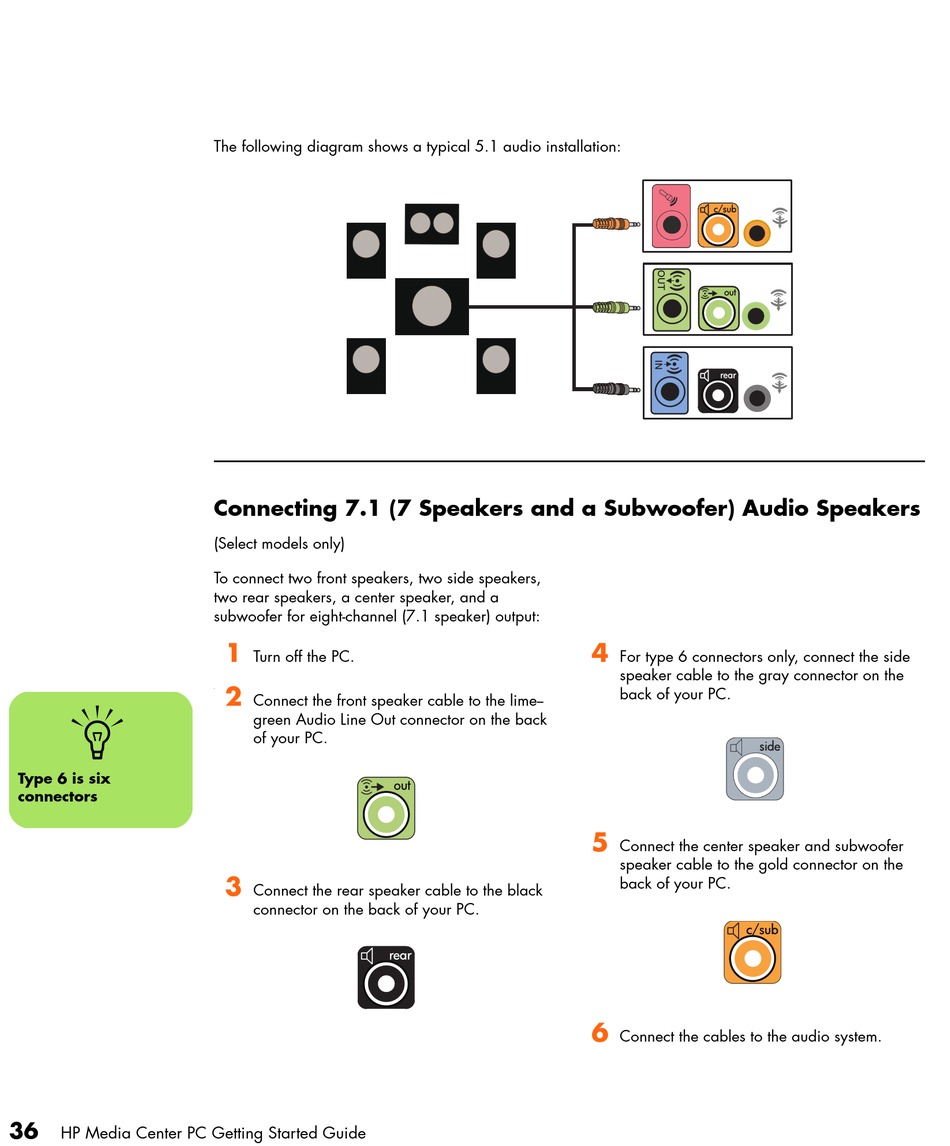

The following diagram shows a typical 5.1 audio installation:

Connecting 7.1 (7 Speakers and a Subwoofer) Audio Speakers

(Select models only)
To connect two front speakers, two side speakers,
two rear speakers, a center speaker, and a
subwoofer for eight-channel (7.1 speaker) output:
1
Turn off the PC.
2
.
Connect the front speaker cable to the lime--
green Audio Line Out connector on the back
of your PC.
3
Connect the rear speaker cable to the black
connector on the back of your PC.
4
For type 6 connectors only, connect the side
speaker cable to the gray connector on the
back of your PC.
5
Connect the center speaker and subwoofer
speaker cable to the gold connector on the
back of your PC.
6
Connect the cables to the audio system.
