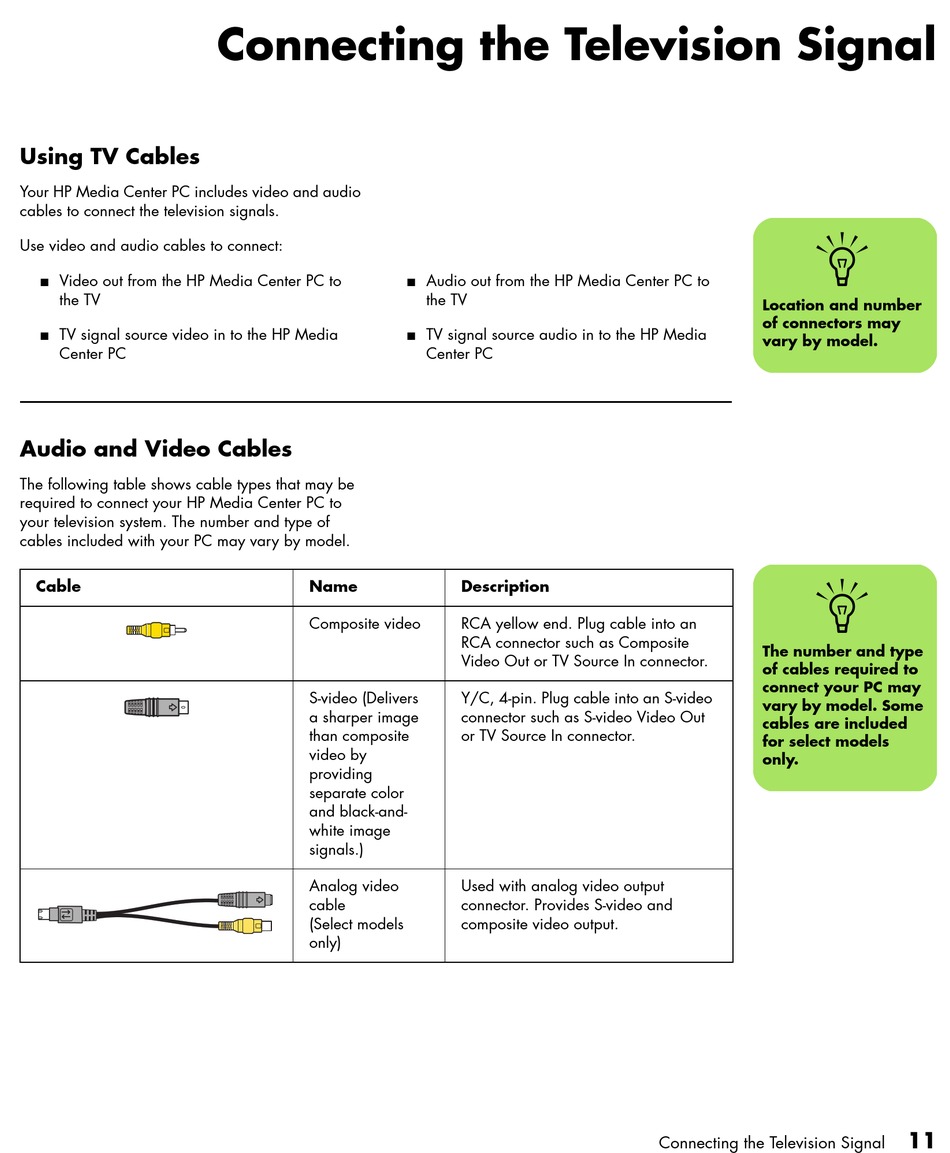

Using TV Cables

Your HP Media Center PC includes video and audio
cables to connect the television signals.
Use video and audio cables to connect:
Video out from the HP Media Center PC to
the TV
TV signal source video in to the HP Media
Center PC

Audio and Video Cables

The following table shows cable types that may be
required to connect your HP Media Center PC to
your television system. The number and type of
cables included with your PC may vary by model.
Cable

Connecting the Television Signal

Name
Composite video
S-video (Delivers
a sharper image
than composite
video by
providing
separate color
and black-and-
white image
signals.)
Analog video
cable
(Select models
only)
Audio out from the HP Media Center PC to
the TV
TV signal source audio in to the HP Media
Center PC
Description
RCA yellow end. Plug cable into an
RCA connector such as Composite
Video Out or TV Source In connector.
Y/C, 4-pin. Plug cable into an S-video
connector such as S-video Video Out
or TV Source In connector.
Used with analog video output
connector. Provides S-video and
composite video output.
n
Location and number
of connectors may
vary by model.
n
The number and type
of cables required to
connect your PC may
vary by model. Some
cables are included
for select models
only.
Connecting the Television Signal
11
