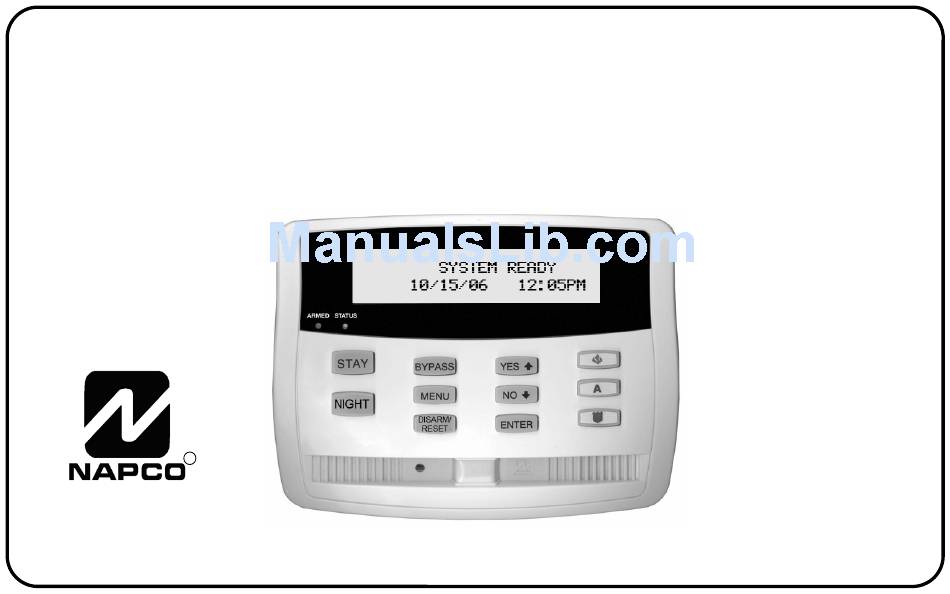

- Page 1 OPERATING GUIDE for your NAPCO FREEDOM F-64TPBR Bedroom Touchpad Home Security System Freedom F-64TPBR Touchpad © NAPCO 2006 PATENTED OI319A 9/06...
-
Page 2: Introduction
Touchpad is a “smart” interactive menu-driven system, simply press either the STAY button (if NAPCO control panels have such a wide variety Touchpad with an integral motion sensor, inte- staying within the premises) or the NIGHT button... -
Page 3: Table Of Contents
SYSTEM TROUBLE ERROR CODES......22-26 USER I-FOB LIST............. 27 FOR SERVICE, CALL: _____________________ FCC PART 68 STATEMENT ........... 28 LIMITATIONS OF THIS ALARM SYSTEM ....... 29 TO CANCEL AN NAPCO LIMITED WARRANTY......... 31 ALARM REPORT, CALL: ____________________ FCC PART 15 STATEMENT ..........33... -
Page 4: F-64Tpbr Touchpad Controls And Indicators

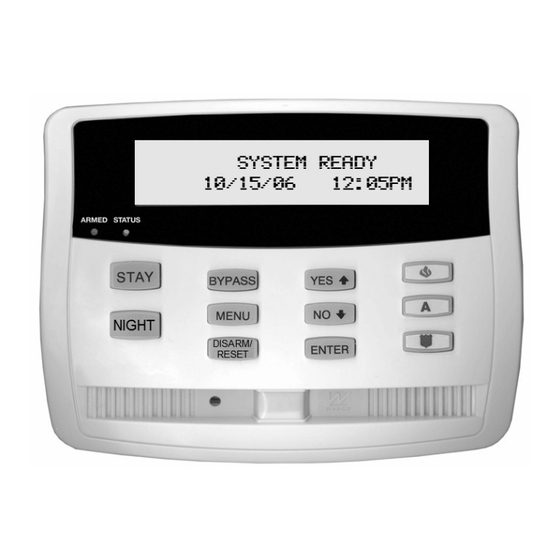

F - 6 4 T P B R T O U C H P AD C O N T R O L S & I N D I C AT O R S... - Page 5 F - 6 4 T P B R T O U C H P AD C O N T R O L S & I N D I C AT O R S LCD Window – 32 character LCD displays BYPASS Button –...
-
Page 6: Arming Stay: Protecting Yourself At Home
A R M I N G S T A Y : P R O T E C T I N G Y O U R S E L F AT H O M E Arming in the Stay mode allows you to remain home with the perimeter protection active but with the interior protection off, so that you may move freely within the premises. -
Page 7: Night Mode: Arming At Night
N I G H T M O D E : AR M I N G AT N I G H T Arming in Night mode allows you to remain home with all perimeter AND interior protection active--except for the F-64TPBR Touchpad PIR. If the F-64TPBR Touchpad is located in the bedroom, you may move about the bedroom freely. Check the Touchpad indicators. -
Page 8: Arming Stay From Night Mode
A R M I N G S T A Y F R O M N I G H T M O D E When already armed in Night mode (see page 7), you can arm in Stay mode from Night mode by simply pressing the STAY button. -
Page 9: Bypassing Faulted Zones
B Y P AS S I N G F A U L T E D Z O N E S If you are trying to arm with a faulted zone or zones, the LCD display will clearly indicate which zone(s) are faulted. If you cannot repair the zone(s), they may be temporarily removed from the system, or bypassed, using the following procedure: "... -
Page 10: Emergency Buttons
E M E R G E N C Y B U T T O N S Emergency Buttons (Only available if programmed). The Emergency Buttons, if programmed, are always active, whether the system is armed or disarmed. The Emergency Button must be Held Down for 2 seconds to activate the emergency alarm and transmit the signals to central station. Fire Emergency Hold down the Fire button to alert the central station of a fire emergency. -
Page 11: Disarming The System
D I S AR M I N G T H E S Y S T E M Disarming when home (when Armed Night or Stay): To disarm the system. press the DISARM / RESET button on the F-64TPBR Touchpad. • This function is available only when armed in the Night mode or Stay mode. •... -
Page 12: Silencing An Alarm
S I L E N C I N G A N AL AR M If an alarm occurs while you are at home: The Touchpad siren will sound and the red ARMED light will flash. The LCD display will read ALARM "ALARM". -
Page 13: Fire Protection
F I R E P R O T E C T I O N * If a fire is detected, the siren will sound a distinct pulsating tone and the LCD window will flash FIRE the word FIRE. If a Fire Alarm does occur: If a fire is in progress, evacuate the premises immediately! Call the Fire Department from an outside phone. - Page 14 F I R E P R O T E C T I O N 2. One person sounds the alarm. your alternate route through the Preparing a Fire Escape Plan 3. Each person tests his door. window. If the door is cool, brace Even with the most advanced 4.
-
Page 15: Touchpad Menu Mode
T O U C H P AD M E N U M O D E The Touchpad can provide access to a wide assortment of utility functions, each displayed on the Touchpad LCD window in a prompting “YES/NO” format. 1 To enter Touchpad Menu Mode, press MENU. 2 To skip a function, press NO. - Page 16 T O U C H P AD M E N U M O D E continue to chime when system is armed. CHANGE KEYPAD BEEP VOLUME - When the Touchpad buttons are pressed or CHANGE KEYPAD when an entry warning activates, the Touchpad beeper sounds. This function allows BEEP VOLUME the Touchpad beeper volume to be adjusted.
- Page 17 T O U C H P AD M E N U M O D E ACTIVATE FAULT FIND - Activates a multiple diagnostic test report. For installer's use ACTIVATE only. If accidentally enabled, press RESET to exit. Note: This selection only appears FAULT FIND with a Master I-FOB inserted in the Touchpad.
- Page 18 T O U C H P AD M E N U M O D E ACTIVATE DOWNLOAD - For installer's use only. If accidentally enabled, press RESET ACTIVATE to exit. Note: This feature is disabled while armed. Note: This selection only ap- DOWNLOAD pears with a Master I-FOB inserted in the Touchpad.
-
Page 19: User Program Mode
U S E R P R O G R A M M O D E User Program Mode Your Installer has programmed into your system a uniquely coded digital Master I-FOB that can be used to not only disarm the system and silence the siren, but also allows access to the User Program Mode. - Page 20 U S E R P R O G R A M M O D E to the right. 2. Repeat this process to increment (or decrement) the minute as needed. Press EN- TER move the cursor to the right and press the YES or NO buttons to toggle between "A"...
-
Page 21: User Program Mode
U S E R P R O G R A M M O D E to the system. Create a User I-FOB as follows: 1. Obtain a new I-FOB from your security professional (order part F-IFOB). 2. With “CREATE USER I-FOB Y/N” displayed in the LCD window, press "Y" and the LCD window will request to insert the new I-FOB into the Touchpad. -
Page 22: System Trouble Error Codes
S Y S T E M T R O U B L E E R R O R C O D E S Your control panel is capable of detecting a variety of troubles that may affect system performance. In the unlikely event that a problem should occur, the SYS TBL (system trouble) icon will display on the left side of Touchpad window along with one or more of the following error codes. - Page 23 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition Wireless Transmitter A problem has been detected with a wireless transmitter. Call installing company for service E04-NN Supervisory Failure E05-NN...
- Page 24 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition E10-NN Touchpad Response Failure Call installing company for service. Touchpad Tamper A keypad or Touchpad has been removed from the wall.
- Page 25 S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition E19-00 User Program Memory Call installing company for service. Error E20-00 Dealer Program Call installing company for service.
-
Page 26: System Trouble Error Codes
S Y S T E M T R O U B L E E R R O R C O D E S Trouble System Trouble Action Indication Condition E40-00 RF Self Test Failure A wireless motion sensor on the zone indicated has failed its automatic self test routine. Call installing company for service. -
Page 27: User I-Fob List
U S E R I - F O B L I S T • The space below is for recording the names of those in possession of User I-FOB's in your system. If an I-FOB is lost, be sure to delete its I-FOB number from the system (using the procedure on the previous page) as soon as possible. I-FOB Number Area Name... -
Page 28: Fcc Part 68 Statement
FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 STATEMENT This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company. -
Page 29: Limitations Of This Alarm System
WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of rea- sons. - Page 30 WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM (Cont'd) • Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect them- selves from the situation. In the case of a monitored alarm system, authorities may not respond appropriately. •...
-
Page 31: Napco Limited Warranty
In case of defect, contact the security professional who installed and maintains your security system. In order to exercise the warranty, the product must be returned by the security professional, shipping costs prepaid and insured to NAPCO. After repair or replacement, NAPCO assumes the cost of returning products under warranty. - Page 32 NAPCO is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage including incidental or consequential damages to NAPCO's original selling price of the product regardless of the cause of such loss or damage.
-
Page 33: Fcc Part 15 Statement
THE FOLLOWING STATEMENT IS REQUIRED BY THE FCC RADIO AND TELEVISION INTERFERENCE This equipment has been tested and found to comply with the limits for a Class-B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. - Page 34 NOTES...
- Page 35 NOTES...
- Page 36 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2006...
