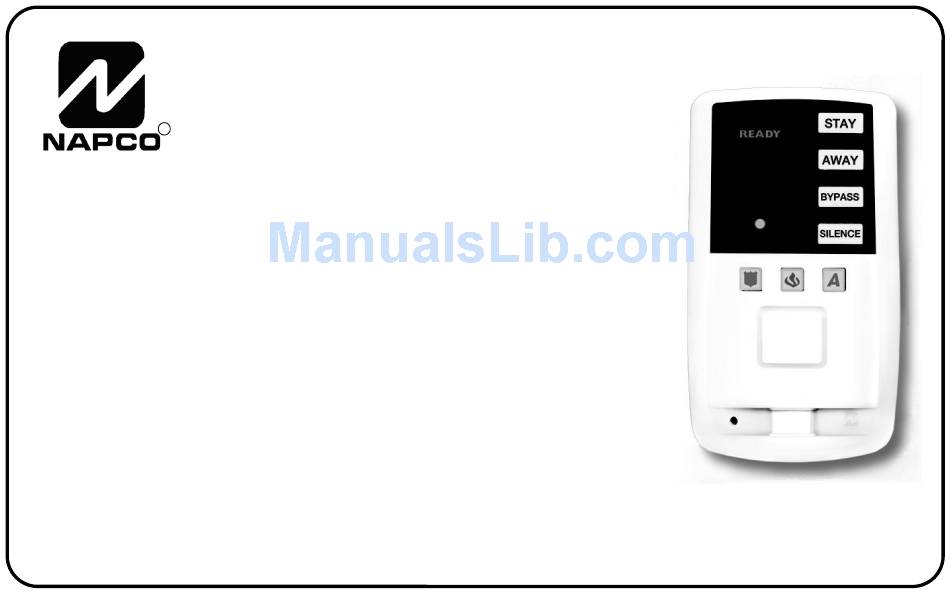

- Page 1 Using your NAPCO FREEDOM F-TPG Garage Touchpad Home Security System © NAPCO 2005 PATENTED OI309 10/05...
-
Page 2: Introduction
Congratulations on your purchase of a new Freedom Garage Door Security Sys- tem. This revolutionary new concept in residential security makes using your system easier than ever before possible, because the system uses its computerized control panel to continually monitor the status of your garage door. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ...2 TESTING THE SYSTEM ...2 GARAGE TOUCHPAD INDICATORS ...4 GARAGE TOUCHPAD CONTROLS ...5 ARMING WHEN LEAVING ...6 BYPASSING FAULTED ZONES ...7 ARMING WHEN STAYING HOME ...8 ARMING AND LEAVING WITH OTHERS STAYING ...9 EXITING WITH THE SYSTEM ALREADY ARMED ...10 EMERGENCY BUTTONS...12 DISARMING THE SYSTEM...13 SILENCING AN ALARM ...14... -
Page 4: Garage Touchpad Indicators
G AR AG E T O U C H P AD I N D I C A T O R S The green READY light shows the status of the zones in your system: ON indicates that all zones are secure and the system is ready to be armed. FLASHING indicates that at least one zone is open. -
Page 5: Garage Touchpad Controls
G AR AG E T O U C H P AD C O N T R O L S STAY Button - Press to arm system in the STAY mode. Perimeter devices such as windows and doors will be protected, while interior protective devices such as motion sensors will be de-activated, allowing free movement throughout the premises. -
Page 6: Arming When Leaving
If you are leaving with NO other family members remaining home: Check the Garage Touchpad indicators. The green READY that the system is ready to arm. • If the green READY light is BLINKING, this indicates that a zone is faulted. The READY light is blinking out the zone number of the open zone. -
Page 7: Bypassing Faulted Zones
B Y P AS S I N G F A U L T E D Z O N E S If you are trying to arm with a faulted zone or zones, the green zones. If you cannot repair the zone(s), they may be temporarily removed from the system, or bypassed, using the fol- lowing procedure: Press the BYPASS button. -
Page 8: Arming When Staying Home
Arming in the Stay mode allows you to remain home with the perimeter protection active and the interior protection off, so that you may move freely about the premises. Check the Garage Touchpad indicators. The green READY that the system is ready to arm. •... -
Page 9: Arming And Leaving With Others Staying
A R M I N G AN D L E AV I N G W I T H O T H E R S S T A Y I N G If you are arming and leaving with other family members remaining home: Check the Garage Touchpad indicators. -
Page 10: Exiting With The System Already Armed
E X I T I N G W I T H T H E S Y S T E M AL R E A D Y A R M E D If the system is Armed STAY and you are leaving with other family members remaining home: Press the STAY button on the Touchpad. - Page 11 E X I T I N G W I T H T H E S Y S T E M AL R E A D Y A R M E D If the system is Armed STAY and you are leaving with NO other family members remaining home: Press the AWAY button on the Touchpad.
-
Page 12: Emergency Buttons
Emergency Buttons (Only available if programmed). E M E R G E N C Y B U T T O N S The Emergency Buttons, if programmed, are always active, whether the system is armed or disarmed. The Emergency Button must be Held Down for 3 seconds to activate the emergency alarm and transmit the signals to central station. -
Page 13: Disarming The System
The red ARMED light will go out and the green READY light will turn on. If an alarm has occurred while you were away, the red ARMED light will be flashing and the F-TPG Touchpad sounder will be active. Proceed with caution! If you suspect that an intruder may still be in the premises, leave immediately and call authorities from a neighbor's telephone. -
Page 14: Silencing An Alarm
If an alarm occurs while you are at home: The Garage Touchpad siren will sound and the red Proceed with caution! immediately and call authorities from a neighbor's telephone. ARMED To silence the alarm, insert your F-IFOB key into the IFOB slot on the Garage Touchpad and re- move when alarm has silenced. -
Page 15: Fire Protection
If a fire is detected, the siren will sound a distinct pulsating tone and the FIRE indicator on the Ga- rage Touchpad will be flashing. If a Fire Alarm does occur: FIRE Note: This feature may not apply to your system. Consult your installer to determine if your system includes fire protection. If a fire is in progress, evacuate the premises immediately! Call the Fire Department from an outside phone. - Page 16 Preparing a Fire Escape Plan Even with the most advanced fire alarm system, adequate protection requires an escape plan. To prepare your plan, draw floor plans of your building. Show two exits - a front or back door and a window from each room.
-
Page 17: System Trouble Error Codes
Your Freedom Alarm System is constantly monitoring its own components, as well as all critical services, such as AC power and the telephone line, to insure that it is always ready to provide the protection for which it was designed. When a system trouble occurs, the Garage Touchpad will caution you with a Trouble TBL light and a beeping sounder. - Page 18 READY Flashes / Trouble Condition Flashes Touchpad beeps NONE Lost Key Mode NONE Fire Zone Trouble Wireless Receiver TBL or Touchpad TBL Wireless Receiver Jam A problem has been detected with a wireless receiver. Call for service. Wireless Transmitter Low Battery Wireless Transmitter Supervisory Failure Wireless Smoke...
-
Page 19: Zone List
The space below is for recording the descriptions of the zones in your system. • If the system has a faulted zone, count the number of zone is open and secure it (close the door or window, etc.). • If an alarm has occurred, count the number of caused the alarm: ZONE 1 ZONE 2... -
Page 20: Enrolling A New F-Ifob
The F-IFOB is a uniquely coded digital key which performs the following functions when inserted into the F-IFOB slot on the Ga- rage Touchpad: The Master F-IFOB supplied with your system will perform all of these functions, plus it may also be used to add up to 5 addi- tional F-IFOBs to the system. -
Page 21: Lost Garage Door Opener Mode
L O S T G AR AG E D O O R O P E N E R M O D E Lost Opener Mode In the event that your garage door remote control (or key that operates your garage door opener) is lost or stolen, the system may still be used by arming in the Lost Garage Door Opener Mode. -
Page 22: Fcc Part 68 Statement
FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 STATEMENT This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this infor- mation must be provided to the telephone company. -
Page 23: Limitations Of This Alarm System
WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of reasons. - Page 24 WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM (Continued) • Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect them- selves from the situation. In the case of a monitored alarm system, authorities may not respond appropriately. •...
-
Page 25: Limited Warranty
NAPCO LIMITED WARRANTY NAPCO SECURITY SYSTEMS, INC. (NAPCO) warrants its products to be free from manufacturing defects in materials and workmanship for thirty-six months following the date of manufacture. NAPCO will, within said period, at its option, repair or replace any product failing to operate correctly without charge to the original purchaser or user. This warranty shall not apply to any equipment, or any part thereof, which has been repaired by others, improperly installed, improperly used, abused, altered, damaged, subjected to acts of God, or on which any serial numbers have been altered, defaced or removed. - Page 26 written, are either merged herein or are expressly cancelled. NAPCO neither assumes, nor authorizes any other person purporting to act on its behalf to modify, to change, or to assume for it, any other warranty or liability concerning its products. In no event shall NAPCO be liable for an amount in excess of NAPCO's original selling price of the product, for any loss or damage, whether direct, indirect, incidental, consequential, or otherwise arising out of any failure of the product.
-
Page 27: Fcc Part 15 Statement
THE FOLLOWING STATEMENT IS REQUIRED BY THE FCC This equipment has been tested and found to comply with the limits for a Class-B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications. - Page 28 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2005...
