  • Page 1 Using your STAY NAPCO NIGHT BYPASS DISARM/ SILENCE FREEDOM F-TPBR Touchpad Home Security System © NAPCO 2005 PATENTED OI308 10/05...
  • Page 2: Introduction

    Press the DISARM/SILENCE button to clear the display and end the test. A subsequent press of the DISARM/SILENCE button will silence the trouble If any devices fail to respond when activated or register on the F-TPBR indication. Touchpad display as described above, call for service.
  • Page 3: Table Of Contents

    INTRODUCTION ............... 2 TESTING THE SYSTEM ........... 2 F-TPBR TOUCHPAD INDICATORS........4 IF THE ALARM IS SOUNDING: F-TPBR TOUCHPAD CONTROLS ........5 BYPASSING FAULTED ZONES ........6 To silence an alarm, in- sert your F-IFOB key into ARMING WHEN STAYING HOME ........7 the slot on the F-TPBR ARMING AT NIGHT ............
  • Page 4: F-Tpbr Touchpad Indicators

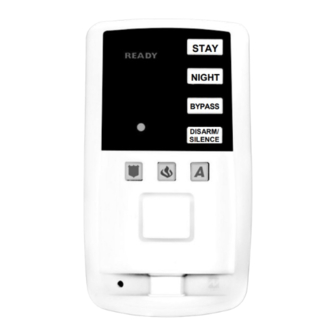

    The yellow STAY light BLINKING indicates that the system is armed in the NIGHT mode, allow- FIRE ing free movement only in the vicinity of the F-TPBR Touchpad, while maintaining perimeter pro- tection. The yellow STAY light STEADY indicates Armed Stay, with all interior protection off, all perimeter protection on.
  • Page 5: F-Tpbr Touchpad Controls

    To test the system, hold down the BYPASS button for 4 seconds to generate a test report to central station and chirp the siren. If the test fails, the F-TPBR Touchpad will beep and the trouble light (TBL) will flash. Hold down BYPASS for 8 seconds to do a “system walk test”...
  • Page 6: Bypassing Faulted Zones

    Press the BYPASS button. The F-TPBR Touchpad will beep and the yellow Trouble indicator will light ON STEADY. Press either the STAY or NIGHT button. Warning: Bypassed zones are unprotected. If a faulted zone cannot be secured, have the system checked as soon as...
  • Page 7: Arming When Staying Home

    Arming in the Stay mode allows you to remain home with the perimeter protection active and the interior protection off, so that you may move freely about the premises. Check the F-TPBR Touchpad indicators. The green light should be ON-STEADY, indicating...
  • Page 8: Arming At Night

    Arming in the Night mode allows you to remain home with all perimeter AND interior protection active--except for the F- TPBR Touchpad PIR. If the F-TPBR Touchpad is located in the bedroom, you may move about the bedroom freely. Check the F-TPBR Touchpad indicators. The green...
  • Page 9: Emergency Buttons

    E M E R G E N C Y B U T T O N S Emergency Buttons (Only available if programmed). The Emergency Buttons, if programmed, are always active, whether the system is armed or disarmed. The Emergency Button must be Held Down for 3 seconds to activate the emergency alarm and transmit the signals to central station.
  • Page 10: Disarming The System

    The system may also be disarmed at any time with the F-IFOB. To disarm the system, insert your F-IFOB key into the IFOB slot on the F-TP Touchpad or F-TPBR Touchpad and remove when the system is disarmed.
  • Page 11: Silencing An Alarm

    Proceed with caution! If you suspect that an intruder may still be in the premises, leave immediately and call authorities from a neighbor's telephone. ARMED To silence the alarm, insert your F-IFOB key into the IFOB slot on the F-TP Touchpad or F-TPBR Touchpad and remove when alarm has silenced. The red light will continue to flash the number of the zone(s) on which the alarm occurred.
  • Page 12: Fire Protection

    Note: This feature may not apply to your system. Consult your installer to determine if your system includes fire protection. If a fire is in progress, evacuate the premises immediately! Call the Fire Department from an outside phone. If there is no evidence of a fire, press DISARM/SILENCE OR insert your F-IFOB key into the F-TPBR Touchpad.
  • Page 13 F I R E P R O T E C T I O N 2. One person sounds the alarm. your alternate route through the Preparing a Fire Escape Plan 3. Each person tests his door. window. If the door is cool, brace Even with the most advanced 4.
  • Page 14: System Trouble Error Codes

    DISARM/SILENCE again to scroll to the next trouble, and again to exit the VIEW TROUBLE mode. The Trouble TBL light will remain pulsing as a reminder if the trouble is still present. NOTE: If F-TPBR Touchpad siren chirps once every 10 seconds, call for service.
  • Page 15 SYSTEM TROUBLE ERROR CODES Flashes / READY Trouble Condition Action Flashes Touchpad beeps This is a reminder that the system has been put into the lost key mode ([STAY] & [AWAY] pressed simultaneously). While in this mode, the system can only be disarmed NONE Lost Key Mode with your F-IFOB.
  • Page 16: Zone List

    ZONE LIST The space below is for recording the descriptions of the zones in your system. • If the system has a faulted zone, count the number of light flashes and refer to the list below to see which READY zone is open and secure it (close the door or window, etc.).
  • Page 17: Fcc Part 68 Statement

    FEDERAL COMMUNICATIONS COMMISSION (FCC) Part 68 STATEMENT This equipment complies with Part 68 of the FCC rules. On the front cover of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.
  • Page 18: Limitations Of This Alarm System

    WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM While this system is an advanced design security system, it does not offer guaranteed protection against burglary or fire or other emergency. Any alarm system, whether commercial or residential, is subject to compromise or failure to warn for a variety of rea- sons.
  • Page 19 WARNING! THE LIMITATIONS OF THIS ALARM SYSTEM (Cont'd) • Even if the system responds to the emergency as intended, however, occupants may have insufficient time to protect them- selves from the situation. In the case of a monitored alarm system, authorities may not respond appropriately. •...
  • Page 20: Limited Warranty

    In case of defect, contact the security professional who installed and maintains your security system. In order to exercise the warranty, the product must be returned by the security professional, shipping costs prepaid and insured to NAPCO. After repair or replacement, NAPCO assumes the cost of returning products under warranty.
  • Page 21 NAPCO is not an insurer of either the property or safety of the user's family or employees, and limits its liability for any loss or damage including incidental or consequential damages to NAPCO's original selling price of the product regardless of the cause of such loss or damage.
  • Page 22: Fcc Part 15 Statement

    THE FOLLOWING STATEMENT IS REQUIRED BY THE FCC RADIO AND TELEVISION INTERFERENCE This equipment has been tested and found to comply with the limits for a Class-B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio-frequency energy and, if not installed and used in accordance with the instruc- tions, may cause harmful interference to radio communications.
  • Page 23 NOTES...
  • Page 24 333 Bayview Avenue Amityville, New York 11701 For Sales and Repairs, (800) 645-9445 For Technical Service, (800) 645-9440 Publicly traded on NASDAQ Symbol: NSSC © NAPCO 2005...
