NAPCO Commercial GEMC Brochure

24V Addressable &
Conventional Fire

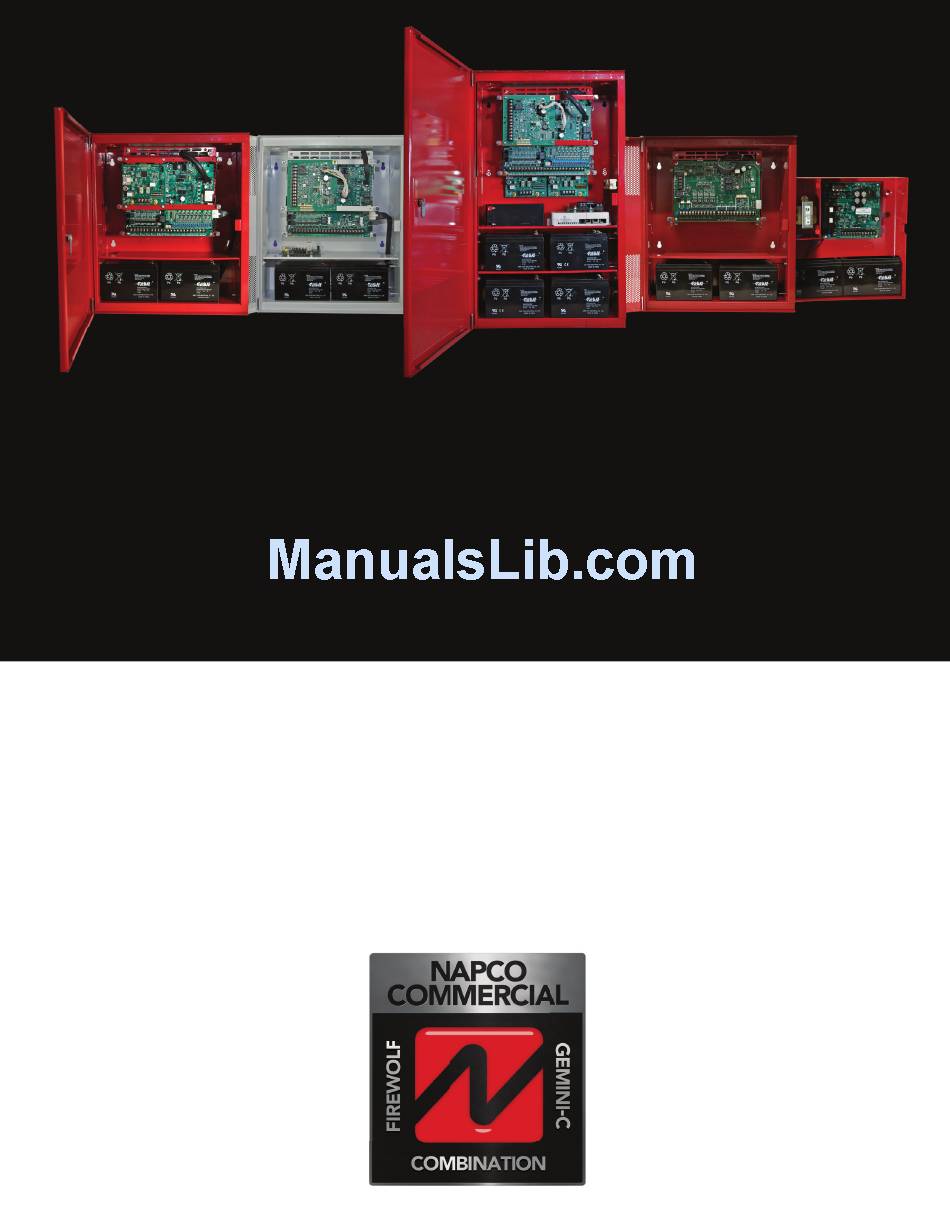

Introducing the all new
Napco Commercial Platform:
The most powerful, feature-rich platform for 24V commercial
fi re, burglary or combination burglary/fi re, supporting up to 255
zones using all-new fi re and burglary devices in hardwire, wireless,
Firewolf 24V Commercial Intelligent
Addressable Fire Panel, NFPA72-compliant,
up to 96 outputs, 4 onboard NACs (6.5A
total), expandable to 24, built in Sync/
Strobe/Horn Module (System Sensor &
Wheelock) and dual line DACT plus optional
TCP/IP reporting. Features remote Smoke
Obscuration Reporting. Nearly a mile., max.
wire run – any wire type –ideal for retrofi ts.
Also supports legacy and conventional (12V)
devices, too and more of them per loop!
Powerful battery capacity up to 32Ah total.
Gemini-C Commercial Addressable/
Conventional 255-Zone Burglary System;
Supports full line of new GEMC Commercial-
rated conventional, addressable or wireless
devices simultaneously on from 8 to 255
zones, with partitioning. UL Merchantile.
GEM-C Combination Burglary/Access/
Fire System; UL 864, 9th Edition
commercial Burg./Access and Fire buses
and option for separate burg/access
battery backups-- easy calcs., ideal for
AHJs. No costly extra Bus Isolator or Loop
Isolator modules required! Integrates with
GeminiAccess ACM Module. Uses familiar
Quickloader Up/downloading and Gemini
style keypads in burglary or fi re models.
Addressable /
Conventional 255-Zone
Merchantile Burglary
conventional & addressable technologies
More zones – 255, 128 or 32 points
✔
More power – 7 amps
✔
More NAC's – Up to 4 on board
✔
Built in strobe/horn synch
✔
More standby power
✔
32 Amp hour battery capacity
✔
Regulated 24V output
✔
NAC Extender
4 onboard NACs with up to 2A ea; up to
16Ah total battery capacity. Easily distributes
synched bell and strobe outputs with built
in module. Monitors AC, battery trouble,
tamper and ground fault on Napco bus or
provides universal FACP support.
Isolated
Combination
Burglary/Access & Fire
32, 128 & 255 Points
provides nearly 7A and
Universal NAC
Auxiliary Power
Extender
Regulated Auxiliary Power Supplies
Commercial burglary or fi re, 12V regulated
2A models (fi re shown); or 1.75A version
with plug-in transformer. Backward
compatible with all Gemini Panels. Alarm
panel supervised power option. Ideal for
simultaneous powering of CCTV cameras.
Firewolf Advanced Analog Addressable
Commercial Fire Devices
support auto-drift
compensation and maintenance alert function
Gemini-C Addressable Commercial
Burglary Devices
permit longest loop length,
upto 10,000 feet; no repeaters necessary!
Gemini-C New UL Commercial Wireless
Line
with supervised tamper & automatic,
continuously supervised signal strength
(requires no manual test activation).
Gemini-C Burglary & Firewolf Menu-Driven
Custom Alpha Keypads
Familiar Napco
ez-programming. Keypads mount anywhere
on the bus. Burg model with integral
4-zone EZM.
Compliances - NFPA 72, UL Commercial
Fire, UL864 9th Ed., SIA CP01, UL985. UL
household & commercial burg.: UL1610,
UL609, UL365, UL1023 (CSFM, FM, MEA
listings pending.)
Regulated
Supplies
