level that is free of distortion.
N
4. If there is minimal distortion, but greater volume is
required, turn the Mic Gain potentiometer clockwise
(towards the 75 dB mark) to increase the volume, but not
past the point where distortion occurs.

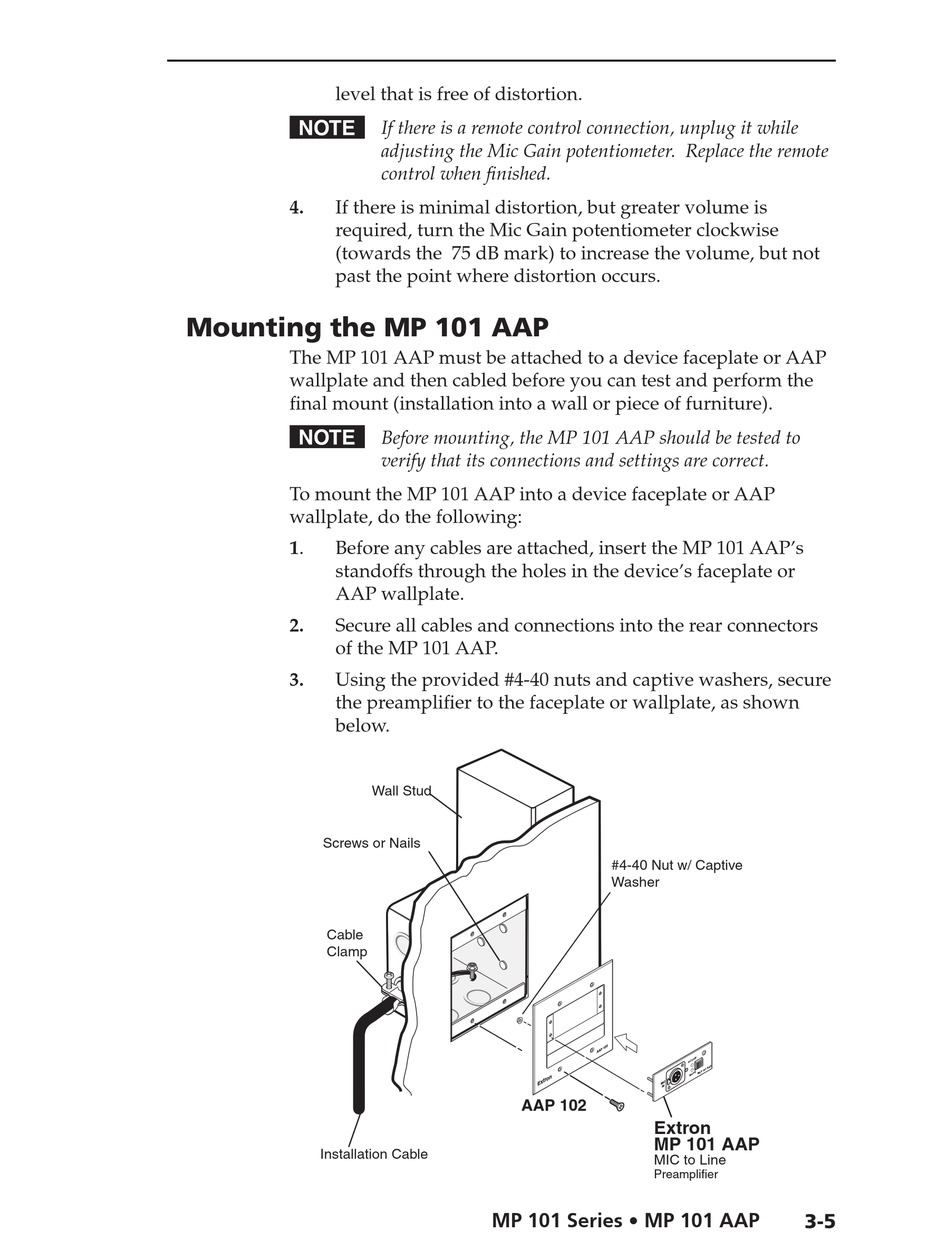

Mounting the MP 101 AAP

The MP 101 AAP must be attached to a device faceplate or AAP
wallplate and then cabled before you can test and perform the
fi nal mount (installation into a wall or piece of furniture).
N
To mount the MP 101 AAP into a device faceplate or AAP
wallplate, do the following:
1. Before any cables are attached, insert the MP 101 AAP's
standoffs through the holes in the device's faceplate or
AAP wallplate.
2. Secure all cables and connections into the rear connectors
of the MP 101 AAP.
3. Using the provided #4-40 nuts and captive washers, secure
the preamplifi er to the faceplate or wallplate, as shown
below.
Screws or Nails
Cable
Clamp
Installation Cable
If there is a remote control connection, unplug it while
adjusting the Mic Gain potentiometer. Replace the remote
control when fi nished.
Before mounting, the MP 101 AAP should be tested to
verify that its connections and settings are correct.
Wall Stud
n
t r o
E x
AAP 102
MP 101 Series • MP 101 AAP
#4-40 Nut w/ Captive
Washer
0 2
P 1
A A
E
T IV
A C
P
A A
0 1
P 1
T E M L
M U
M IC
IN
Extron
MP 101 AAP
MIC to Line
Preamplifier
3-5
