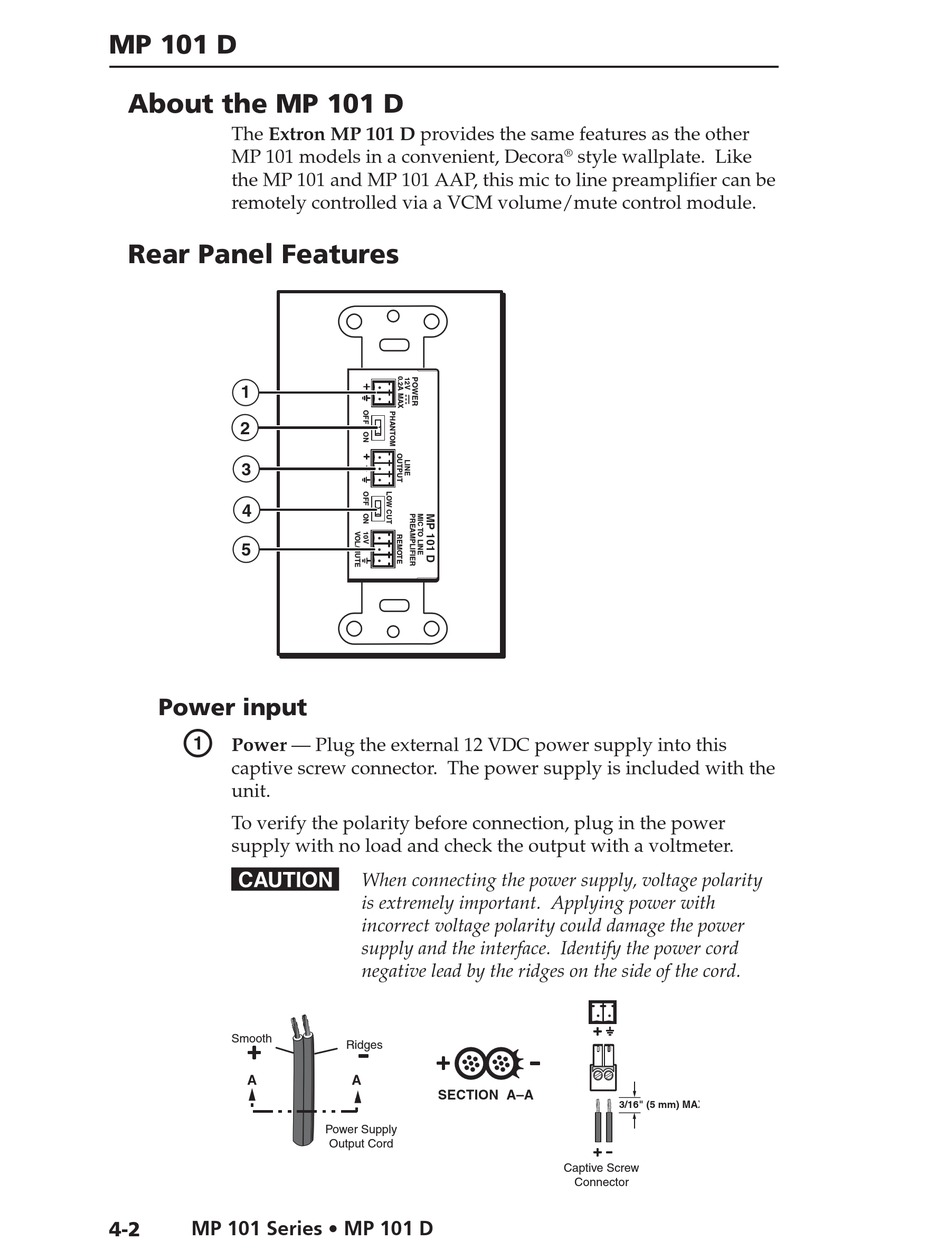

MP 101 D
About the MP 101 D
The Extron MP 101 D provides the same features as the other
MP 101 models in a convenient, Decora
the MP 101 and MP 101 AAP, this mic to line preamplifi er can be
remotely controlled via a VCM volume/mute control module.
Rear Panel Features
1
2
3
4
5
Power input
a
Power — Plug the external 12 VDC power supply into this
captive screw connector. The power supply is included with the
unit.
To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.
C
Smooth
A
MP 101 Series • MP 101 D
4-2
When connecting the power supply, voltage polarity
is extremely important. Applying power with
incorrect voltage polarity could damage the power
supply and the interface. Identify the power cord
negative lead by the ridges on the side of the cord.
Ridges
A
SECTION A–A
Power Supply
Output Cord
®
style wallplate. Like
3/16" (5 mm) MAX
Captive Screw
Connector
