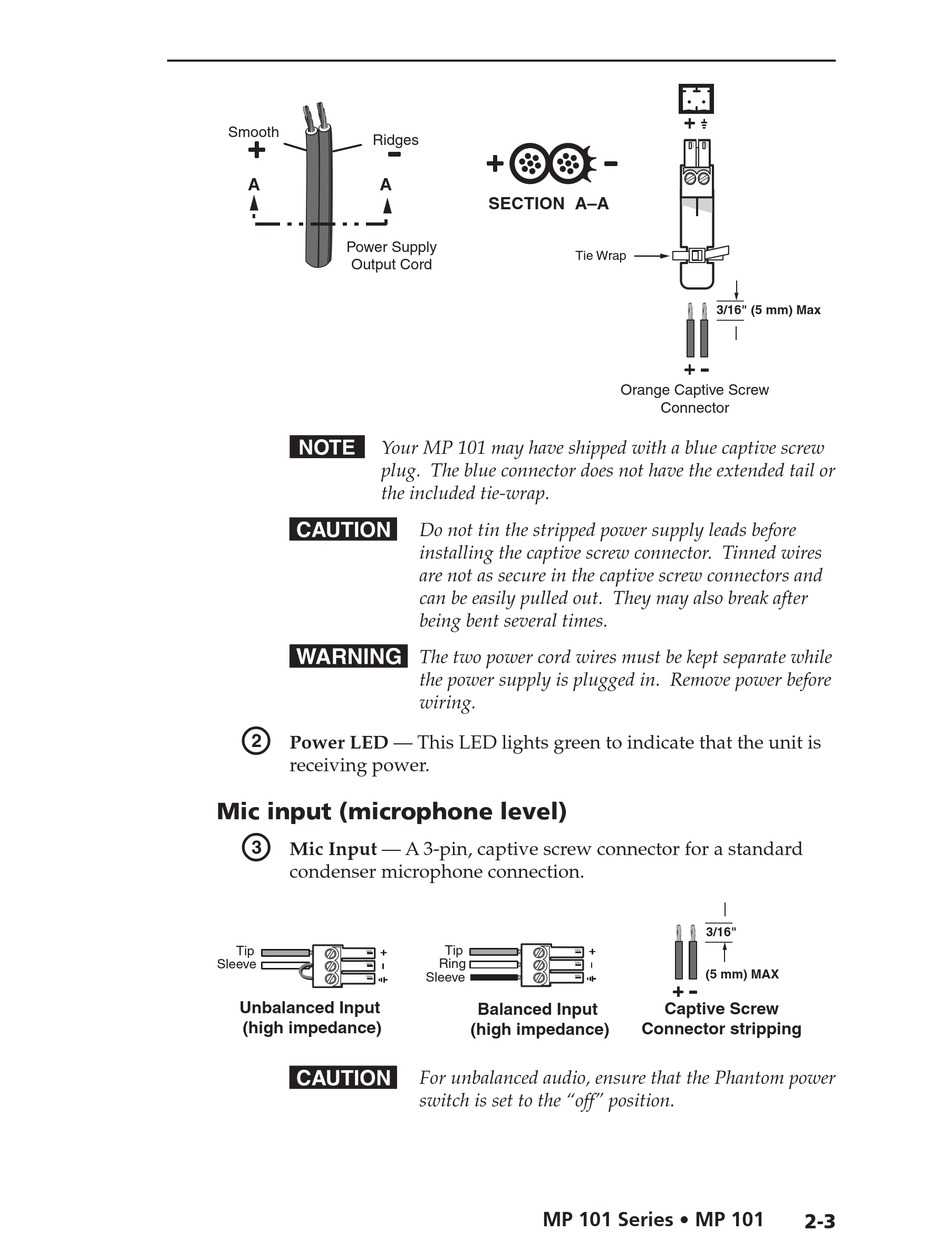

Smooth
Ridges
A A
Power Supply
Output Cord
N
Your MP 101 may have shipped with a blue captive screw
plug. The blue connector does not have the extended tail or
the included tie-wrap.
C
W
b
Power LED — This LED lights green to indicate that the unit is
receiving power.
Mic input (microphone level)
c
Mic Input — A 3-pin, captive screw connector for a standard
condenser microphone connection.
Tip
Sleeve
Unbalanced Input
(high impedance)
C
SECTION A–A
Tie Wrap
Do not tin the stripped power supply leads before
installing the captive screw connector. Tinned wires
are not as secure in the captive screw connectors and
can be easily pulled out. They may also break after
being bent several times.
The two power cord wires must be kept separate while
the power supply is plugged in. Remove power before
wiring.
Tip
Ring
Sleeve
Balanced Input
(high impedance)
For unbalanced audio, ensure that the Phantom power
switch is set to the "off" position.
MP 101 Series • MP 101
3/16" (5 mm) Max
Orange Captive Screw
Connector
3/16"
(5 mm) MAX
Captive Screw
Connector stripping
2-3
